Chapter 10 355
Data Output
Saving and Recalling Instrument State
10. Data Output
Saving Instrument State
Follow the procedure below to save internal data from the E5070B/E5071B.
Step 1. Press .
Step 2. Press Save State.
Step 3. When you want to use a pre-defined file name (State01.sta - State08.sta,
Autorec.sta)
Press State01 - State08 or Autorec.
NOTE If “A:\Autorec.sta” or “D:\Autorec.sta” is found on the system at startup, the
E5070B/E5071B is automatically configured using the saved settings. When both files are
found, “A:\Autorec.sta” is recalled. To disable the auto recall function, delete the
Autorec.sta files.
NOTE An asterisk (*) in the upper right of the softkey indicates that the corresponding file of the
softkey already exists. If you save into the existing file, the existing file is copied as
“backup.sta” and then overwritten.
When you want to use another file name or a file name on the floppy disk
1. Press File Dialog... to open the Save As dialog box. Figure 10-1 illustrates the Save As
dialog box.
2. Select the folder and input a file name using the external keyboard and mouse.
3. Click Save

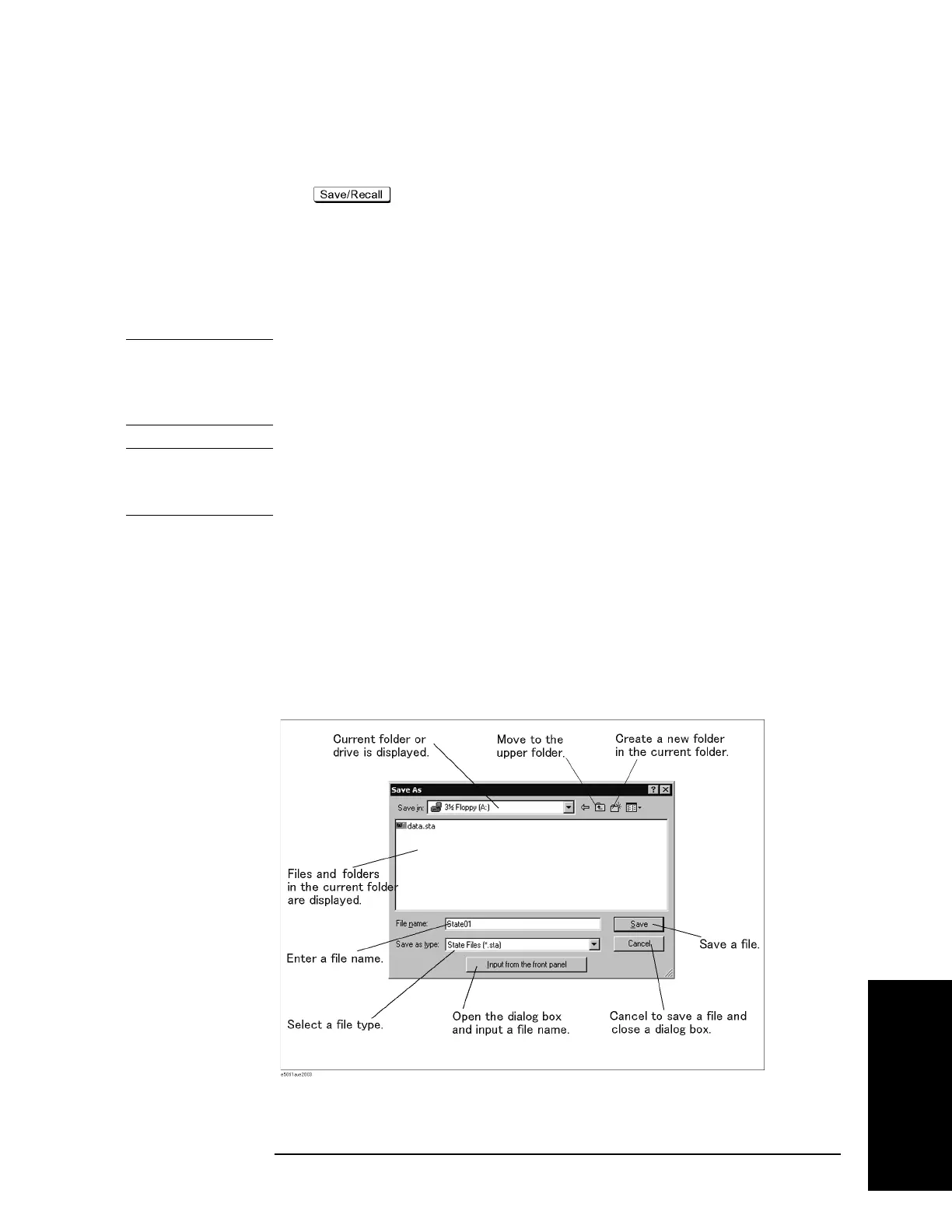

Figure 10-1 Save As dialog box
