Limit Test
Limit Test
11. Limit Test

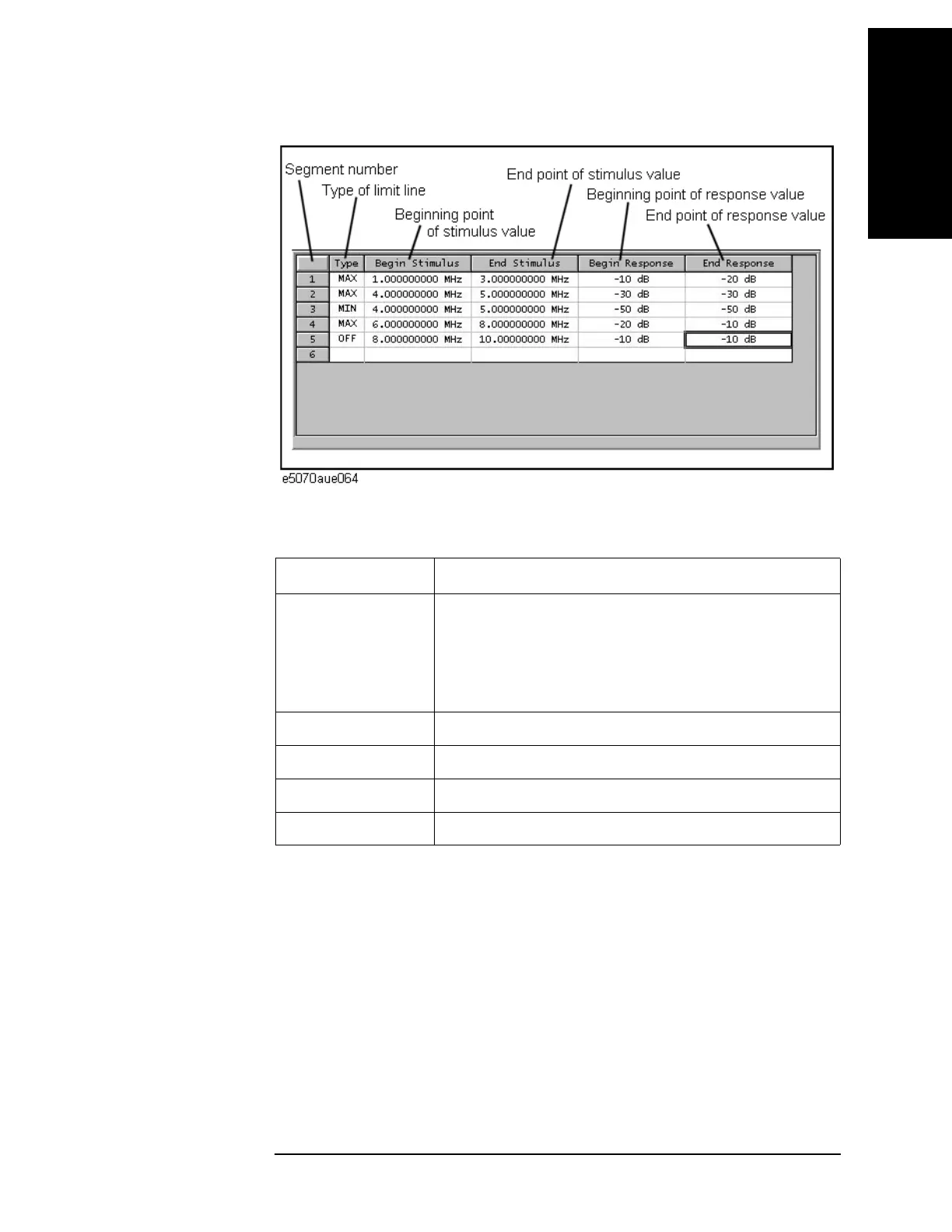

Figure 11-3 Limit table
Step 6. Press Add to add a segment to the limit table and then specify the segment parameter
values shown below.
Segment Parameter Description
Type Select the type of segment from the following:
OFF Segment not used for the limit test
MIN Segment at which the minimum is specified
MAX Segment at which the maximum is specified
Begin Stimulus
*1*2
*1.The range in which stimulus values can be specified is from -500 G to +500 G. When a
value outside the range is entered, a suitable value within the range is specified.
*2.Once the stimulus value is specified, changing the sweep range of the E5070B/E5071B
does not affect the stimulus value.
Specify starting point for stimulus value on the limit line
End Stimulus
*1*2
Specify ending point for stimulus value on the limit line
Begin Response
*3*4
*3.The range in which response values can be specified is from -500 M to +500 M. When a
value outside this range is entered, a suitable value within the range is specified.
*4.After the response value is specified, changing formats results in changing the units but
not the value.
Specify starting point for response value on the limit line
End Response
*3*4
Specify ending point for response value on the limit line
