Chapter 15 503
Measurement Examples
Evaluating a Duplexer
15. Measurement Examples
Step 2. Turn on the limit line and limit test for Trace 2.
Setup Description Key Operation
Activating Trace 2
Limit Line: ON Limit Line (Turn it ON)
Limit Test: ON Limit Test (Turn it ON)
Step 3. Apply a trigger to execute the measurement.
Setup Description Key Operation
Trigger Mode: Single
- Single (or Continuous)

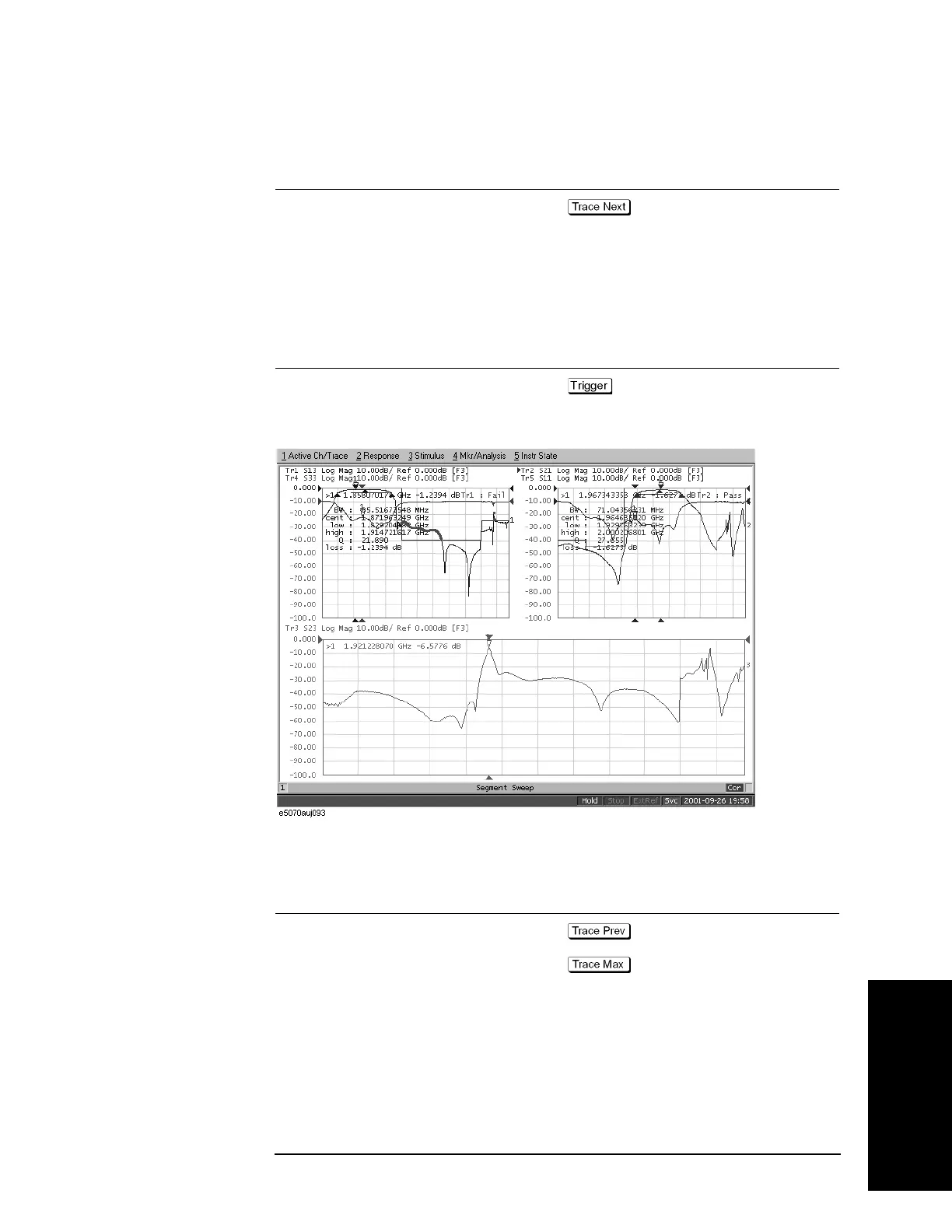

Figure 15-18 Limit test results
Step 4. Maximize the screen display of Trace 1 to examine its details.
Setup Description Key Operation
Activating Trace 1
Maximizing the display of Trace 1
