504 Chapter 15

Measurement Examples

Evaluating a Duplexer

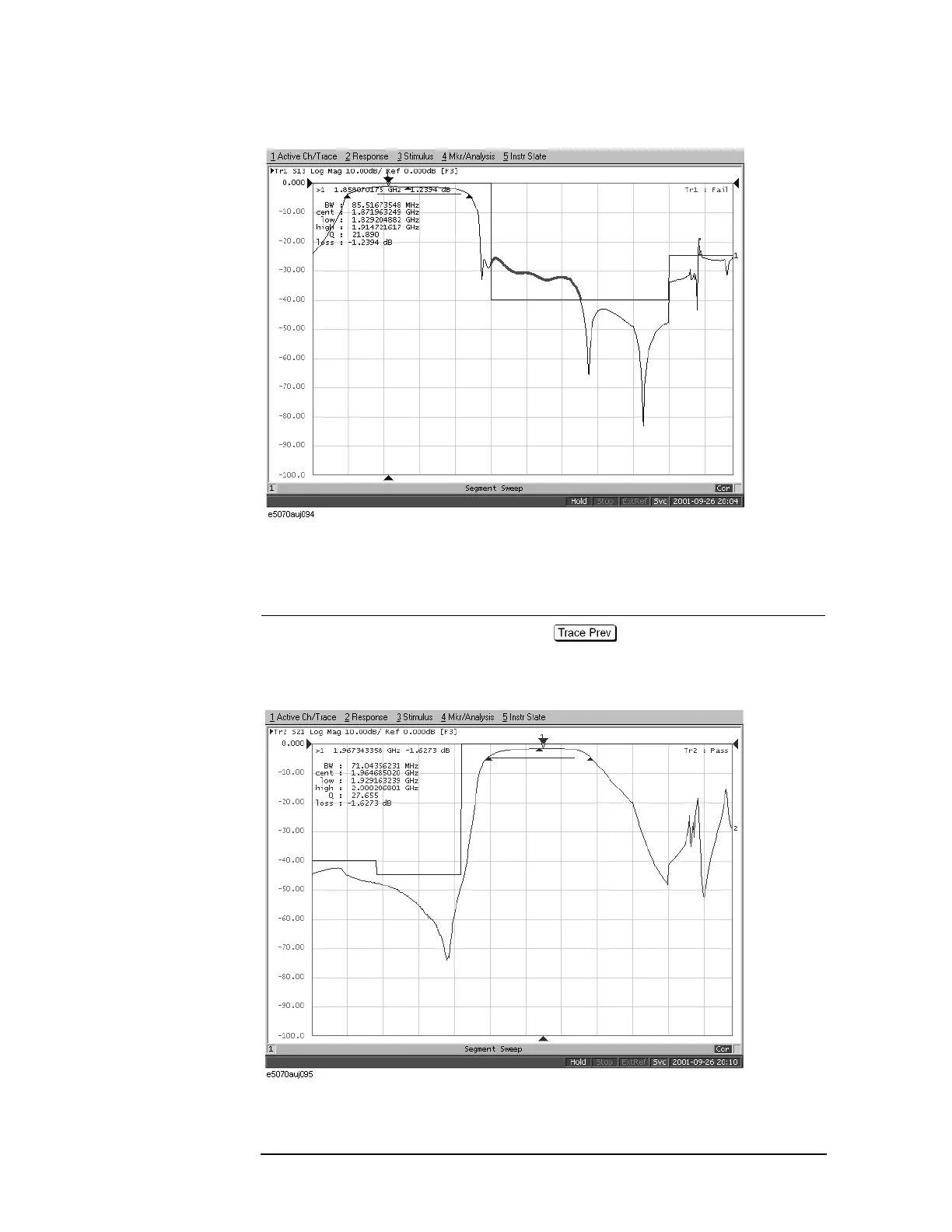

Figure 15-19 Enlarged display of trace 1

Step 5. Maximize the screen display of Trace 2 to examine its details.

Setup Description Key Operation

Activating Trace 2

(The display of Trace 2 is

maximized.)

Figure 15-20 Enlarged display of trace 2
