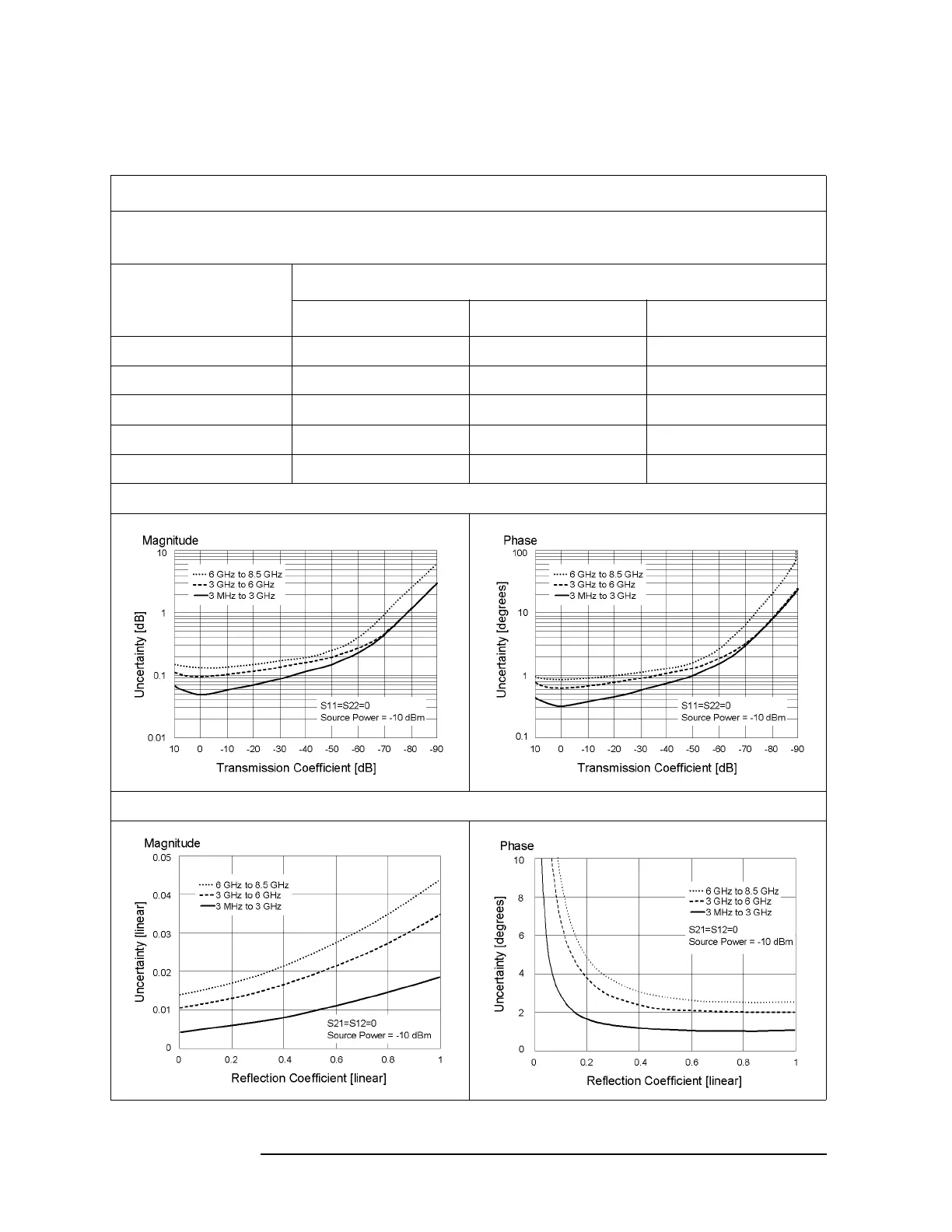

Table 16-2 Corrected System Performance With Type-N Device Connectors, 85032F

Calibration Kit

Network analyzer: E5070B/E5071B, Calibration kit: 85032F (Type-N, 50 Ω), Calibration: full 2-port

IF bandwidth = 10 Hz, No averaging applied to data, Environmental temperature = 23°C±5°C with <1°C deviation

from calibration temperature, Isolation calibration not omitted

Description

Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 49 40 38

Source Match 41 36 35

Load Match 49 40 37

Reflection Tracking ±0.011 ±0.032 ±0.054

Transmission Tracking ±0.016 ±0.062 ±0.088

Transmission Uncertainty (Specification)

Reflection Uncertainty (Specification)

536 Chapter 16

Specifications and Supplemental Information

Corrected System Performance
