Table 16-3 Corrected System Performance With Type-N Device Connectors, 85092C

Electronic Calibration Module

Network analyzer: E5070B/E5071B, Calibration module: 85092C (Type-N, 50 Ω) electronic calibration (ECal)

module, Calibration: full 2-port

IF bandwidth = 10 Hz, No averaging applied to data, Environmental temperature = 23°C±5°C with <1°C deviation

from calibration temperature, Isolation calibration not omitted

Description

Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 52 52 47

Source Match 45 41 36

Load Match 47 44 39

Reflection Tracking ±0.040 ±0.060 ±0.070

Transmission Tracking ±0.039 ±0.069 ±0.136

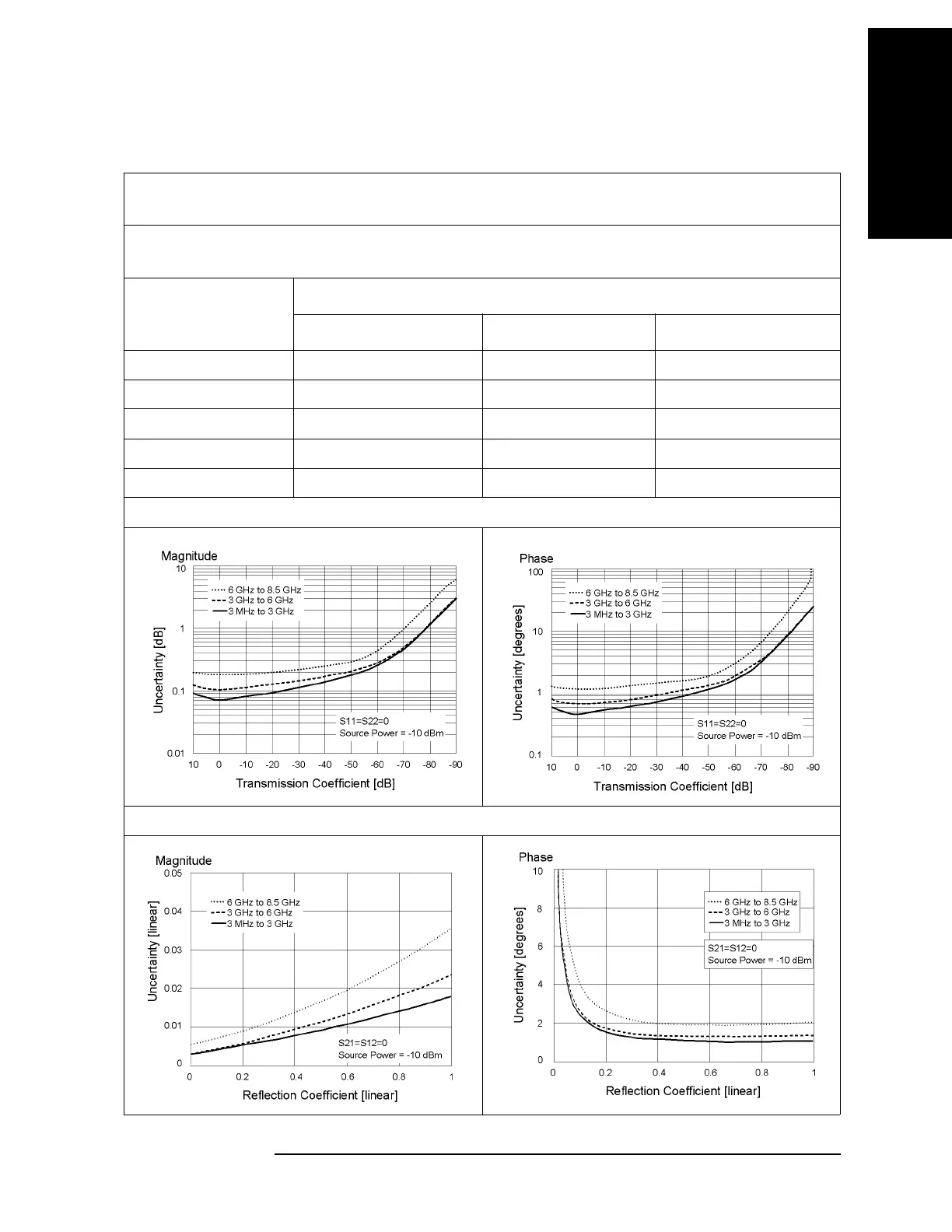

Transmission Uncertainty (Specification)

Reflection Uncertainty (Specification)

Chapter 16 537

Specifications and Supplemental Information

Corrected System Performance
