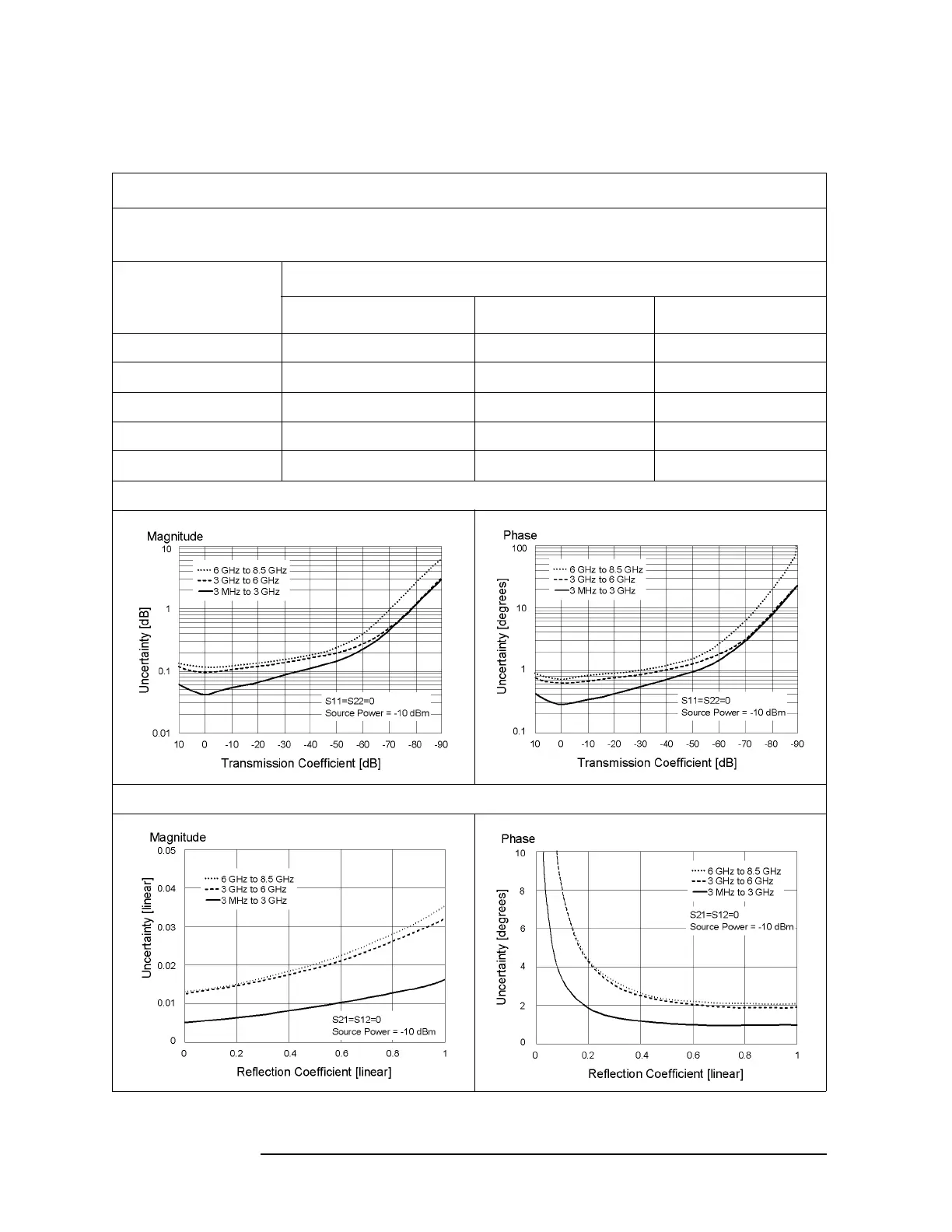

Table 16-4 Corrected System Performance With 3.5 mm Device Connector Type, 85033E

Calibration Kit

Network analyzer: E5070B/E5071B, Calibration kit: 85033E (3.5 mm, 50 Ω), Calibration: full 2-port

IF bandwidth = 10 Hz, No averaging applied to data, Environmental temperature = 23°C±5°C with <1°C deviation

from calibration temperature, Isolation calibration not omitted

Description

Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 46 38 38

Source Match 43 37 36

Load Match 46 38 38

Reflection Tracking ±0.006 ±0.009 ±0.010

Transmission Tracking ±0.016 ±0.065 ±0.079

Transmission Uncertainty (Specification)

Reflection Uncertainty (Specification)

538 Chapter 16

Specifications and Supplemental Information

Corrected System Performance
