Table 16-5 Corrected System Performance With 3.5 mm Device Connector Type, 85093C

Electronic Calibration Module

Network analyzer: E5070B/E5071B, Calibration module: 85093C (3.5 mm, 50 Ω) electronic calibration (ECal)

module, Calibration: full 2-port

IF bandwidth = 10 Hz, No averaging applied to data, Environmental temperature = 23°C±5°C with <1°C deviation

from calibration temperature, Isolation calibration not omitted

Description

Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 52 51 47

Source Match 44 39 34

Load Match 47 44 40

Reflection Tracking ±0.030 ±0.050 ±0.070

Transmission Tracking ±0.039 ±0.069 ±0.117

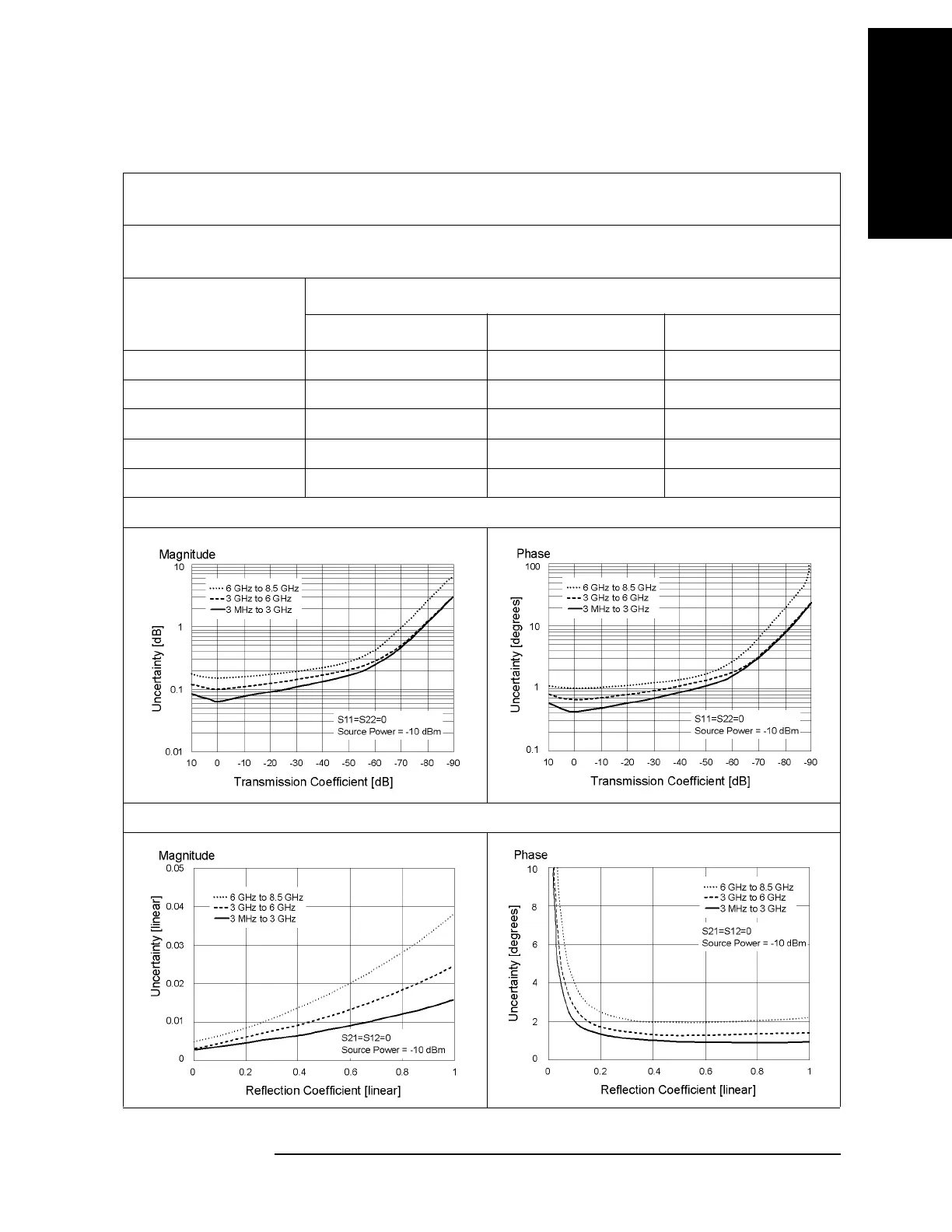

Transmission Uncertainty (Specification)

Reflection Uncertainty (Specification)

Chapter 16 539

Specifications and Supplemental Information

Corrected System Performance
