Chapter 16 553

Specifications and Supplemental Information

General Information

16. Specifications and

Supplemental Information

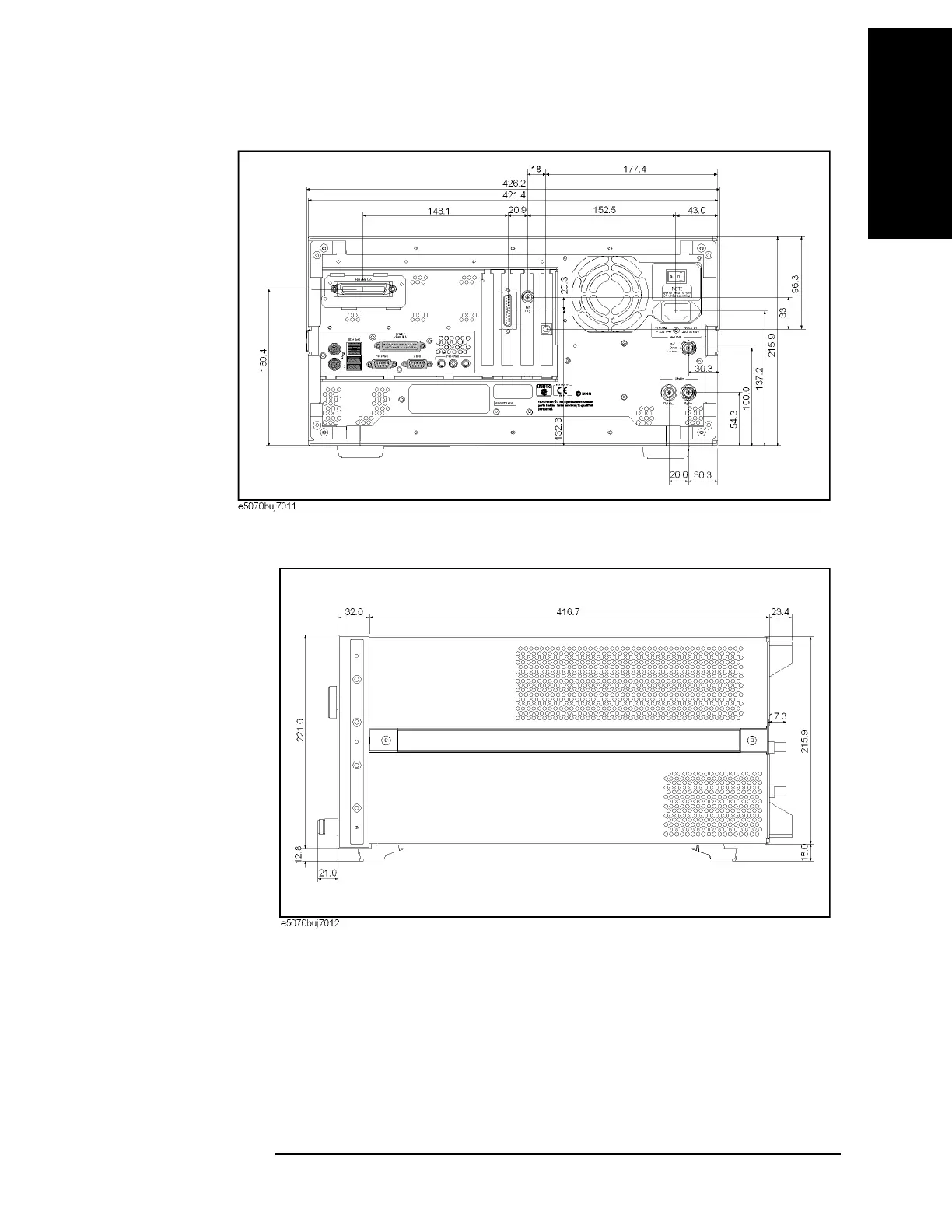

Figure 16-4 Dimensions (rear view, with Option 1E5, in millimeters, nominal)

Figure 16-5 Dimensions (side view, in millimeters, nominal)
