Parameter descriptions
Reference Frequency Source 1 475
Reference Frequency Source 2 492
2502 -
PLC Output Frequency 2
Frequency output 2 of a PLC function block is the refer-
ence value source. See application manual "PLC".
The reference frequency channel can be used in all configurations (parameter
Configuration 30).
Block diagram

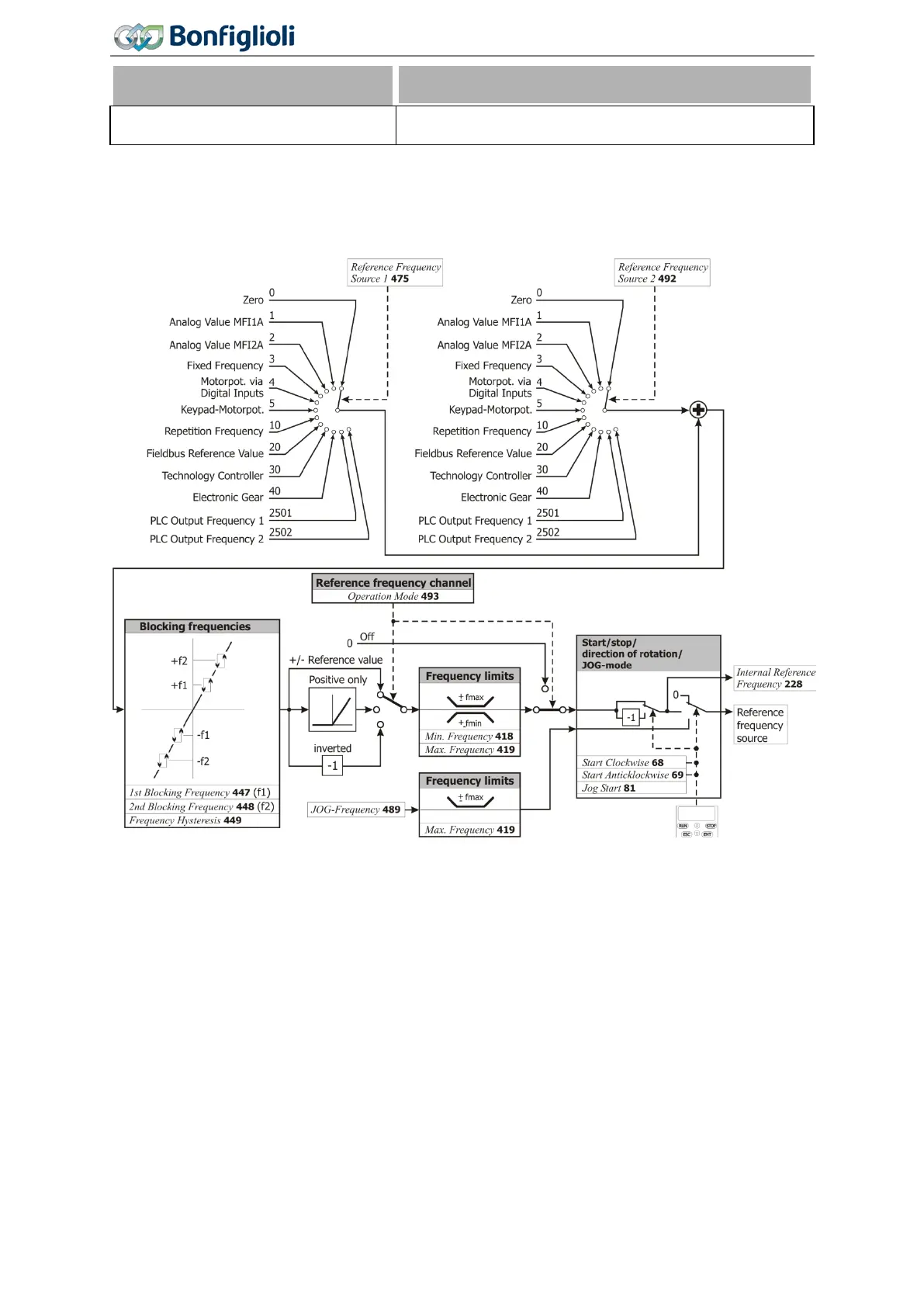

The block diagram shows the reference frequency specification options.
Lock the reference value facilities of the control panel
If the setting possibility of the reference frequency at the operator panel must be locked:
• For parameter
Reference Frequency Source 1 475 the setting “5 - Keypad-Motorpot.” must not be
selected and
• for parameter
Reference Frequency Source 2 492 the setting “5 - Keypad-Motorpot.” must not be
selected.
• Set parameter
Set Password 27 to prevent the resetting of parameters. Refer to chapter 7.1.3
“Set password”.
