BONFIGLIOLI Agile User Manual

Parameter descriptions

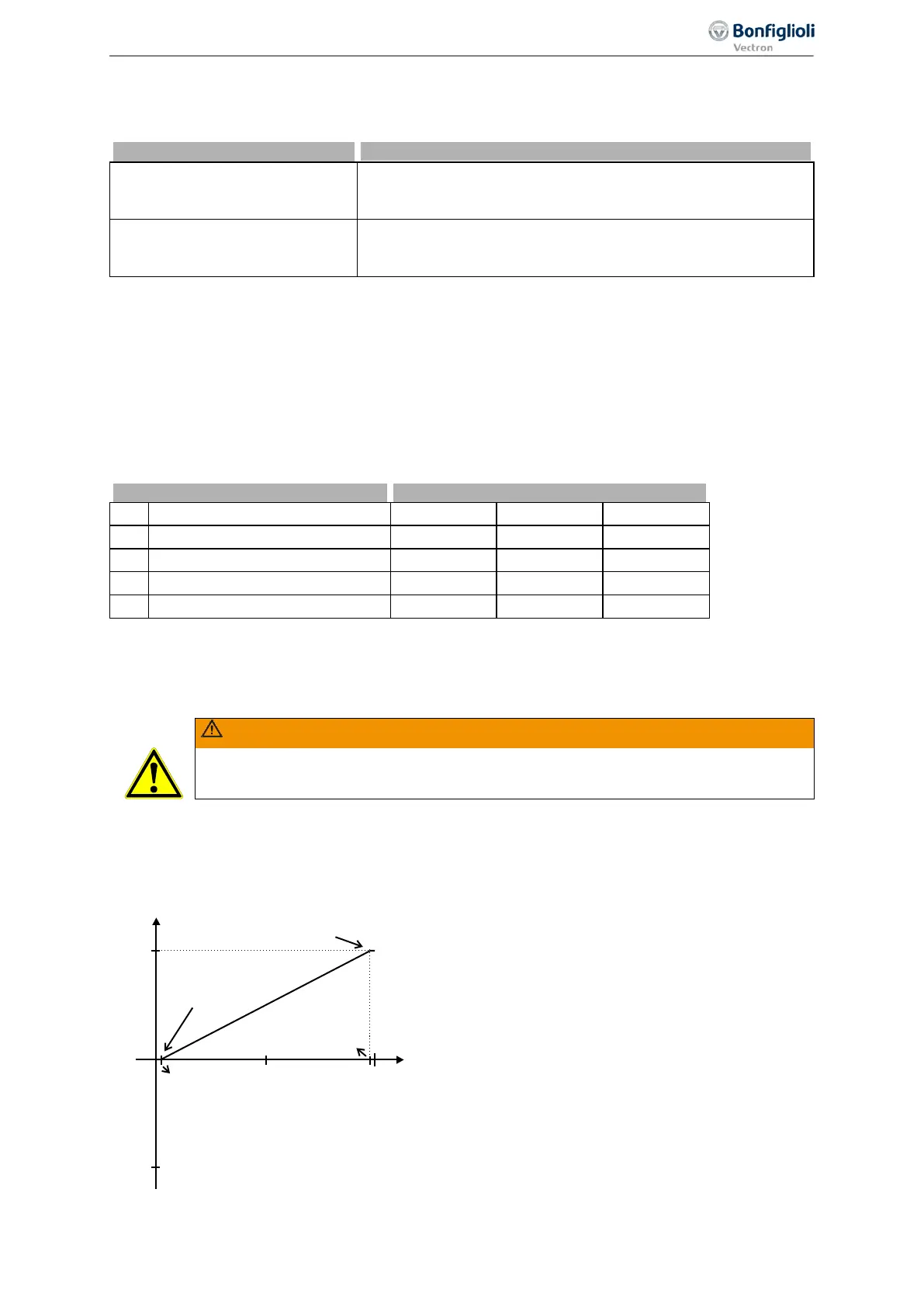

7.6.2.1.2 Voltage input characteristic and current input characteristic
For parameter
Operation Mode MFI2 562, "6 - Voltage, characteristic" or "7 - Current, characteristic"
must be selected.
Operation Mode MFI2 562
Function
6 - Voltage, characteristic
Voltage signal (MFI2A), 0 V ... 10 V. The output signal is influ-
enced by the set characteristic. The characteristic can be set via
parameters 564 … 567.
7 - Current, characteristic
Current signal (MFI2A) 0 mA … 20 mA. The output signal is in-
fluenced by the set characteristic. The characteristic can be set
via parameters 564 … 567.
564 Characteristic Curve Point X1
565 Characteristic Curve Point Y1
566 Characteristic Curve Point X2
567 Characteristic Curve Point Y2
The analog input signal is mapped to a reference frequency or percentage. Parameterization can be
done via two points of the linear characteristic of the reference value channel.
Point 1 with coordinates X1 and Y1 and point 2 with coordinates X2 and Y2 can be set in four data
sets.
Parameters
Setting
No. Description Min. Max. Fact. sett.
564 Characteristic Curve Point X1 0.00% 100.00% 2.00%
565 Characteristic Curve Point Y1 -100.00% 100.00% 0.00%
566
Characteristic Curve Point X2
0.00%
100.00%
98.00%
567 Characteristic Curve Point Y2 -100.00% 100.00% 100.00%
The coordinates of the points relate, as a percentage, to the analog signal with 10 V or 20 mA and
parameter
Maximum Frequency 419 or parameter Maximum Reference Percentage 519. The direc-
tion of rotation can be changed via the digital inputs and/or by selection of the points.
WARNING
The monitoring of the analog input signal via the parameter Error/Warning Behaviour
563 demands the check of parameter Characteristic Curve Point X1 564.
In the settings
− "6 - Voltage, characteristic" or
− "7 - Current, characteristic"
of parameter
Operation Mode MFI1 452, the following characteristic is effective:
Point 1:
V0.20 V102.00%X1 =⋅=
Hz 0.00Hz 50.000.00%Y1 =⋅=
Point 2:
V9.80 V1098.00%X2 =⋅=
Hz 0.005Hz 50.000.00%10Y2 =⋅=
Pos. maximum value
Neg. maximum value
(X1=2%/Y1=0%)
0 V
(0 mA)
50 Hz
+10 V
(+20 mA)
9.8 V
0.2 V
(X2=98%/Y2=100%)
Y
X
177
Control inputs and outputs 06/2013 Operating Instructions
