BONFIGLIOLI Agile User Manual

Commissioning
VABus
Parameter
Display

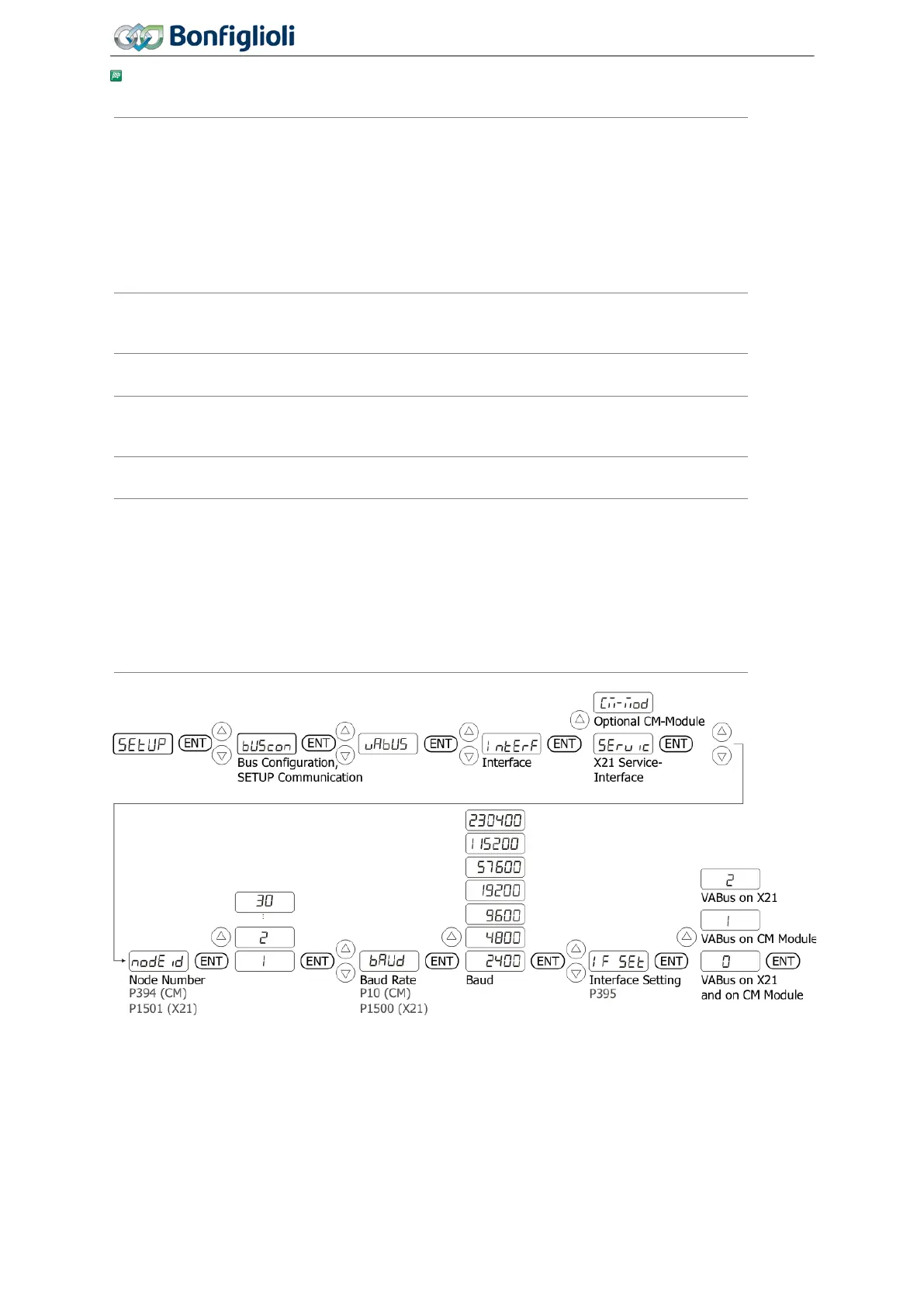

Select the interface for settings of VABus parameters. (Ser-
vice interface X21 or communication module).
− Select service interface X21 for VABus communication.
Or:
− Select an optional communication module CM-232 or CM-
485 for VABus communication. The menu item is only
displayed if a communication module is installed.
394
CM: VABus Node-ID.
An optional communication module CM-232 or CM-485 was
selected.
1501
X21: VABus Node-ID.
The service interface X21 was selected.
10
Baudrate.
An optional communication module CM-232 or CM-485 was
selected.
1500
Baudrate.
The service interface X21 was selected.
395
Interface setting. Protocol (CM/X21).
− Set the service interface X21 to VABus.
Or:
− Set an optional communication module CM-232 or CM-
485 to VABus.
Or:
− Set the service interface X21 and an optional communi-
cation module CM-232 or CM-485 to VABus.







 



78
Operating Instructions
Agile 06/2013 Commissioning of a communication interface
