BONFIGLIOLI Agile User Manual

Commissioning

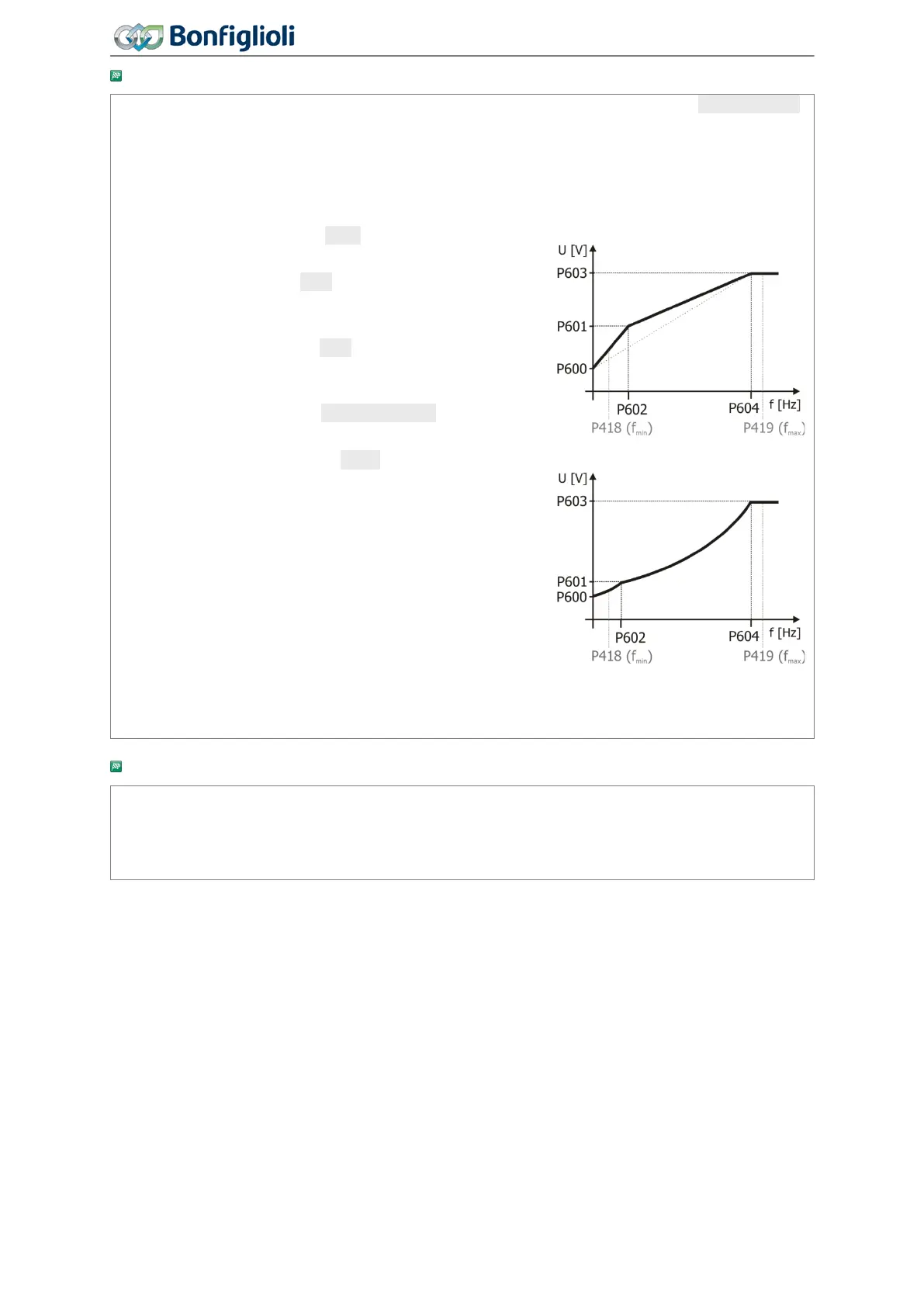

V/f characteristic
(Factory setting)
if
P30: 110 - IM: sensorless control
606
Type V/f characteristic
1
Linear
Linear characteristic.
2
Quadratic
For applications where the torque increases quadratically to the
speed. Suitable for energy saving.
600
Starting Voltage (5.0 V)
Linear
Quadratic
Output voltage at output frequency of 0 Hz.
601
Voltage Rise (10%)
Increase of output voltage deviating from line-
ar characteristic.
602
Rise Frequency (20%)
Increase of output voltage deviating from line-
ar characteristic.
603
Cut-Off Voltage (230,0 or 400.0 V)
Coordinate for setting of V/f characteristic.
604
Cut-Off Frequency (50 Hz)
Coordinate for setting of V/f characteristic.
The working range is between P418 (minimum frequency 3.50 Hz) and P419 (maxi-
mum frequency 50 Hz).
Motor temperature monitoring
Evaluate thermo contact at MFI1 (X12.4):
570
1
Thermo contact, P204: Warning only
2
Thermo contact, P204: Error Switch-Off
3
Thermo contact, P204: Error Switch-Off 1 minute delayed
Further evaluations: PTC, KTY, PT1000.
90
Operating Instructions
Agile 06/2013 After first commissioning
