5.9 Mounting the Fixture on the Base
Hardware and mounting holes
The base provides mounting holes for your fixture. Mounting holes are also provided for
the optional Branson leveling plate kit. The base is tapped for metric M10-1.5 hardware.
The mounting holes are arranged in three concentric bolt circles with the following
dimensions.

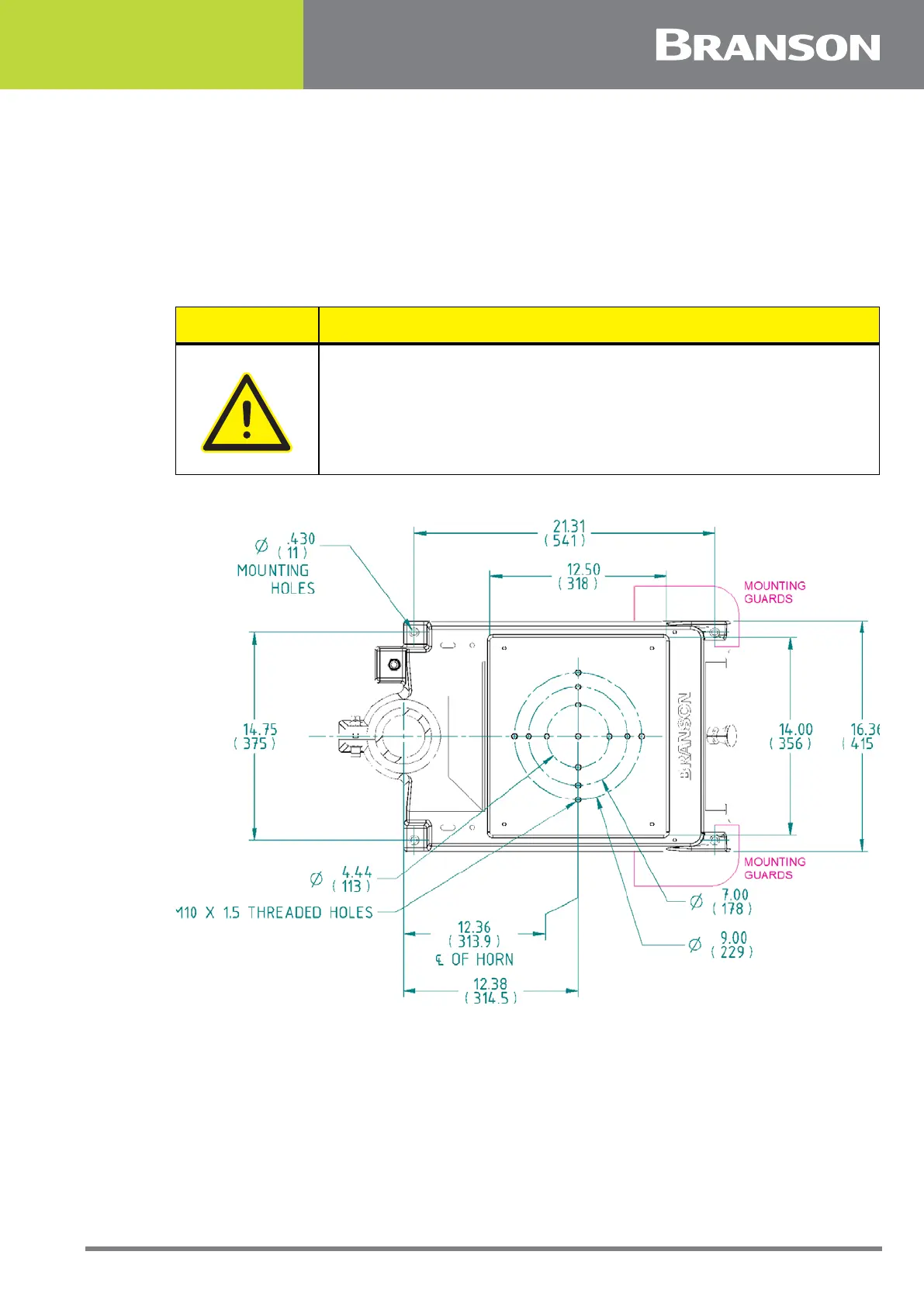

Figure 5.19 Mounting Holes on Base
The optional guard, EDP 101-063-550, (sometimes required with very large horns) is
shown for position only. It extends several inches to either side of the base, and prevents
the user from operating the welder and pinching their fingers or hands between the base
and the tooling.
CAUTION
The base is cast metal and the mounting holes can become stripped if
the hardware is overtightened. Tighten your hardware only enough to
prevent movement of your fixture.
