Branson 2000Xc - Figure 4.1 2000 Xc Actuator Pneumatic System; Table 4.9 2000 Xc Actuator Pneumatic System

50 100-412-234 REV. 06

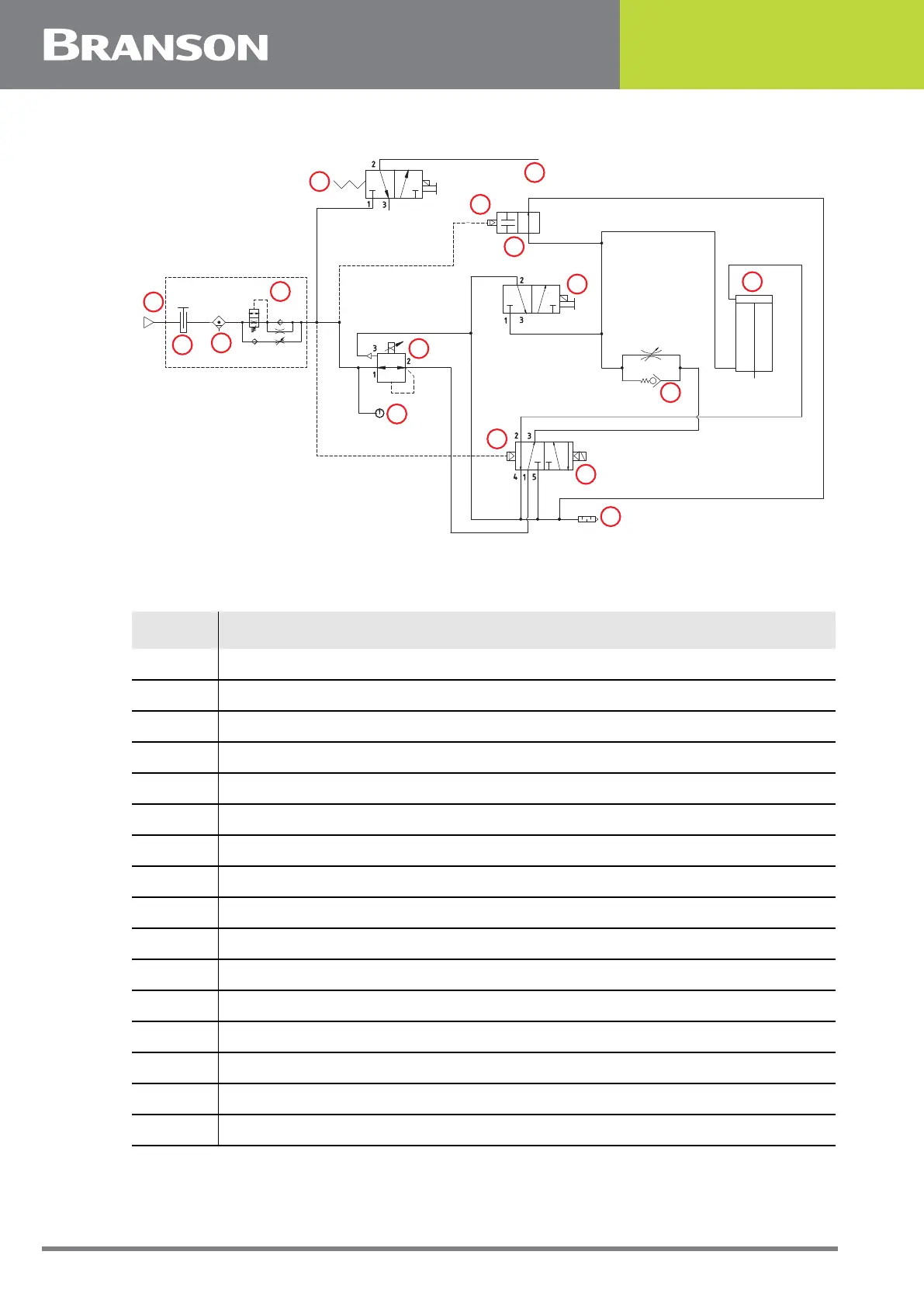

Figure 4.1 2000Xc Actuator Pneumatic System
Table 4.9 2000Xc Actuator Pneumatic System
Item Description
1 Supply pressure
2 Slide valve
3 Filter
4 Soft start valve
5 Cooling valve
6 Cooling connector reducer to RF harness
7 Pilot
8 Spool valve
9 Rapid traverse
10 Electronic regulator
11 Pressure indicator
12 External pilot
13 Primary valve
14 Muffler
15 Flow Control
16 Cylinder
5
6
7
8
16
15
13
12
14
10
11
4
3
2
1
9
