Branson 2000Xc - Figure 5.8 Rear View of Actuator, Showing Mounting Surface, Bolt and Guide Pin Locations

100-412-234 REV. 06 73

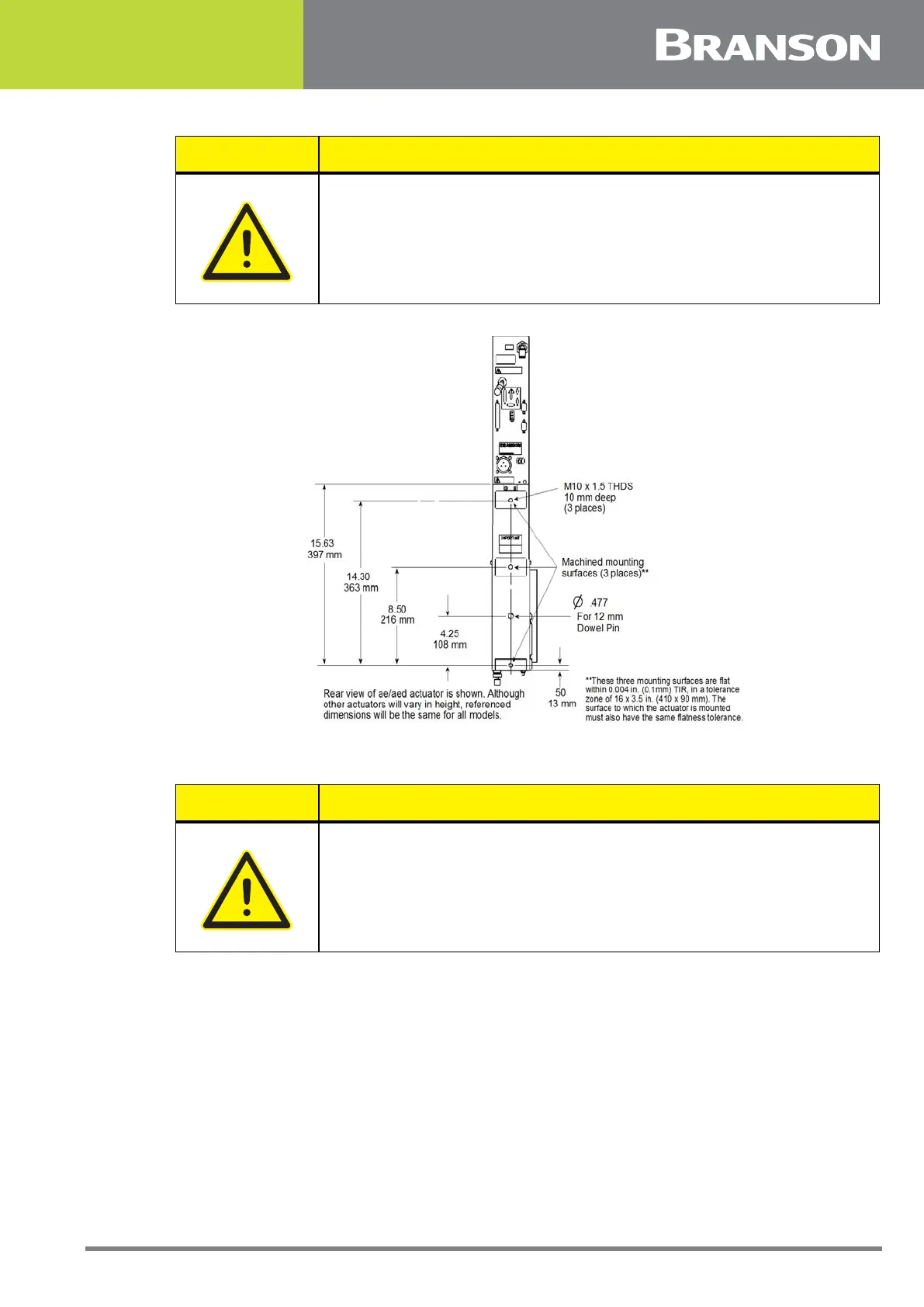

Figure 5.8 Rear view of Actuator, showing Mounting Surface, Bolt and Guide Pin locations
3. Lift the actuator assembly into position on your mount, and secure using the metric bolts
provided
CAUTION
DO NOT use 900-Series M10 x 1.25 mounting bolts. They have a
different thread pitch and will not interchange with those used on the
2000Xc-Series.
CAUTION
In the event you must use bolts of a different length, ensure that the
bolts extend more than 0.25 inch (6 mm) into the threads in the
actuator housing, but less than 0.40 inch (10 mm).
