5.2.3 Stand (actuator on a base)
Heed the “This End Up” arrows and the “Open Top First” instructions. The packaging is
designed to be removed from the assemblies from an upright orientation only.

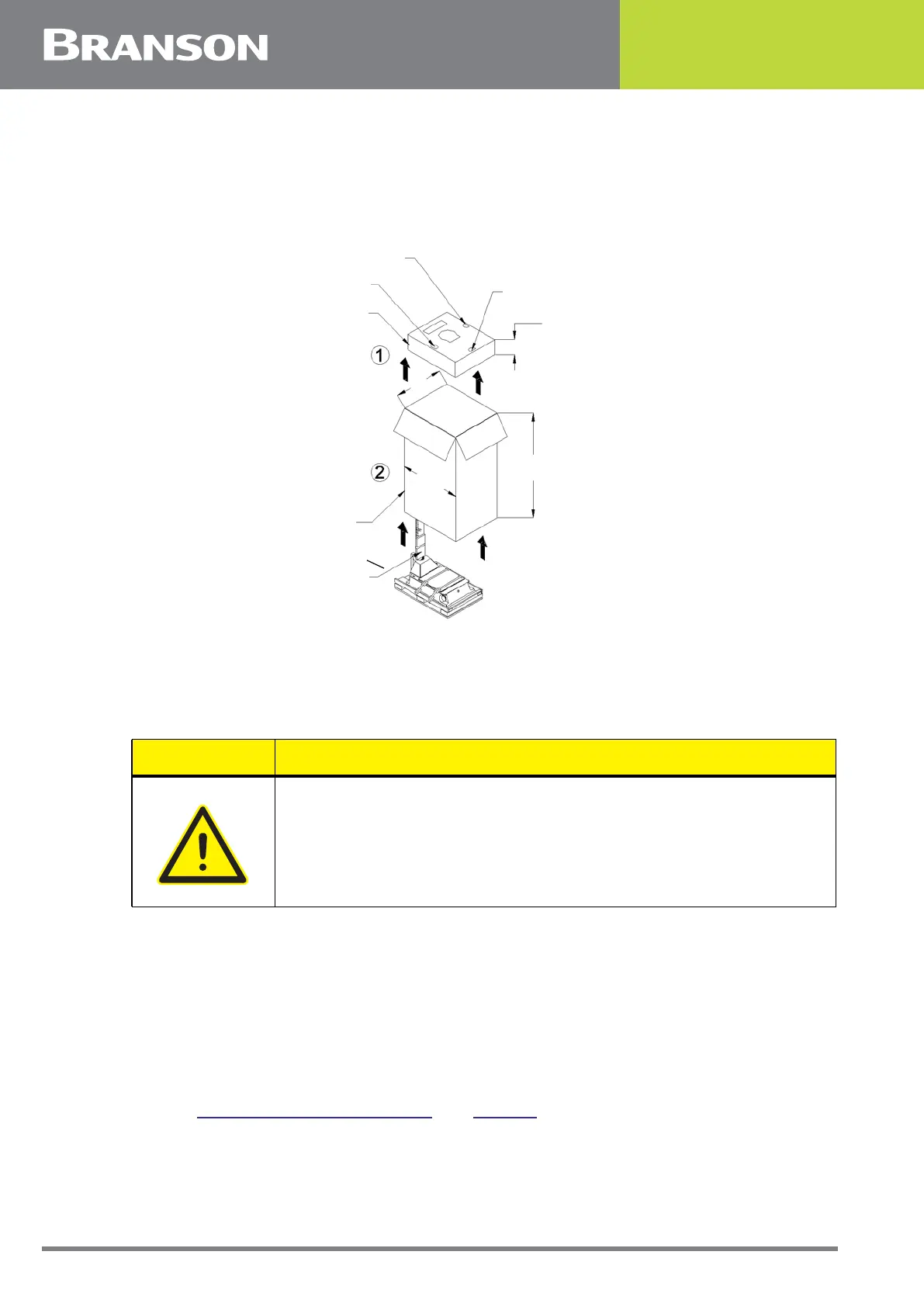

Figure 5.2 Unpacking the Stand (Actuator on a Base)
• Move the shipping container close to the intended installation location, leave it on the floor
• Open the top of the box. Remove the insert from the top of the protective box, which may
contain the booster, converter, and the toolkit
• Remove the staples at the bottom of the protective box. Lift the protective box off the pallet
• Cut the two packing straps around the base and pallet. Pry off the two wooden shipping blocks
(to the rear of the base) which prevent the base from sliding on the pallet
• The stand can now be moved into its desired location by sliding it off the pallet. Stands have a
lifting hook for the use of overhead hoists to lift the assembly in place
• Remove the block of wood between the base and the column support by carefully loosening the
two column clamps (allowing the actuator to rise slightly, but not allow sudden movements) and
then cutting the shipping tape on the block of wood. RETIGHTEN THE COLUMN CLAMPS
• Unpack the toolkit from the insert box, and other parts (converter, booster, etc.) that may have
shipped with the stand. Save the packing material
• Go to
5.3 Take Inventory of Small Parts. See Table 5.1
5.2.4 Actuator (Alone)
The actuator, if shipped alone, is assembled and ready to install
CAUTION
The column and column support are under spring tension from the
counterbalance spring. Do NOT attempt to disassemble the column
from the stand, but always keep the column support clamped
together. When making height adjustments, carefully and slowly
release the clamps to control the motion, and hold the stand to
prevent sudden movements or injury.
Tool Kit
Converter
Booster
18in.
Protective
Box
wood block
for shipping
53in.
32-1/2in.
Insert
Box
