Branson 2000Xc - Figure 8.5 SBC PC Board Connector Layout; Table 8.12 Removing the SBC PC Board

100-412-234 REV. 06 217
8.8.9 Single Board Computer (SBC)

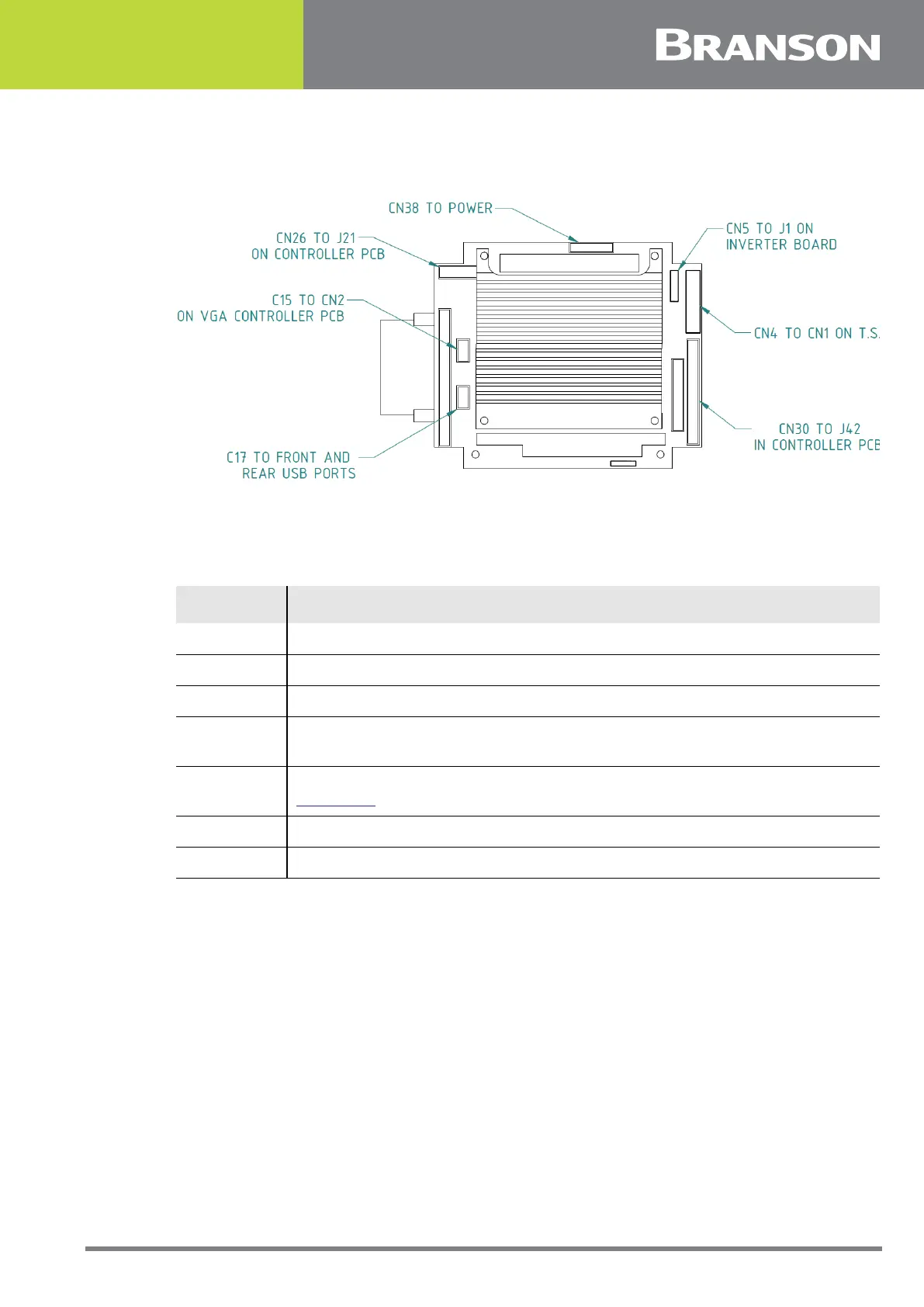

Figure 8.5 SBC PC Board Connector Layout
To remove the SBC, take the following steps:
To reinstall the SBC PC board, reverse the removal procedure.
Table 8.12 Removing the SBC PC Board
Step Action
1 Turn off the power supply.
2 Unplug the main power.
3 Allow at least two minutes for capacitor discharge.
4
Using a #2 Phillips screwdriver, remove 7 screws from the 2000Xc cover
(3 on each side, 1 on the rear). Remove the cover.
5
Disconnect C15, C17, CN4, CN5, CN26, CN30, and CN38. Refer to
Figure 8.5 above.
6 Using a #1 Phillips screwdriver, remove the 4 screws that hold the SBC.
7 Remove the SBC.
