4.2.2 Ultrasonic Power Supply
The 2000Xc Power Supply is part of an industrial system that can be used for ultrasonic
welding, inserting, staking, spot welding, swaging, and degating thermoplastic parts, and
for cutting and sealing thermoplastic fabric and film.

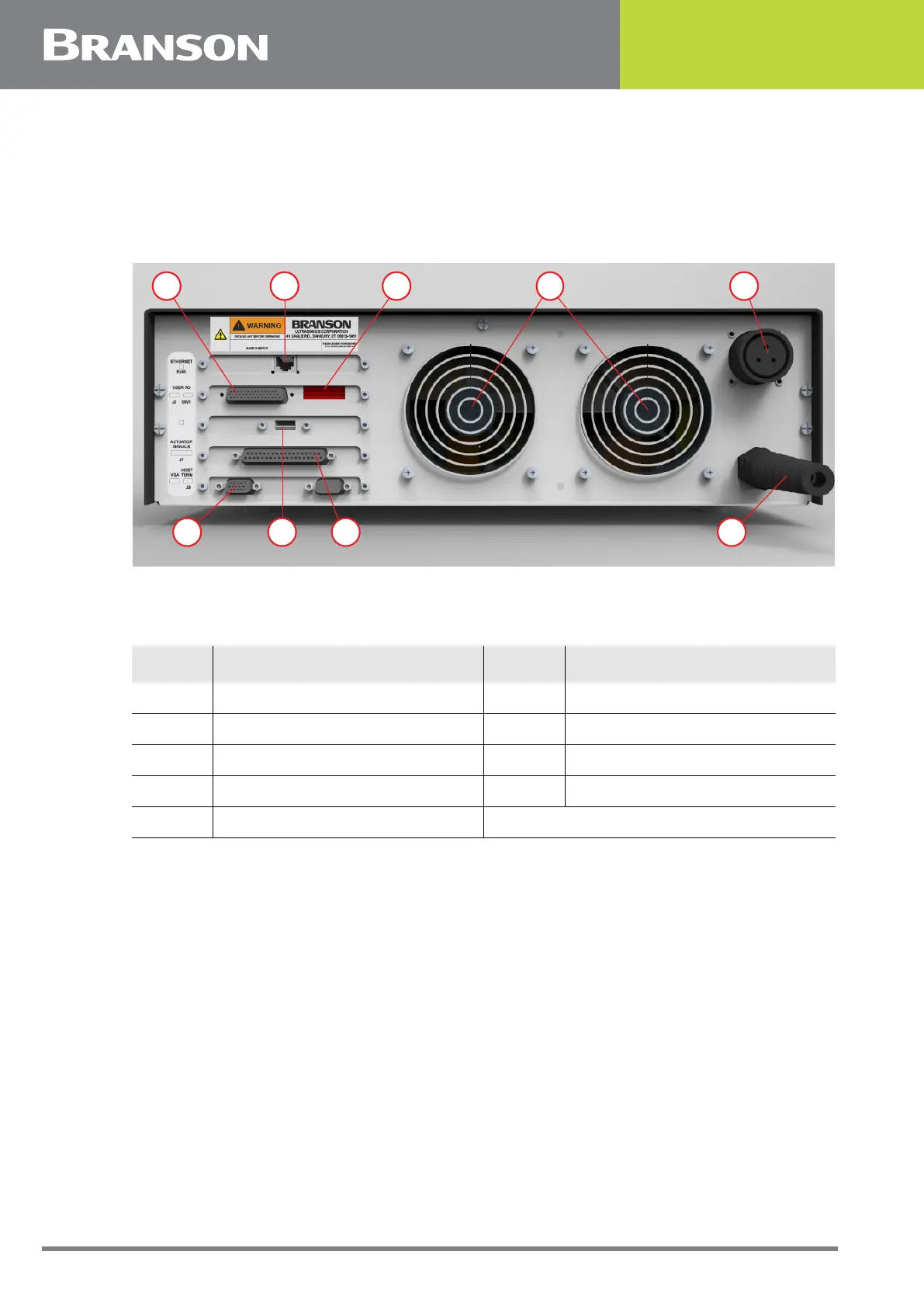

Figure 4.2 Rear View of 2000Xc Power Supply
The 2000Xc Power Supply is the combination of two welding system elements in one
enclosure. These elements are a power source for ultrasonic energy and a major portion
of the welding system control, including the user interface. The enclosure is a standard
19” rack-mount compatible design, and can be stacked or installed up to three units high.
Its design is readily convertible from its normal desktop configuration for standard 19-inch
rack mount applications by adding the rack mount handles (available as a kit). The
Chassis is approximately 20 inches (51 cm) in depth.
The 2000Xc’s control system is microprocessor-based, and controls the welding process
while providing a level of user interface through a membrane keypad and alpha-numeric
display. It employs fan-forced cooling, and is intended for horizontal placement. The front
panel display and user controls are intended to be accessible from a comfortable position
for an end user (operator), which means that the unit will often be installed approximately
3 to 5 feet off the floor.
Table 4.10 Connections on Rear of Power Supply
Item Description Item Description
1 User I/O Connector 2 Ethernet Connector
3 DIP Switch for User I/O 4 Fans
5 RF Connector 6 VGA Connector
7 USB Connector 8 Actuator Interface connector
9 Power Cord
1
6 7 8 9
532
4
