100-412-234 REV. 06 59
5.2 Handling and Unpacking
If there are any visible signs of damage to the shipping containers or the product, or you
later discover hidden damage, notify your carrier immediately. Save the packing material.
1. Unpack the 2000Xc components as soon as they arrive. Refer to the following procedures
2. Verify you have all of the equipment ordered. Some components are packed inside other boxes
3. Inspect the controls, indicators, and surfaces for signs of damage
4. Save all packing material, including the pallets and wood spacer blocks. Evaluation systems will
be returned using this packing material
5.2.1 Unpack the Power Supply
Power supplies are shipped in a cardboard carton. It weighs approximately 40 lbs
1. Open the box, remove the two foam top packing halves and lift the power supply out
2. Remove the toolkit(s) and other components shipped with the power supply. These items may be
shipped in small, separate boxes, or underneath the power supply in the box
3. Save the packing material; evaluation systems will be returned using this packing material
5.2.2 Unpack the Stand or Actuator
The stand (or actuator) is heavy and packed in a protective shipping container. The
actuator toolkit is packed with the actuator. A booster, converter and other components
may be packed inside the shipping container (depending on the equipment ordered).
• Stands are shipped on a wooden pallet with a cardboard box cover
• Actuators (alone) are shipped in a rigid cardboard box using protective foam shells for support

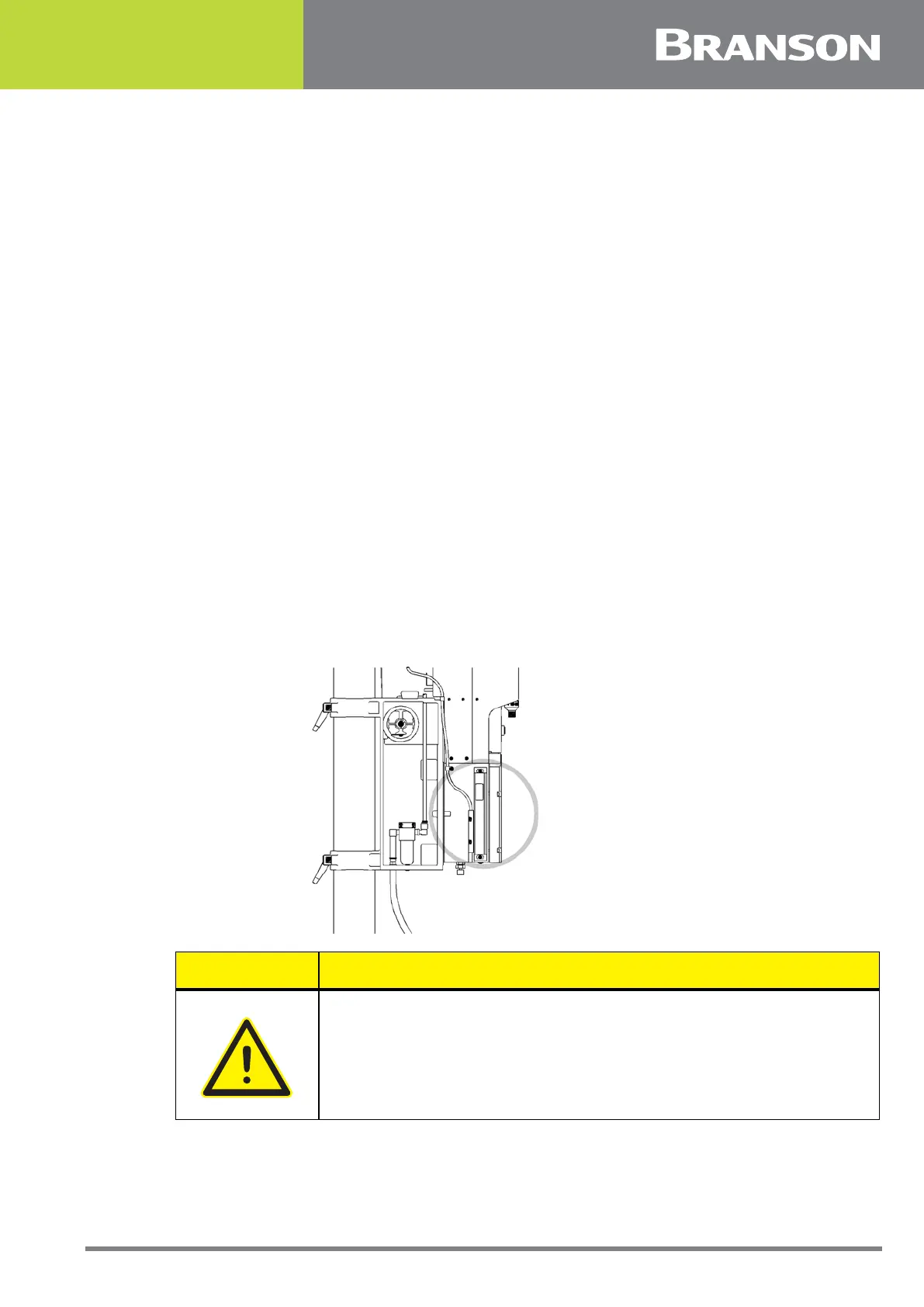

Figure 5.1 Linear Encoder
Depending on which one of the following options applies to you, unpack the Branson
actuator assembly:
CAUTION
The linear encoder (on the left side of the actuator) is very sensitive.
Do not use the linear encoder assembly as a hand-hold, allow no
impact on it, and do not place any weight on it.
