Branson 2000Xc - Guards and Safety Equipment; Figure 5.13 Actuator Emergency Stop Button

100-412-234 REV. 06 83
5.6 Guards and Safety Equipment
5.6.1 Emergency Stop Control
If you use the emergency stop button on the actuator to terminate a weld, twist the
button to reset it. (The welder will not operate until this button is reset.) You must then
press Reset at the power supply.

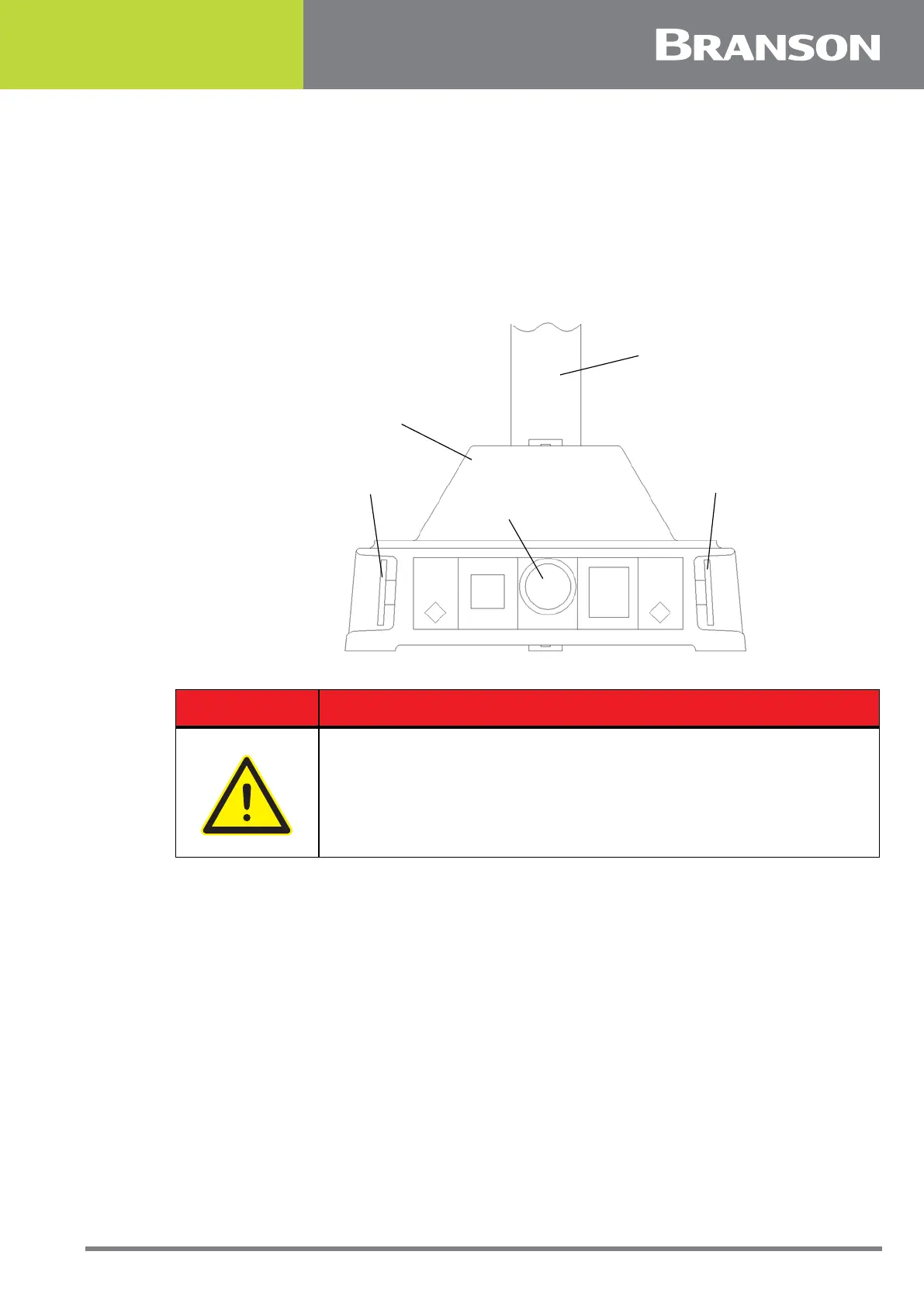

Figure 5.13 Actuator Emergency Stop Button
The 2000Xc Power Supply control system has been designed to conform to the safety
requirements of NFPA 79, EN 60204-1, EN 574, EN 13850, and CFR 1910.212.
Two Hand Control of the 2000Xc Power Supply control system has been designed to
comply with Type 3 of NFPA, Type III of EN 60204-1, and EN 574.
The Emergency Stop functions as a category 0 stop of NFPA 79, EN 13850, and EN 60204-
1.
DANGER
The Emergency Stop should be engaged prior to removing the door.
Column
Base
Start SwitchStart Switch
Emergency Stop Button
