6.16 Weld History
Weld History shows the last 100,000 weld data lines saved in the power supply or USB
stick.

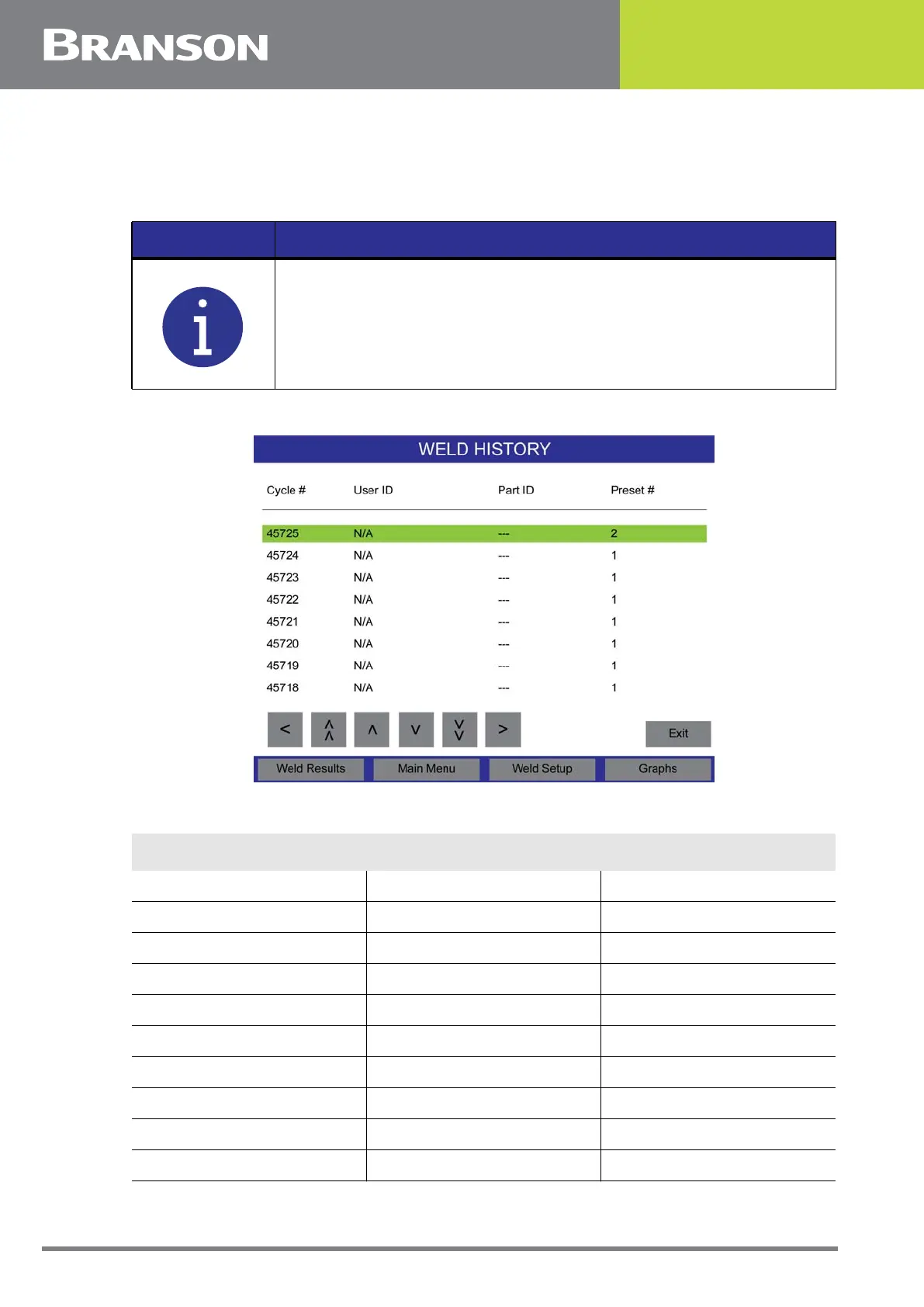

Figure 6.56 Weld History
NOTICE
USB Recall and USB Setup buttons are only available when there is a
USB stick present.
Table 6.30 Weld History
Data
Cycle # Pk Pwr (%) Act Press (PSI)
User ID Energy (J) Freq Min (Hz)
Part ID Velocity (in/s) Freq Max (Hz)
Preset # Weld Abs (in) Freq Start (Hz)
Preset Rev Total Abs (in) Freq End (Hz)
Preset Valid Weld Col (in) Freq Chg (Hz)
Act Assem # Total Col (in) Cycle Time (s)
P/S Assem # Set Amp A (%) Hold Force (lb)
Stack Assem # Set Amp B (%)
Time (s) Weld Force (lb)
