6.10.11 Preset Barcode Start
Enter a character (letter or symbol) that will indicate a preset is to be recalled when
scanned with a barcode. The number following the character indicates which preset
number. Example; Preset Barcode Start = P indicates if a barcode reader sees the letter P
as the first character of a barcode, it will recall a preset based on the number after P on
the barcode.
6.10.12 Extra Cooling
When set to On, allows cooling air to start when upper limit switch is triggered and remain
on throughout the cycle. When Off, air is applied at ultrasonics application.
6.10.13 Ext Presets
Press the Ext Presets button to toggle between On and Off.
External selection of presets is accessed and turned On or Off in the System Configuration
menu. The selection goes into effect for the next weld cycle. When enabled, inputs can be
read when start switch is received to start a new cycle. The user inputs J3-17, J3-19, J3-
31, J3-32, J3-33 are used to decode which preset is recalled.
• When a preset is recalled externally, it will be verified if needed
• A new alarm message has been added that will indicate that a preset has not been defined
(saved) or an attempt has been made to recall a preset not available for a control level
• External selection of presets will default to off. Cold start will not affect the setting
6.10.14 Windows Setup
Allows access to the Microsoft Windows screen. Double click the 2000Xc icon to return to
the 2000Xc Power Supply interface.

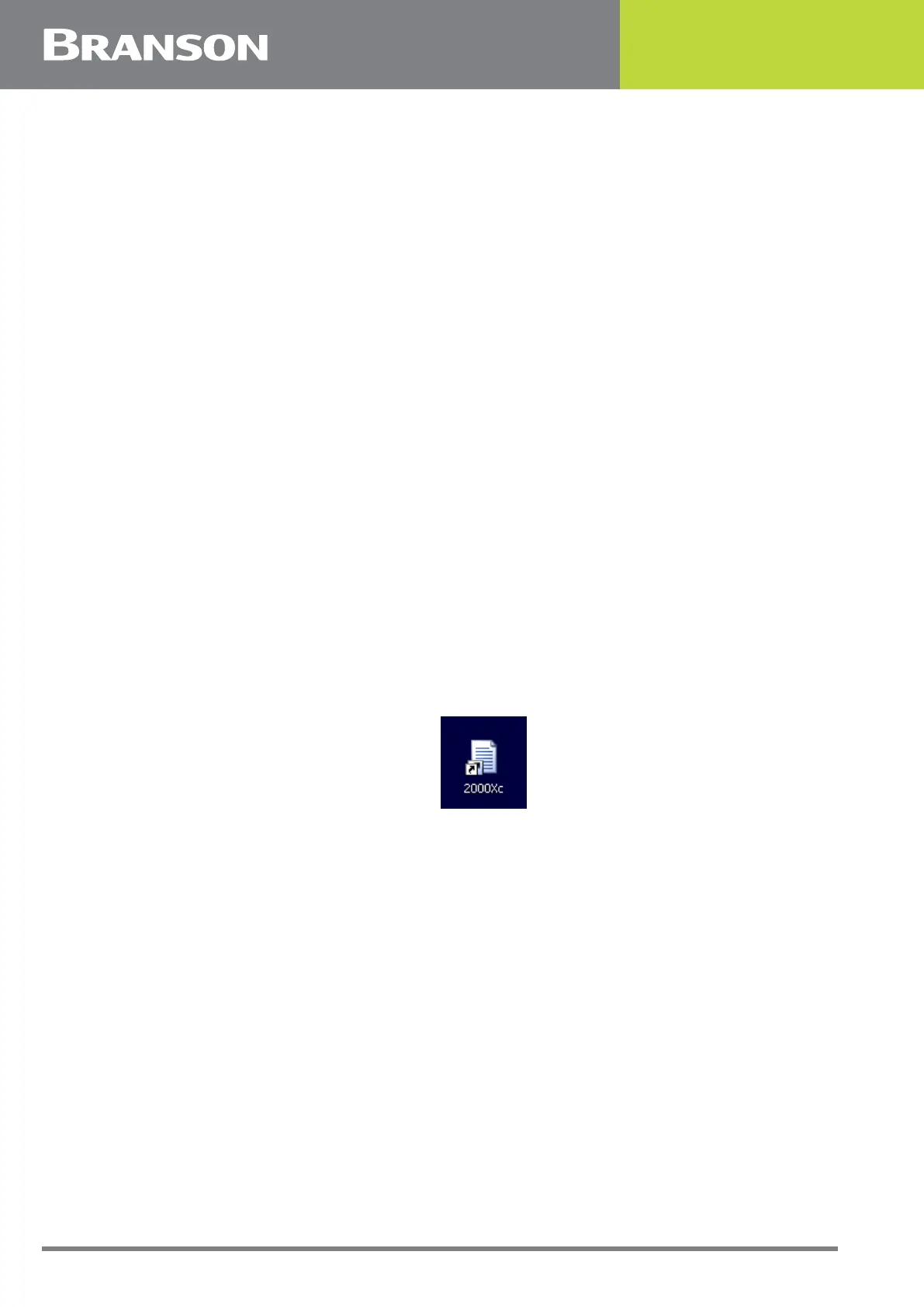

Figure 6.30 2000Xc Icon
