2.1 Models Covered
This manual provides detailed instructions for installation, setup, operation, and
maintenance of the 2000Xc Power Supply.
The 2000Xc Actuator may be found in one of two configurations:
• An actuator on a column support, column and ergonomic base, also called a stand on base (as
seen on
Figure 2.1)
• An actuator alone (not installed on a column support, and so on). These are often used in custom
systems that provide a means of positioning the actuator

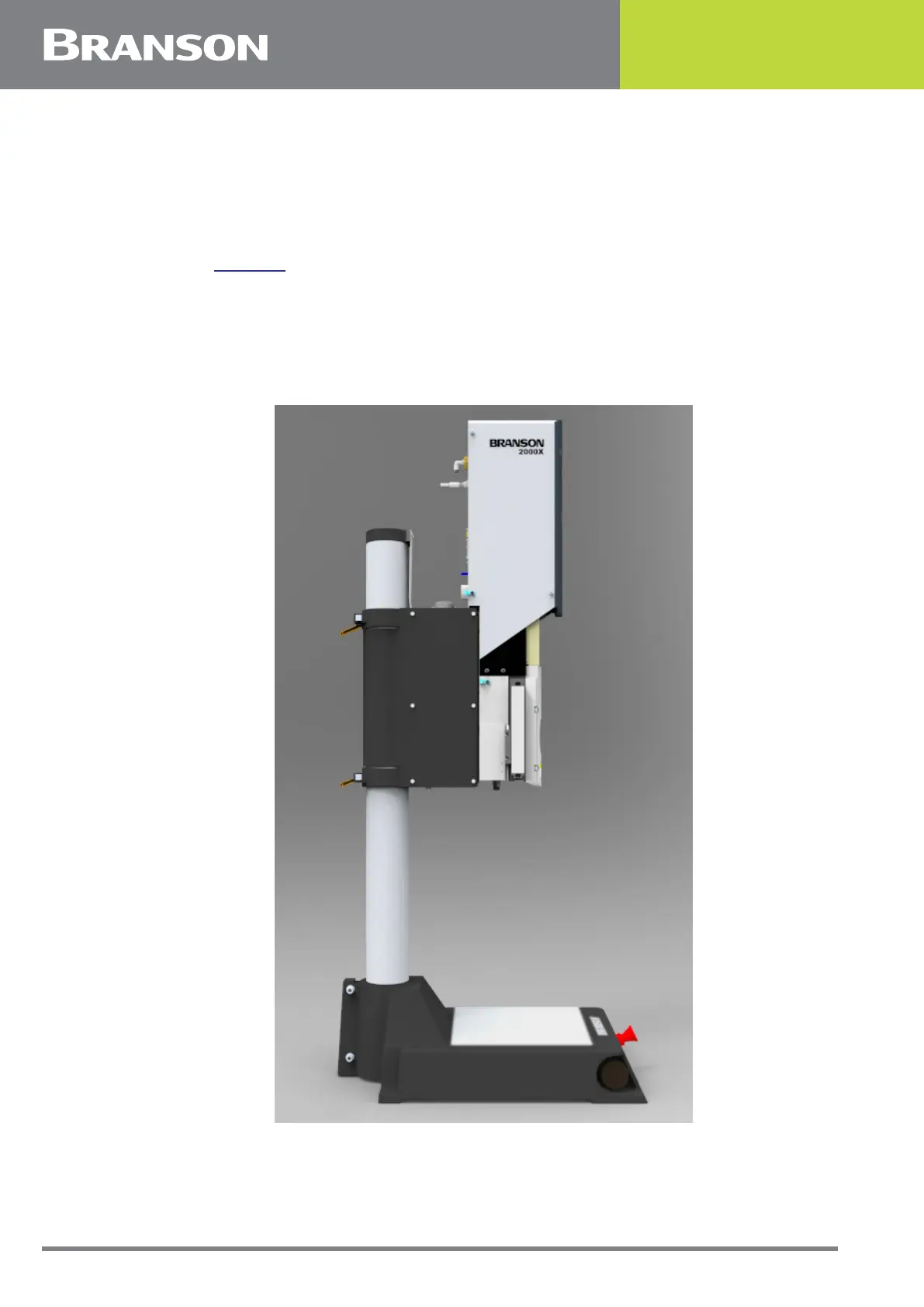

The figure below shows a Branson 2000Xc Actuator mounted on a column support which,
in turn is mounted on a column, and is supported by the ergonomic base.
Figure 2.1 Left Side View of the 2000Xc Actuator
