6.9.20 Pretrigger
You can select whether the ultrasonic energy will be started before the horn makes
contact with the part. If you select ON, you can set the distance at which the pretrigger
ultrasonics will be started, and the amplitude that will be used. Auto(pretrigger) is the
default. When Auto Pretrigger is used, ultrasonic energy will start when the horn leaves
the home position 1/8 in. (3.175 mm) travel. Pressing either the Auto or Dist button will
give access to a keypad to enter Pretrg Amp(%) values. Pressing the Time will give access
to a keypad to enter both Pretrg Amp(%) and Pretrg@T(s) values.

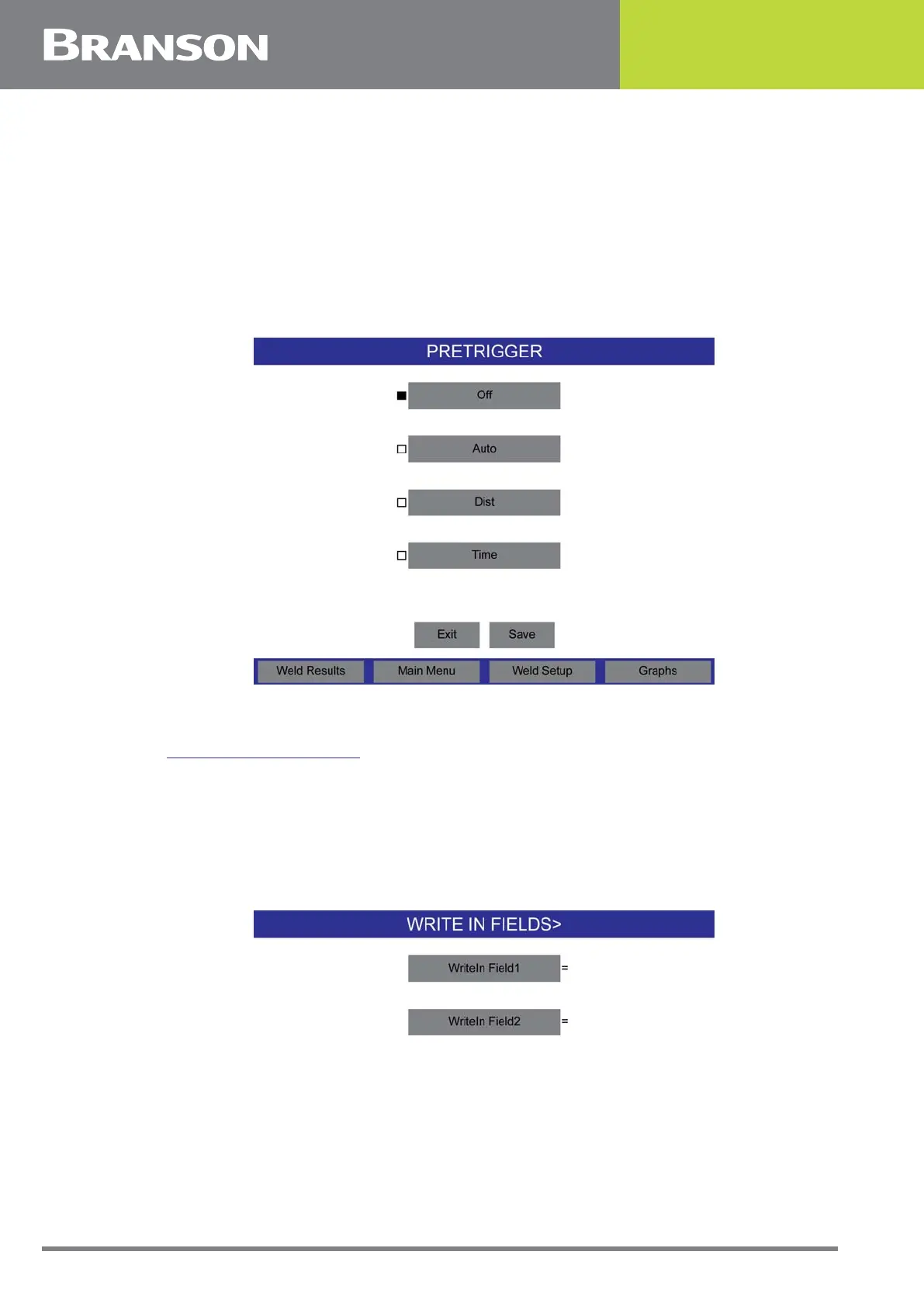

Figure 6.10 Pretrigger
6.9.21 Save/Recall Presets
See 6.17 Save/Recall Presets for more information.
6.9.22 Write In Field
Write In Field provides a means to assign a 10 digit alphanumeric to a specific weld setup
and cycle. This is useful for tracking parameter performance relative to a specific welder,
and its respective production run.
Figure 6.11 Write In Field
