6.9.25 Control Limits
You can select whether to use Control Limits. If you select ON, you will set limits of
minimum and maximum energy compensation (in Joules), a peak power cutoff (as a
percentage of the maximum), an absolute distance (in) measured from the home position,
or a collapse distance (in) measured from the trigger. The 2000Xc Power Supply uses
these Control Limits in addition to the primary weld mode and parameter to determine the
end of the welding cycle before moving to the Hold state. When energy compensation is
on and the minimum energy computed value is not reached, the weld time will be
extended up to 50% of the Set Weld time value in order to reach this limit. When the
maximum energy computed value is reached, the Weld Time will be terminated and the
Hold Time will start.

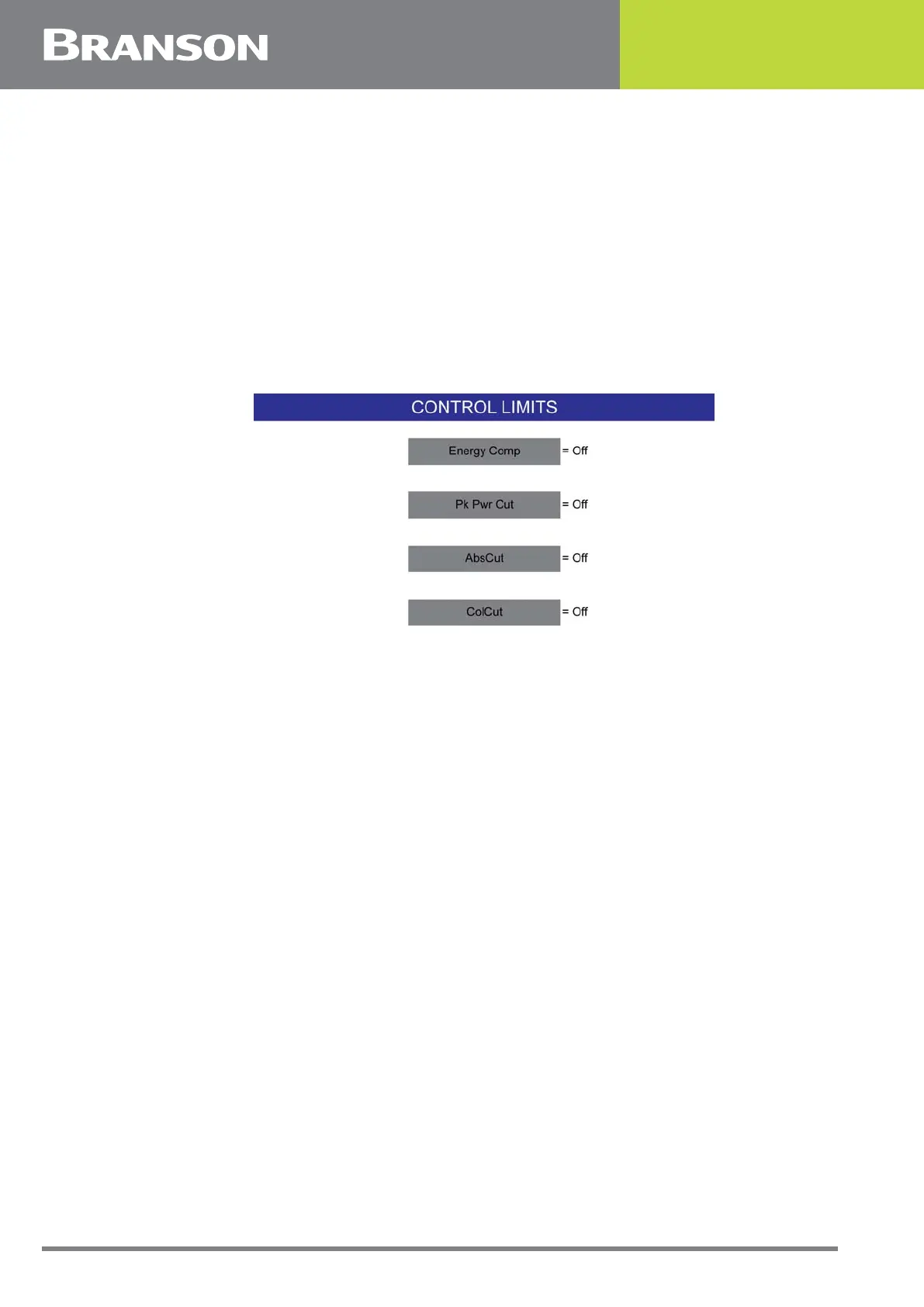

Figure 6.14 Control Limits
