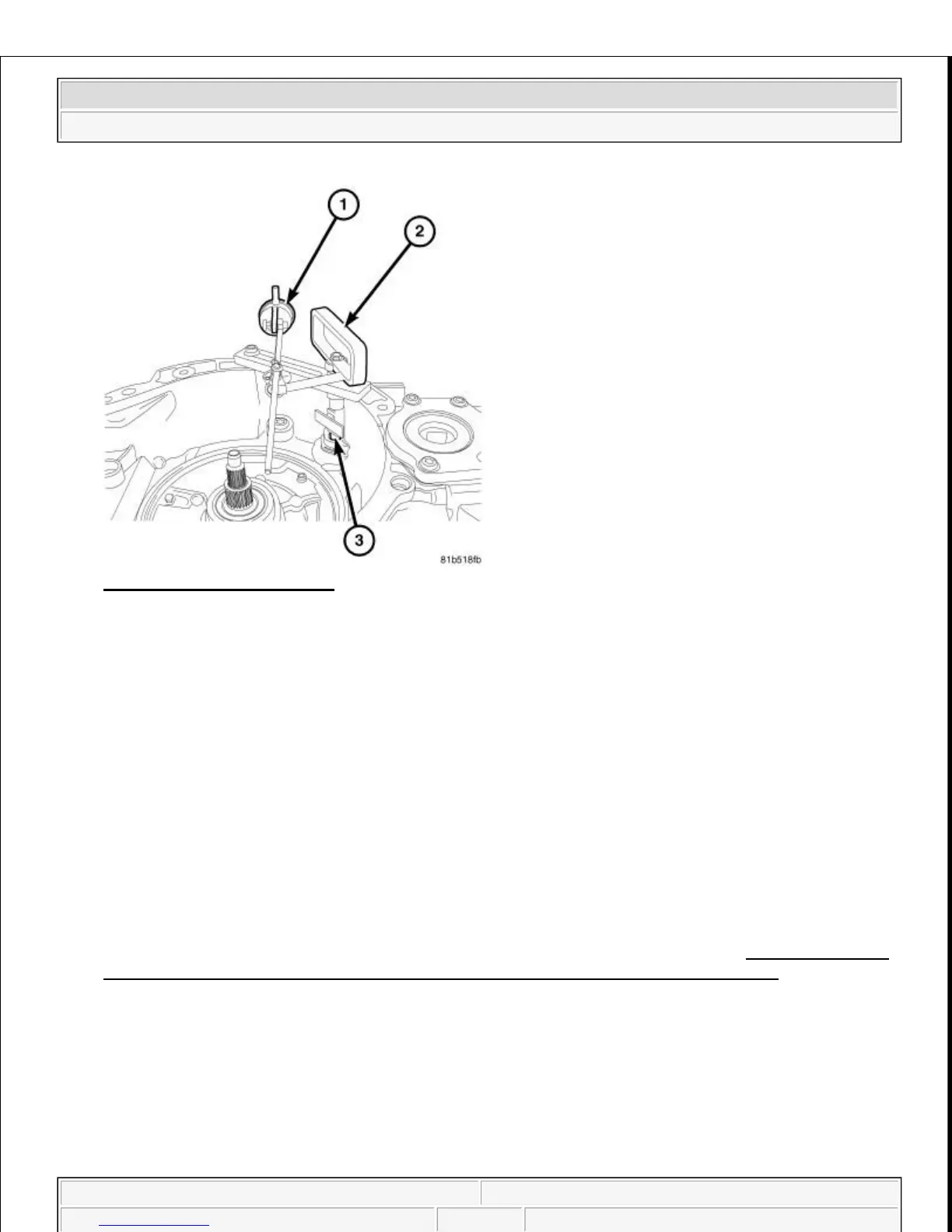

Fig. 168: End Play Tool 9951
Courtesy of CHRYSLER LLC
72. Remove plug at case (3).
73. Install compounder End Play Tool 9951 (2) through the hole in the front case.
74. Install Dial Indicator C-3339A (1) onto End Play Tool 9951.
75. Use moderate downward pressure on End Play Tool 9951 and zero Dial Indicator C-3339A.
76. Use moderate upward pressure on End Play Tool 9951 and take reading from Dial Indicator C-3339A.
77. Remove End Play Tool 9951 and zero Dial Indicator C-3339A.
78. Adjust shim thickness in the underdrive unit to 0.010 to 0.020.
79. Install the correct (select) helical shim and assemble the underdrive compounder. See Transmission and
Transfer Case/Automatic - 62TE/ASSEMBLY, Underdrive Compounder - Assembly and retest.
80. Using Mopar lock and seal adhesive install plug back into case and tighten to 24 N.m (18 ft. lbs.).
NOTE: Insure End Play Tool 9951 is not binding in support plate that is bolted to
the case.
NOTE: Always use original shim to determine end play.
