102. Install all six accumulators (1, 2, 3, 5, 6 and 7) into case along with the accumulator return springs.
103. Install a new 2/4 clutch oil supply seal (4) into the case.

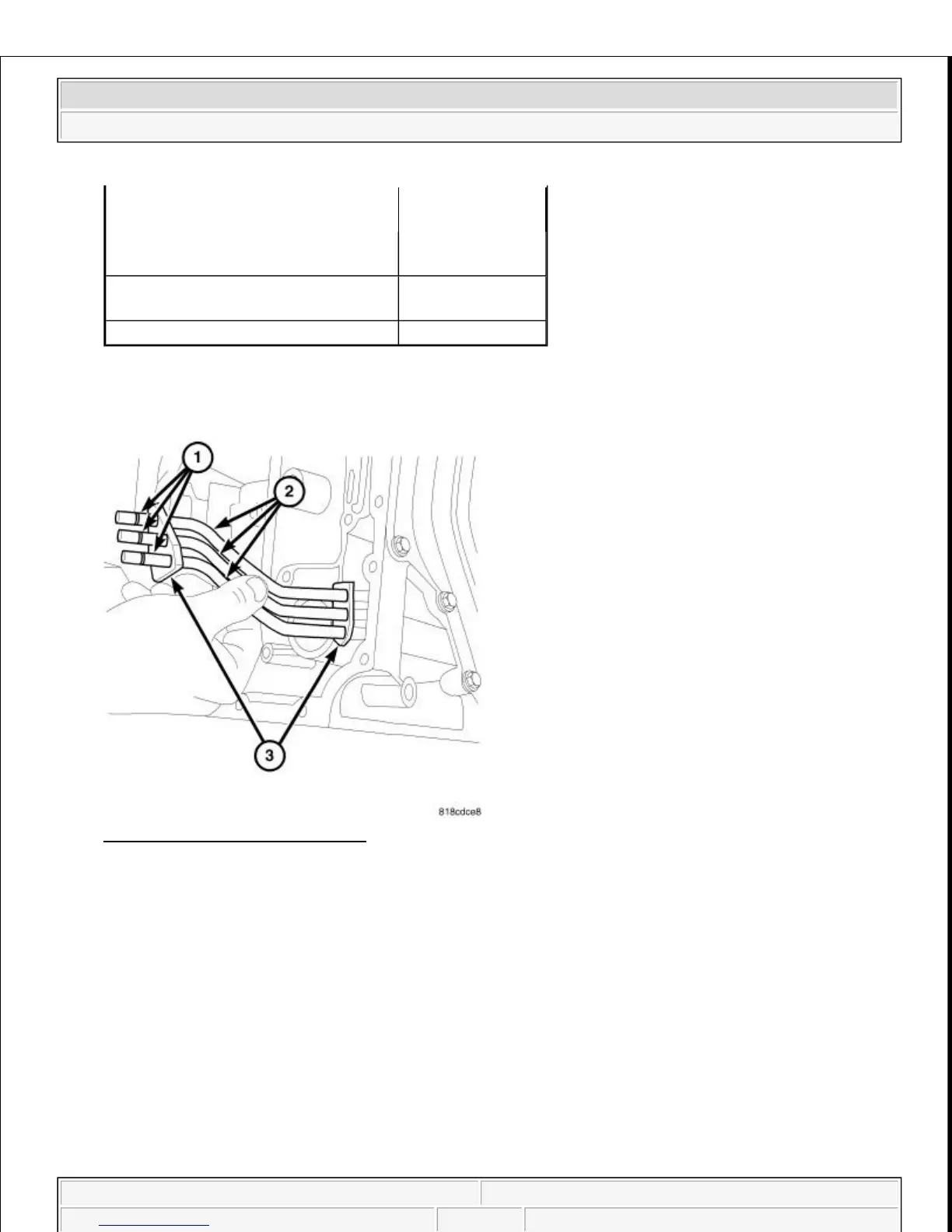

Fig. 184: Transfer Tube O-Rings
Courtesy of CHRYSLER LLC
104. Install the oil transfer tubes (2) into the case/compounder.
1 - UD ACCUMULATOR 5 - LC
ACCUMULATOR
2 - 2/4 ACCUMULATOR 6 - DC
ACCUMULATOR
3 - LR ACCUMULATOR
7 - OD
ACCUMULATOR
4 - 2/4 CLUTCH OIL SUPPLY SEAL -
NOTE: Install transmission oil on the oil transfer tubes O-rings.
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
