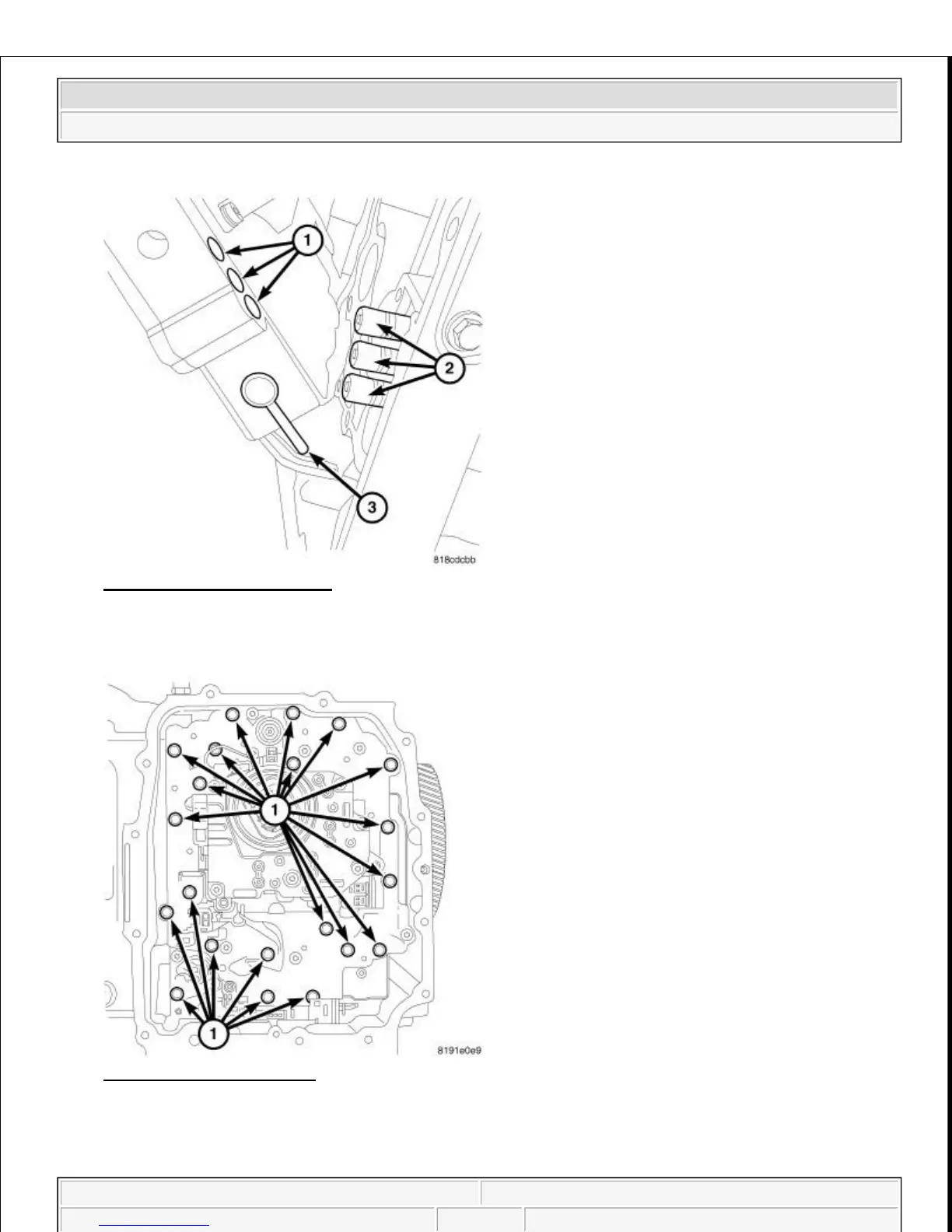

Fig. 185: Oil Transfer Tubes
Courtesy of CHRYSLER LLC
105. Install valve body (1) onto the oil transfer tubes and manual valve (3) at the rooster comb.
Fig. 186: Valve Body Bolts
Courtesy of CHRYSLER LLC
106. Install the valve bod
y
bolts (1) and ti
g
hten to 7 N.m (50 in. lbs.).
