Chrysler 62TE - Page 240

Courtes
y
of CHRYSLER LLC
35. Install the sun gear (2) onto the shaft.
36. Install the new retaining clip onto the transfer/underdrive shaft.

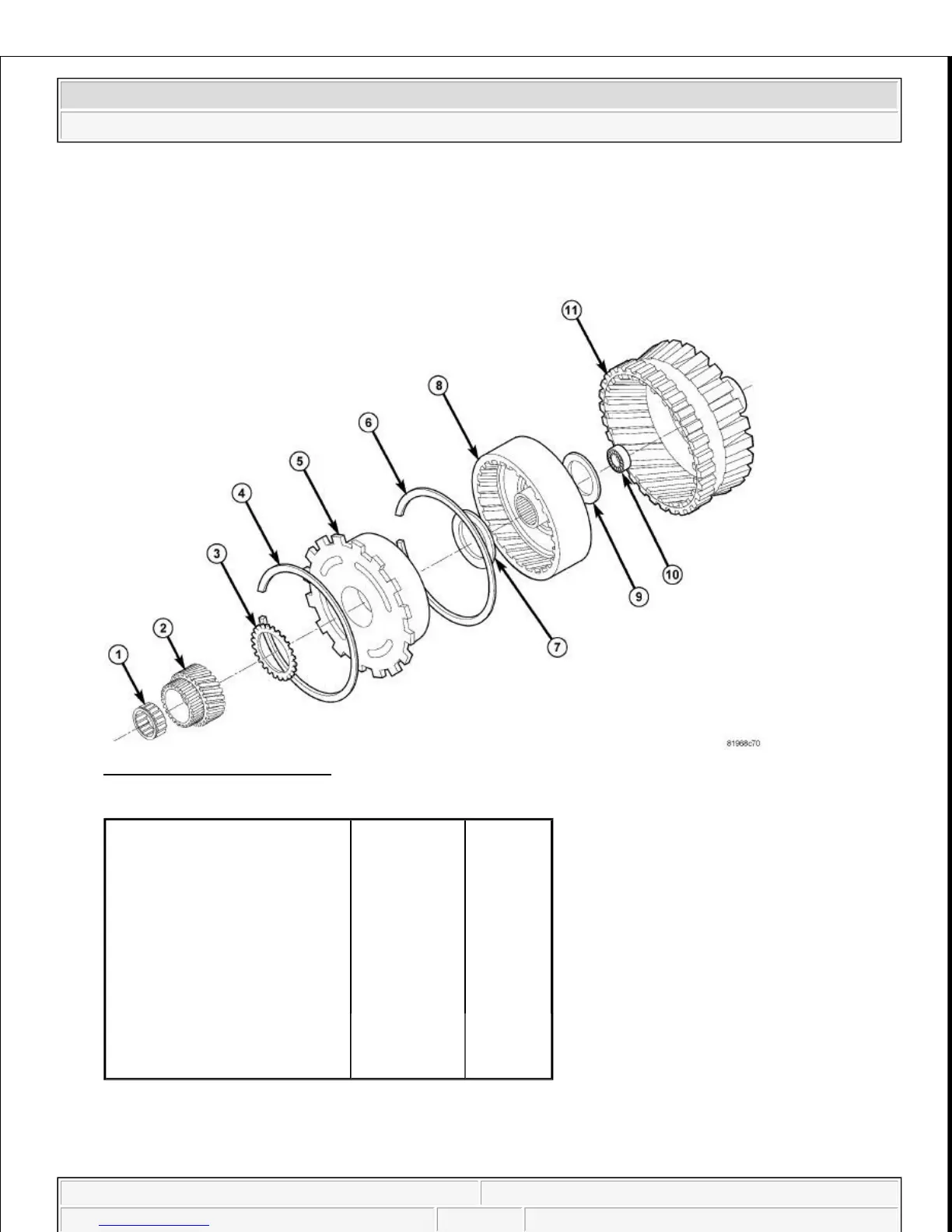

Fig. 403: Planetary Gear Set
Courtesy of CHRYSLER LLC
37. Inspect the needle bearing in the output hub for any damage.
38. Install the thrust washer (9) on the back side of the annulus gear/on the front side of the output hub.
39. Install the annulus
g
ear (8).
1 - NEEDLE BEARING 5 -
PLANETARY
CARRIER
9 - #2
NEEDLE
BEARING
2 - SUN GEAR
6 - #2 SNAP
RING
10 -
NEEDLE
BEARING
3 - HELICAL SHIM (SELECT)
7 - #1
NEEDLE
BEARING
11 -
OUTPUT
HUB
4 - #1 SNAP RING 8 -
ANNULUS
GEAR
-
2009 Chrysler Town & Country LX
2009 AUTOMATIC TRANSMISSION 62TE - Service Information - Grand Caravan, Town & Country
