The following image shows where to attach the rear rack-mount brackets to the Cisco ASR 1006 Router.

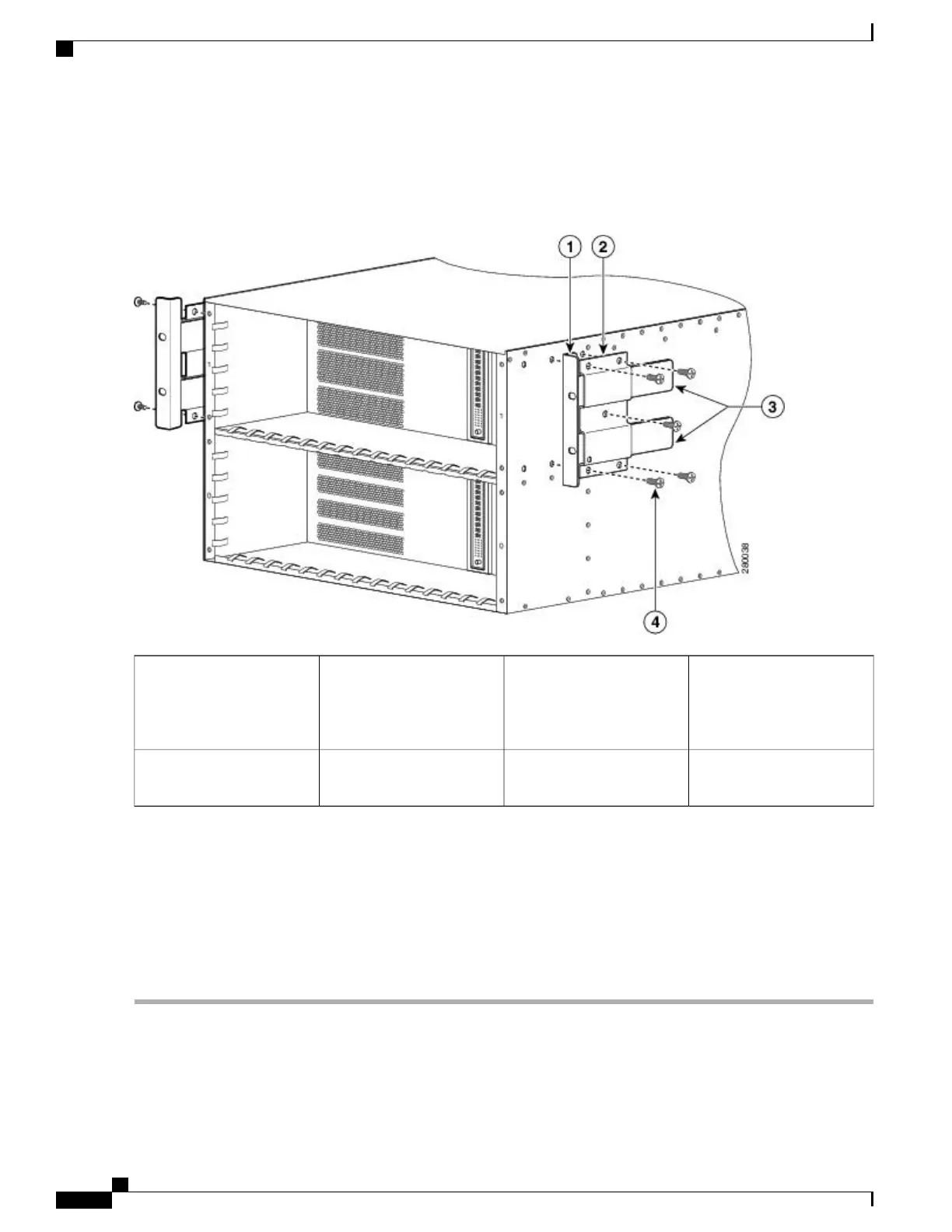

Figure 42: Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1006 Router
Rear rack-mount bracket
components that slide into
rear bracket attached to the
chassis
3Rear rack-mount bracket ear
and holes
1
Rear rack-mount bracket
screws
4Rear rack-mount bracket2
Step 2
Position the rear rack-mount bracket top hole with the chassis second top hole from the back (See Figure 42: Attaching
the Rear Rack-Mount Brackets to the Cisco ASR 1006 Router, on page 152).
Step 3
Insert and tighten the screws on one side.
Step 4
After the bracket is secured to the side of the chassis, slide the two remaining components into the side rack-mount
bracket.
Step 5
Repeat Step 1 through Step 3 on the other side of the chassis. Use all the screws to secure the rear rack-mount brackets
to the chassis.
What to Do Next
This completes the steps for attaching the rear rack-mount brackets to the Cisco ASR 1006 Router.
Cisco ASR 1000 Series Router Hardware Installation Guide
152
Cisco ASR 1006 Router Overview and Installation
Chassis Rear Rack-Mount Brackets

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
