Cisco ASR 1002 Hardware Installation Guide

SUMMARY STEPS
1.
Locate the threaded holes on the rear side of the chassis. Make certain that you hold the rear rack-mount
bracket with the ear and holes facing outward and towards the rear of the chassis.
2.
Position the rear rack-mount bracket top hole with the chassis second top hole from the back (see Figure
66: Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1004 Router, on page 194).
3.
Insert and tighten the five screws on one side.
4.
After the bracket is secured to the side of the chassis, slide the two remaining components into the side
rack-mount bracket.
5.
Repeat Step 1 through Step 3 on the other side of the chassis. Use five screws to secure the rear rack-mount
brackets to the chassis.
DETAILED STEPS
Step 1
Locate the threaded holes on the rear side of the chassis. Make certain that you hold the rear rack-mount bracket with
the ear and holes facing outward and towards the rear of the chassis.
The following image shows where to attach the rear rack-mount brackets to the Cisco ASR 1004 Router.

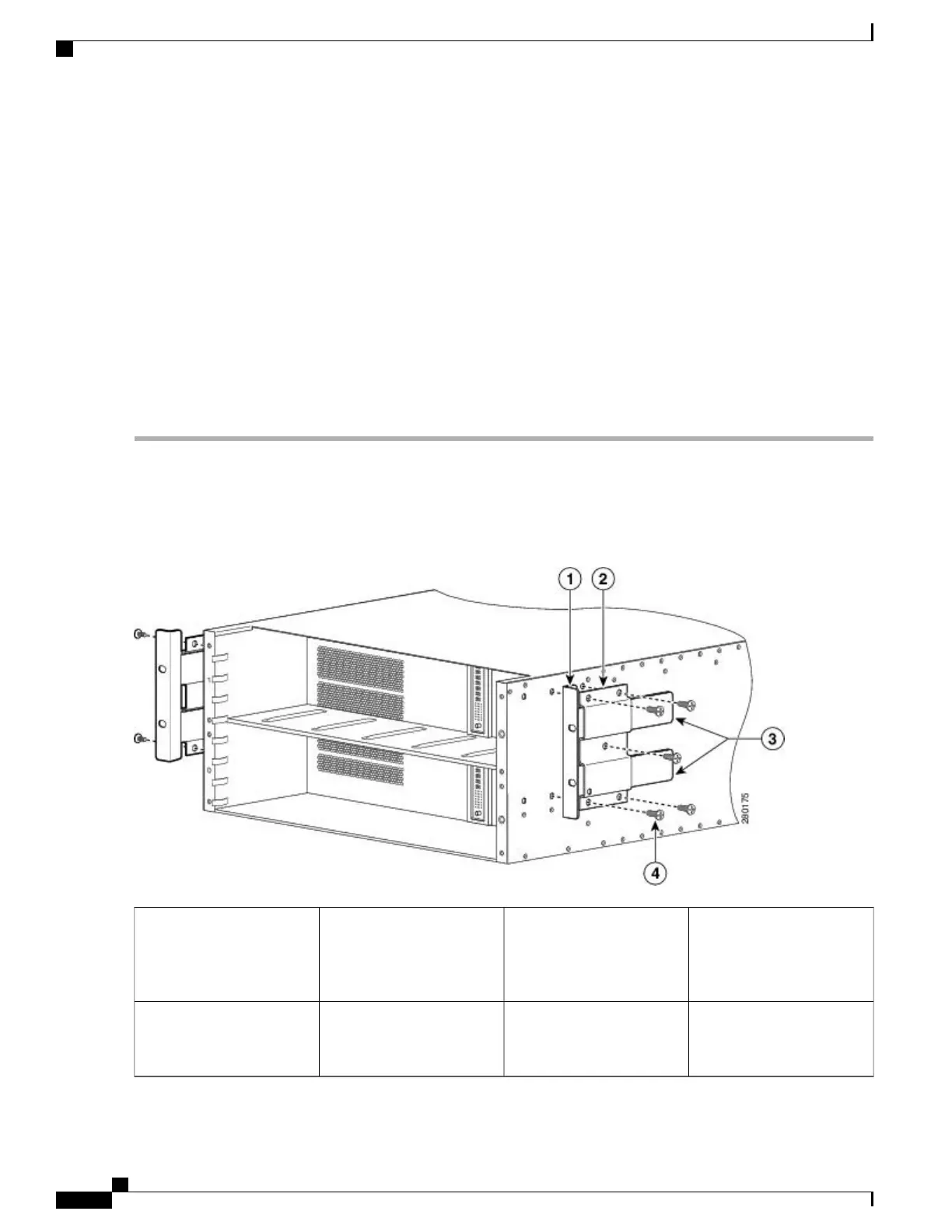

Figure 66: Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1004 Router
Rear rack-mount bracket
components that slide into
rear bracket that is attached
to the chassis
3Rear rack-mount bracket ear
and holes
1
Rear rack-mount bracket
screws
4Rear rack-mount bracket
(first bracket to attach to
chassis)
2
Cisco ASR 1000 Series Router Hardware Installation Guide
194
Cisco ASR 1004 Router Overview and Installation
Chassis Rear Rack-Mount Brackets

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
