Cisco ASR 1002 Hardware Installation Guide

Each Cisco ASR 1000 Series Route Processor 1 must have a console port connection (typically to a
terminal server) if you are running a redundant configuration in the chassis.
Note
Perform the following procedure to connect a terminal to a console port:
SUMMARY STEPS
1.
Connect one end of the RJ-45 cable to the serial RJ-45 port (CON) on the front panel (see the following
image).
2.
Run the cable up and through the cable management bracket and connect the other end of the RJ-45 cable
to the RJ-45 adapter (see Figure 176: Cisco ASR 1002-X Router Console Port Connection on the Route
Processor, on page 363).
3.
Connect the adapter to your video terminal to complete the cable connection.
4.
Power on your video terminal.
5.
Configure your video terminal to match the following default console port settings:
6.
Continue with the installation by referring to the procedure described in the Connecting External Cables
to the Cisco ASR 1002-X Router, on page 364.
DETAILED STEPS
Step 1
Connect one end of the RJ-45 cable to the serial RJ-45 port (CON) on the front panel (see the following image).

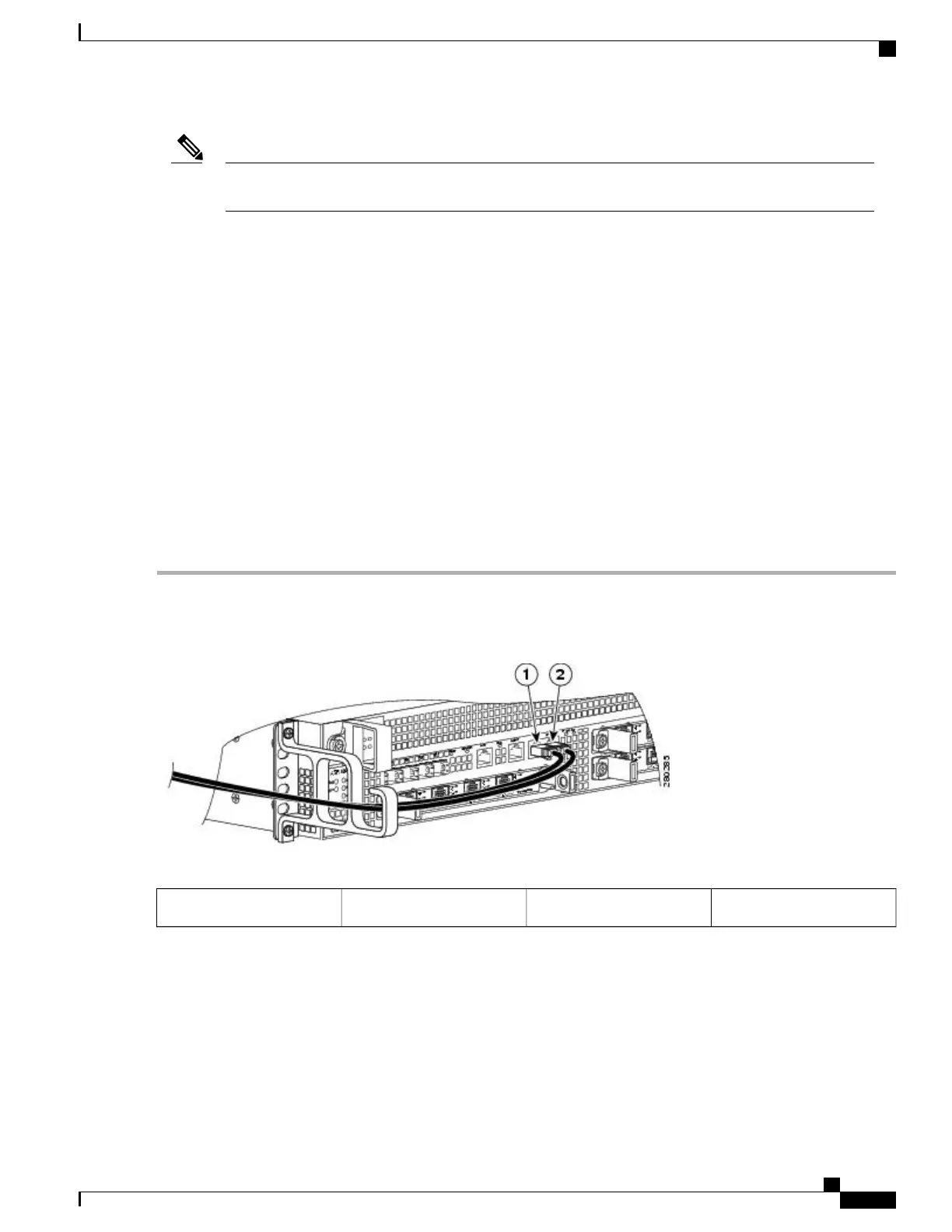

Figure 176: Cisco ASR 1002-X Router Console Port Connection on the Route Processor
AUX port connection2CON port connection1
Step 2
Run the cable up and through the cable management bracket and connect the other end of the RJ-45 cable to the RJ-45
adapter (see Figure 176: Cisco ASR 1002-X Router Console Port Connection on the Route Processor, on page 363).
Step 3
Connect the adapter to your video terminal to complete the cable connection.
Step 4
Power on your video terminal.
Step 5
Configure your video terminal to match the following default console port settings:
Cisco ASR 1000 Series Router Hardware Installation Guide
363
Cisco ASR 1002-X Router Overview and Installation
Connecting a Terminal to the Console Port

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
