Cisco ASR 1002 Hardware Installation Guide

b) Tighten the Kepnut screws on the power supply studs.

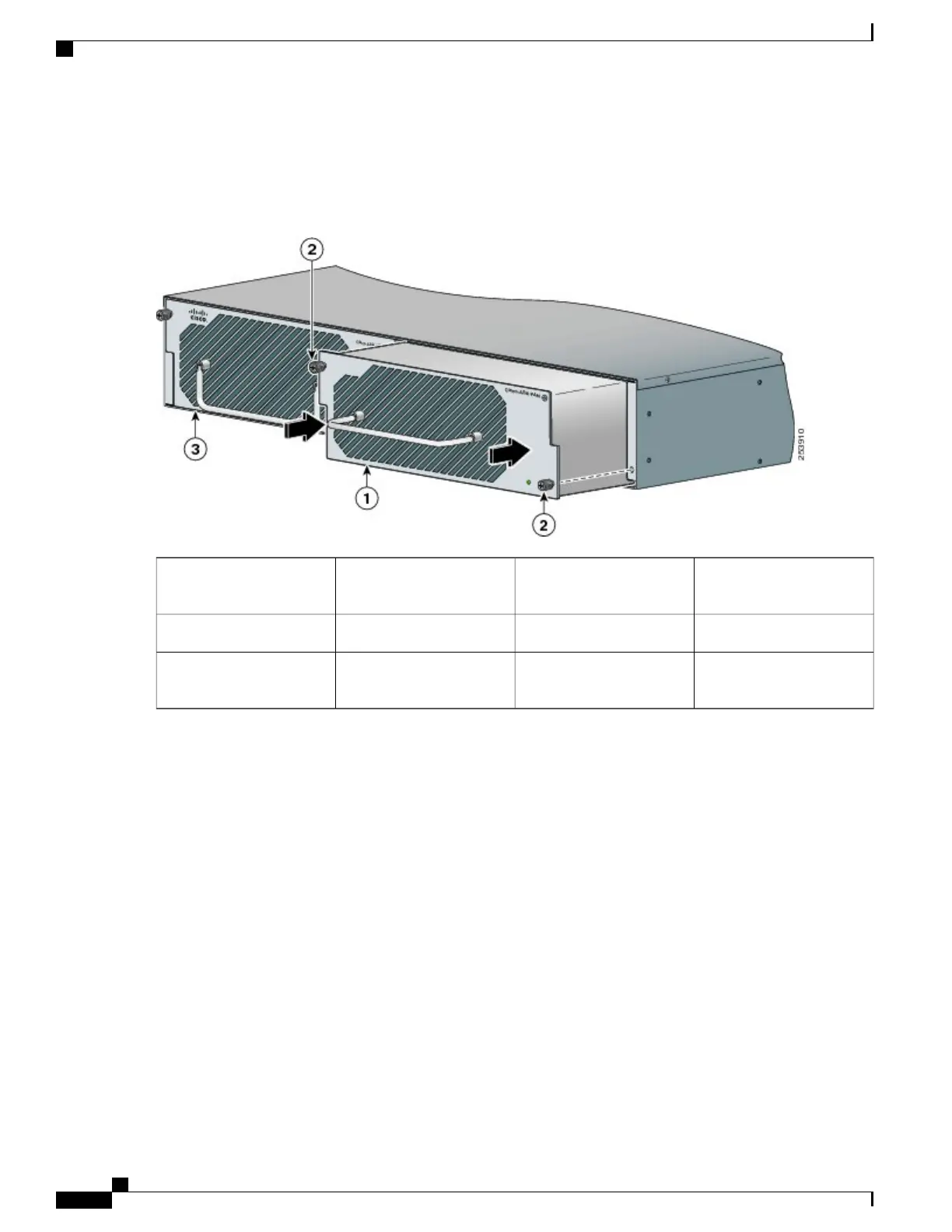

Figure 192: Cisco ASR 1013 Router DC Power Supply Grounding Stud and Cable
Flat washer4DC power supply
grounding stud with wire
1
Kepnut screw5Grounding screws2
——
DC Power supply ground
symbol
3
Shielded cables must be used to connect to the DB-25 alarm connector on both the AC and DC power
supplies in order to comply with FCC/EN55022/CISPR22 Class A emissions requirements. See the “How
Cisco ASR1000-RP Alarm Monitoring Works” section.
Note
Step 3
Attach the other end of the cable to the site’s ground connection.
Step 4
Remove the plastic cover from the terminal block.
Before you continue to install the terminal block ground wires, stop and perform Step 5. To prevent any
contact with metal lead on the ground wire and the plastic cover.
Caution
Cisco ASR 1000 Series Router Hardware Installation Guide
400
Cisco ASR 1013 Router Overview and Installation
Connecting DC Input Power to Cisco ASR 1013 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
