USB LED10
POS OC3—Port 0
This POS port is a small
form-factor pluggable
(SFP) port.
3
USB port—USB
high-speed (480 Mbps)
port used for secure key
storage, VPN credentials
storage, or bulk flash
storage of image and
configuration backup
This USB port is an A
port.
11
POS OC3—Port 1
This POS port is an SFP
port.
4
STAT—Status LED
12
AUX—RS-232 auxiliary
port
5
PWR—Power LED
13
CON—RS-232 console
port
6
——MGMT—RJ-45
10/100/1000 management
Ethernet port
7
•
IDC-4XGE
IDC-4XGE can support up to four small form-factor pluggable (SFP) transceivers, each of which supports a
1-Gigabit Ethernet connection (see the following image).

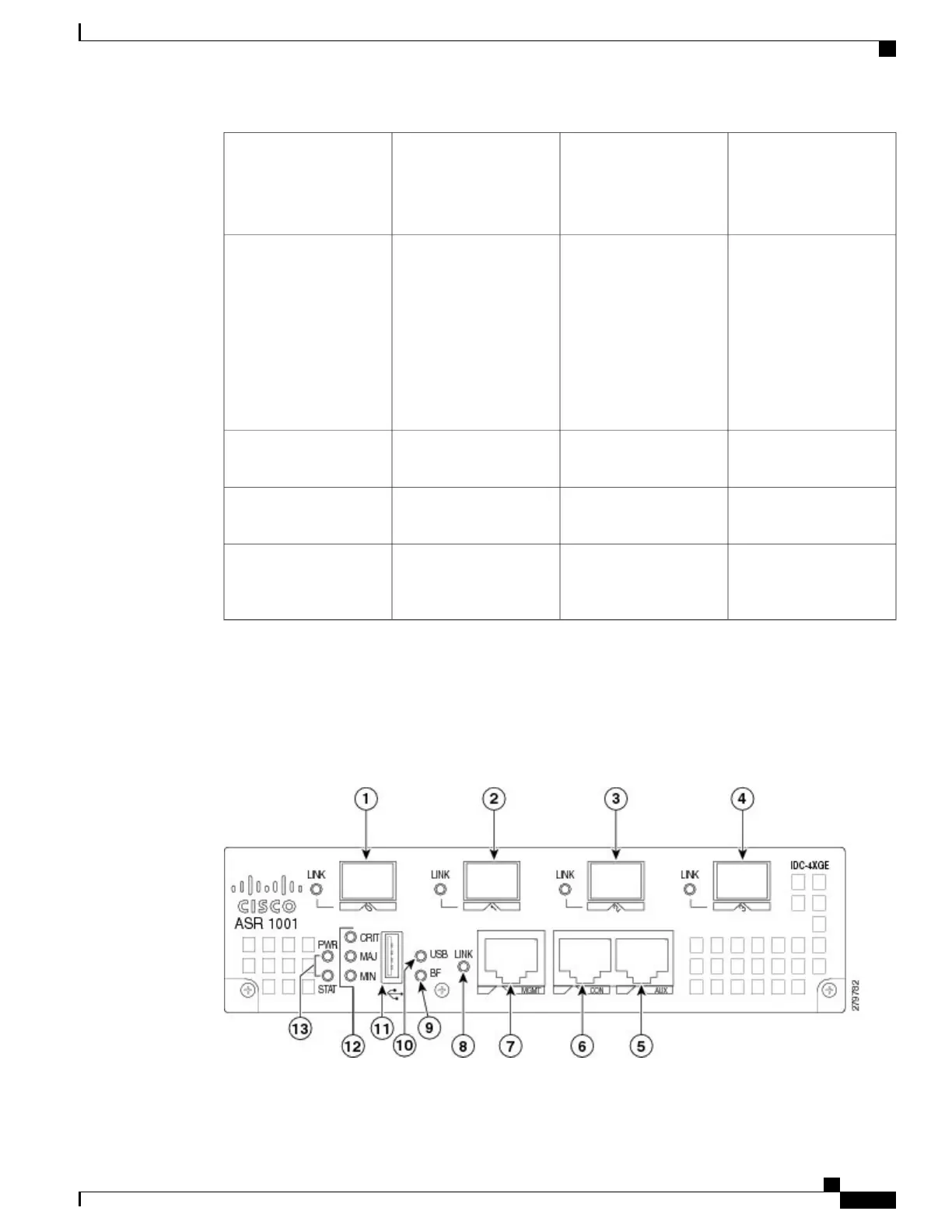

Figure 198: Cisco ASR 1001 Router with IDC-4XGE
Cisco ASR 1000 Series Router Hardware Installation Guide
411
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Router Architecture
