Cisco ASR 1002 Hardware Installation Guide

——
Positive (+) lead wire2
Step 7
Insert the exposed wire of one of the ground wire into the terminal block plug. Make sure that you cannot see any wire
lead. Only wire with insulation should extend from the terminal block.
Do not overtorque the terminal block plug captive screws. The recommended maximum torque is from 0.5
Nm (4.425 lbf in.) to 0.6 Nm (5.310 lbf in.).
Caution
Step 8
Use a ratcheting torque screwdriver to torque the terminal block plug captive screw (above the installed wire lead) to
from 0.5 Nm (4.425 lbf in. to 0.6 Nm (5.310 lbf in.) as shown in the following figure.

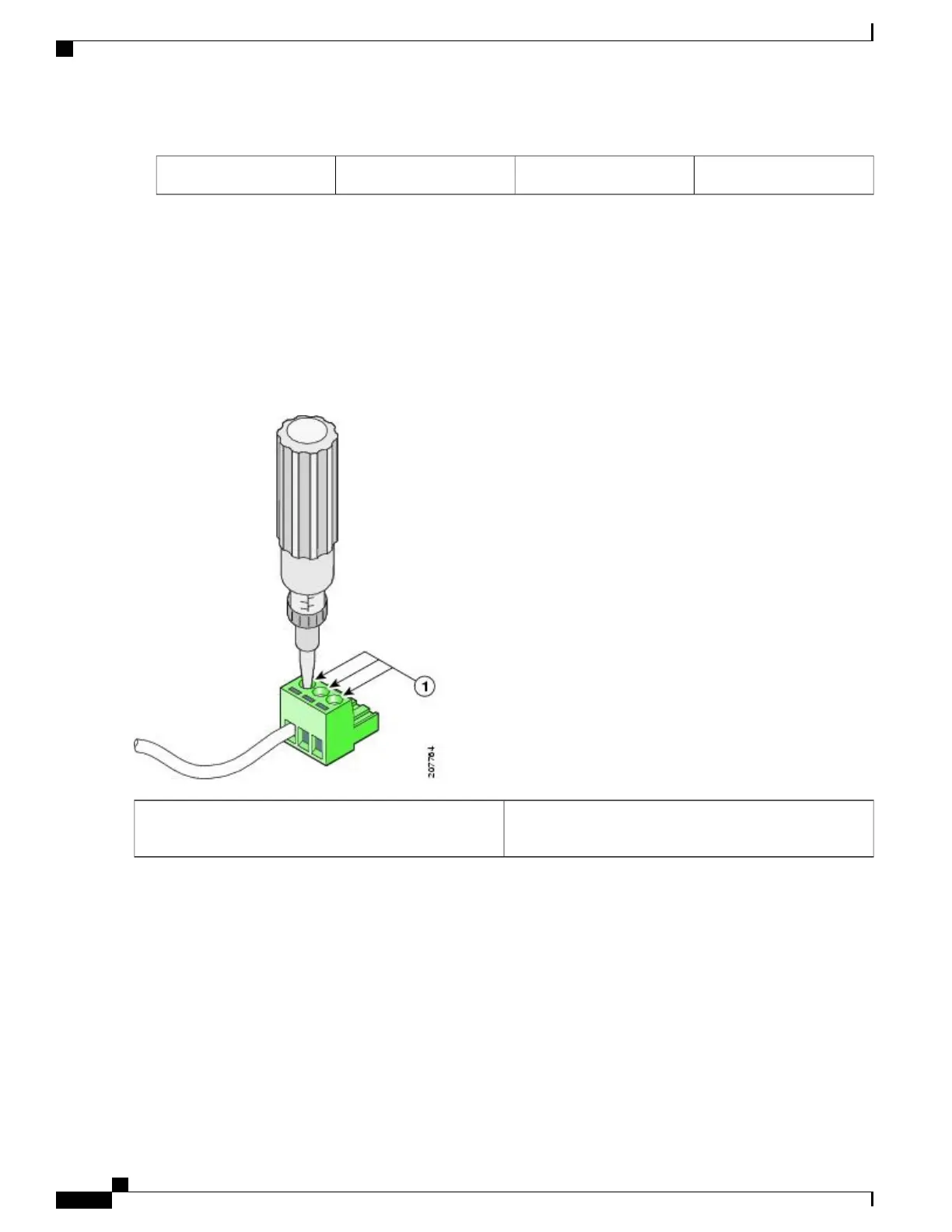

Figure 309: Torquing the DC Power Supply Terminal Block Plug Screws
Torque is from 0.5 Nm (4.425 lbf in. to 0.6 Nm (5.310 lbf
in.)
1
Cisco ASR 1000 Series Router Hardware Installation Guide
610
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing DC Input Power from the Cisco ASR 1001 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
