Cisco ASR 1002 Hardware Installation Guide

mm). Do not strip more than the recommended length of wire because doing so could leave the wire exposed from the
terminal block plug. The following figure shows a stripped DC input power source wire.

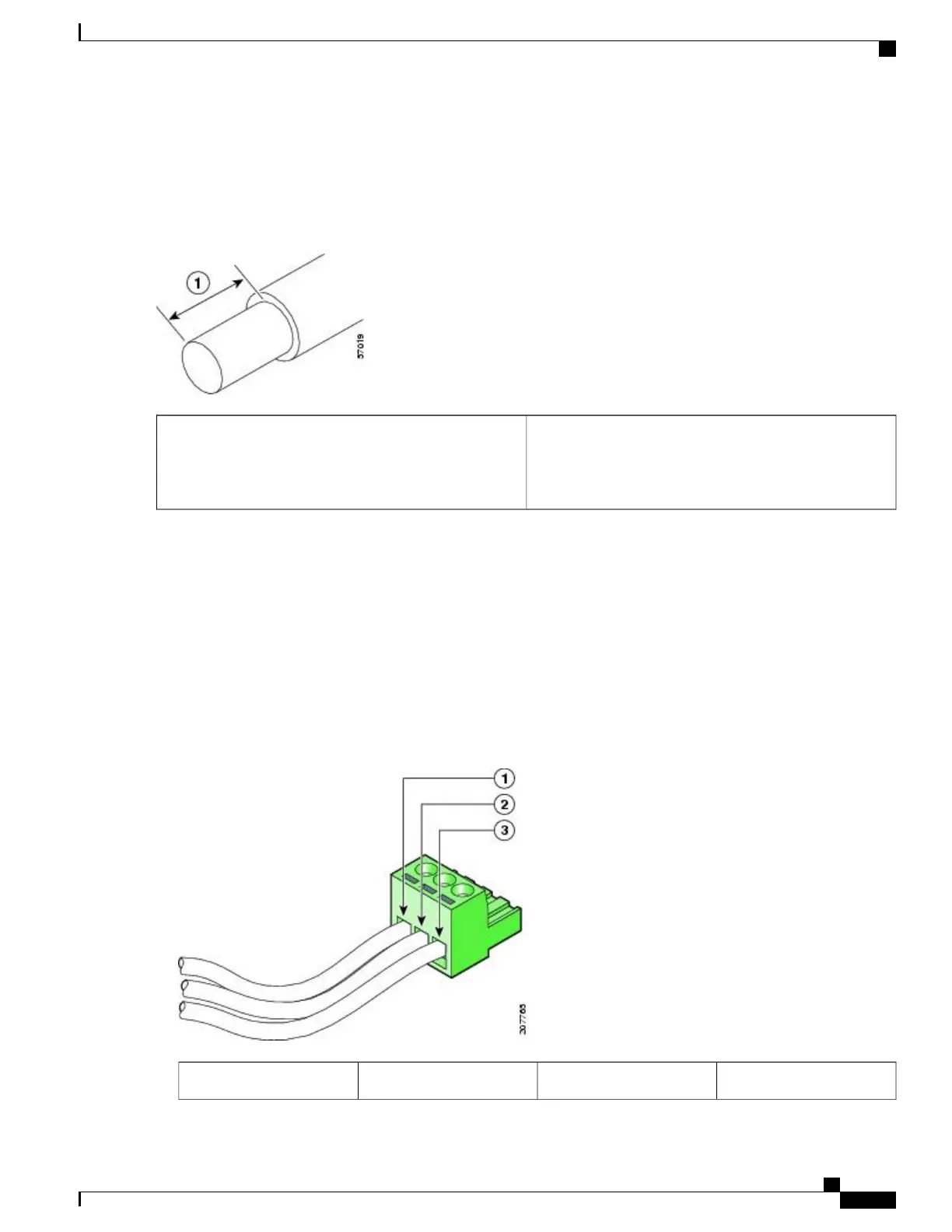

Figure 307: Stripping the DC Input Power Source Wire
0.39 inch (10 mm) is the recommended wire-strip length
for the connector plug that has raised screw holes. 0.27
inch (7 mm) is the recommended wire-strip length for the
connector plug that does not have raised screw holes.
1
An exposed wire lead from a DC input power source can conduct harmful levels of electricity. Be sure that
no exposed portion of the DC input power source wire extends from the terminal block plug. Statement 122
Warning
Step 6
Identify the positive, negative, and ground feed positions for the terminal block connection. The recommended wiring
sequence is:
a) Ground lead wire (right)
b) Positive (+) lead wire (middle)
c)
Negative (–) lead wire (left)
The following figure shows the DC power supply with lead wires.
Figure 308: DC Power Supply with Lead Wires
Ground lead wire3
Negative (–) lead wire
1
Cisco ASR 1000 Series Router Hardware Installation Guide
609
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing DC Input Power from the Cisco ASR 1001 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
