Product Manual — Doc. 9045M DM NAX® • 11

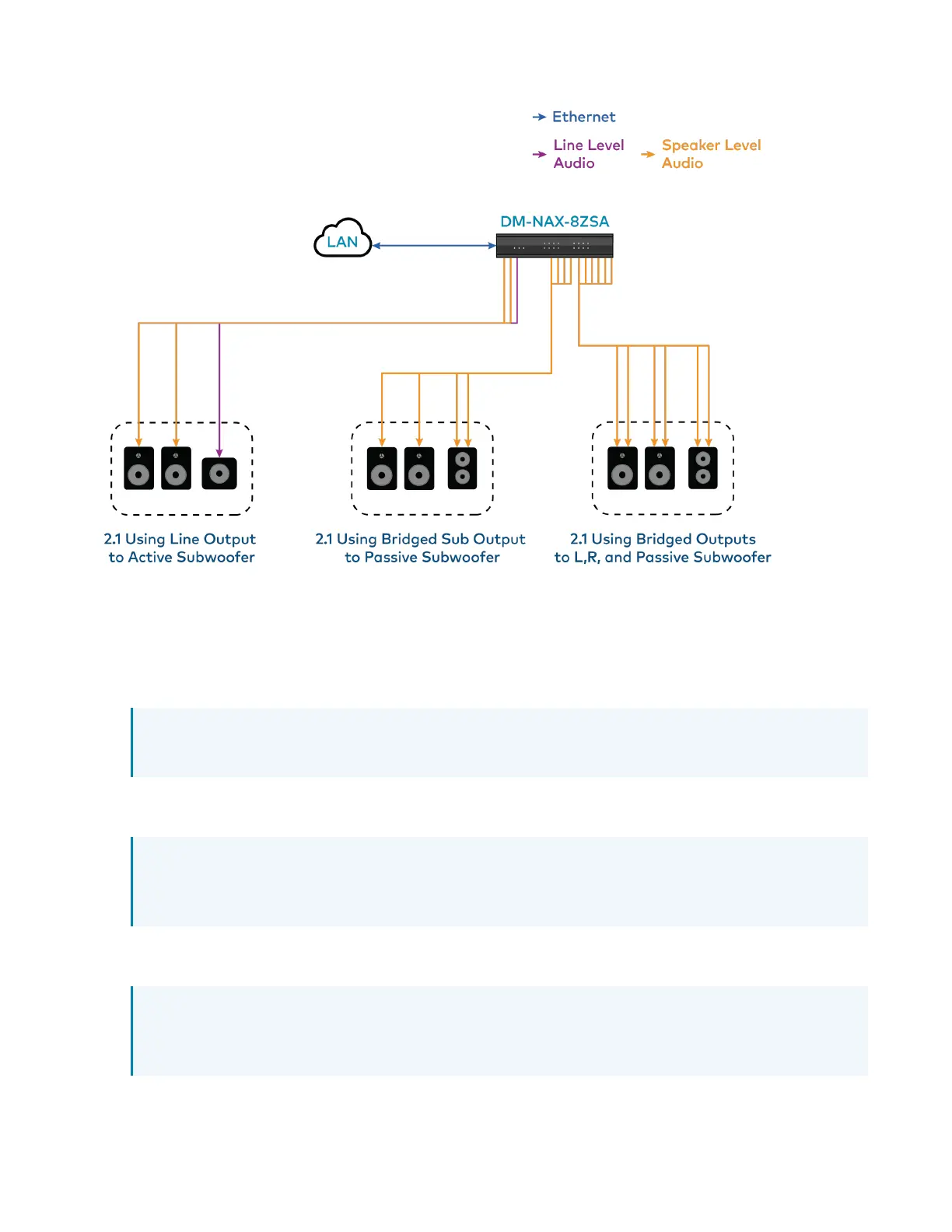

This application diagram shows different 2.1 configurations and how they affect the zone count of an
DM-NAX-8ZSA. By default, a zone comprises two speaker outputs (a left and a right).
l
The 2.1 configuration at the left of the diagram comprises two speaker outputs, with an additional
line output that feeds the subwoofer.
NOTE: This configuration is only applicable for zones with an available line output
(1 through 4).
l
The middle configuration (2.1 bridged sub) comprises four speaker outputs - two left and right and
two for the bridged sub.
NOTE: This configuration is only applicable when enough subsequently numbered zones are
available on the amplifier. For example, the 2.1 bridged sub cannot be used on zone 8 as there
is no speaker output pair 9.
l
The right configuration (bridged 2.1) comprises six speaker outputs - two for the bridged left, two
for the bridged right, and two for the bridged sub.
NOTE: This configuration is only applicable when enough subsequently numbered zones are
available on the amplifier. For example, the 2.1 bridged sub cannot be used on zone 7 or 8 as
there is no speaker output pair 9 or 10.
