Product Manual — Doc. 9045M DM NAX® • 544

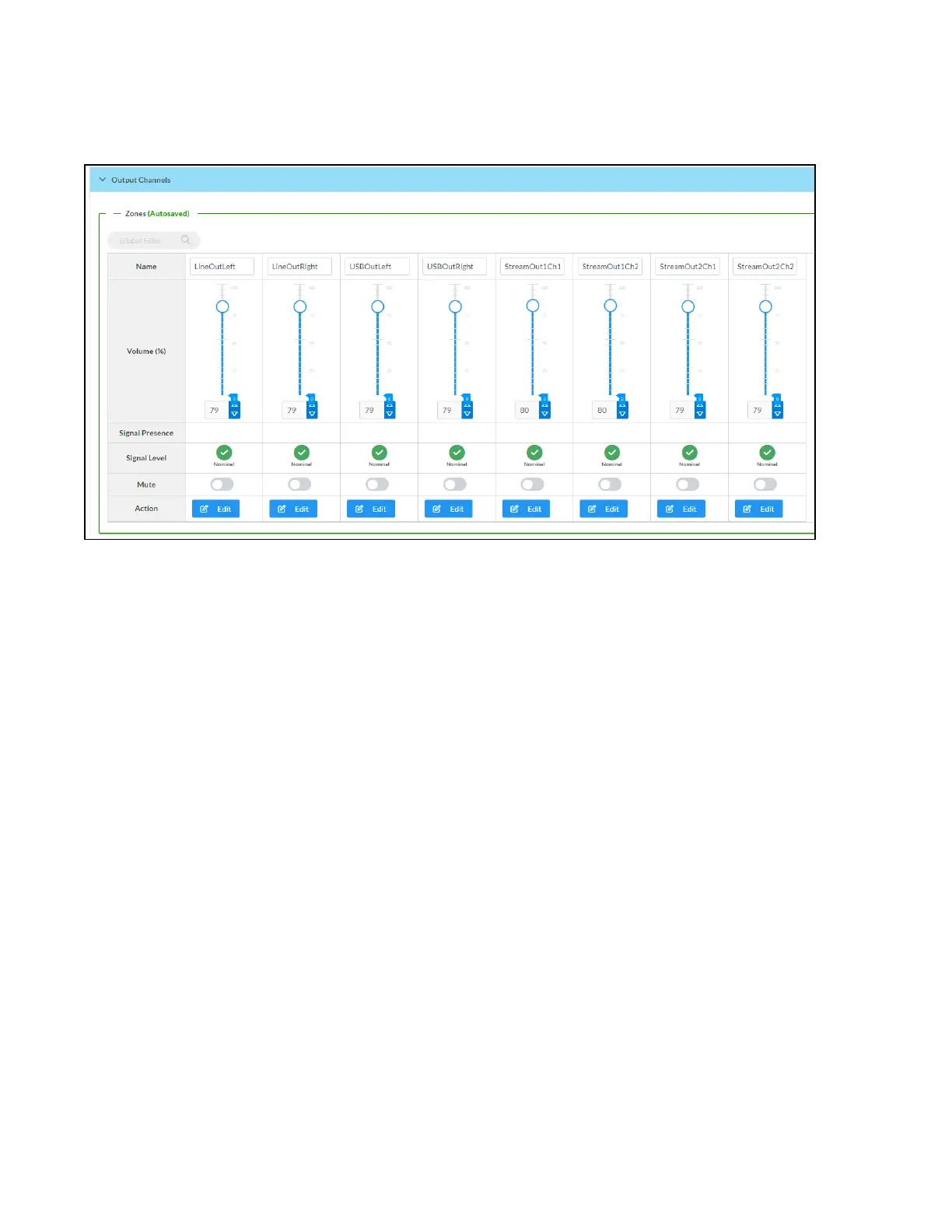

Output Channels
The Zones section contains the Volume and Mute settings for all zone outputs of the device, as well as
an Edit option for more advanced settings within each zone.
Signal Presence indicates whether or not an audio signal is detected in that zone.
Signal Level indicates if the signal is Clipping or Nominal (non-clipping).
l
Nominal: The signal level is within normal operating bounds and below the clipping threshold.
l
Clipping: The signal level is clipping or above the -3dB warning threshold and in danger of clipping.
Give each zone a friendly name using the Name column of the Zones table. If the device is paired with a
control system, these names may be overwritten by the control system's program.
To configure the zone volume, do one of the following:
l
Move the Volume slider up to increase or down to decrease the zone volume.
l
Click the % arrows to increase or decrease the zone volume. Values range from 0 to 100%,
adjustable in increments of 1%.
l
Manually enter a value in the Volume field.
To mute all audio output from a zone, click its respective Mute button. To unmute the zone, click the
Muted button.
Click Edit to view additional Zone and Output options.
Zone Settings
To configure the settings for an output channel, click the Edit button. The Edit Zone window appears.
