Equalizer Settings

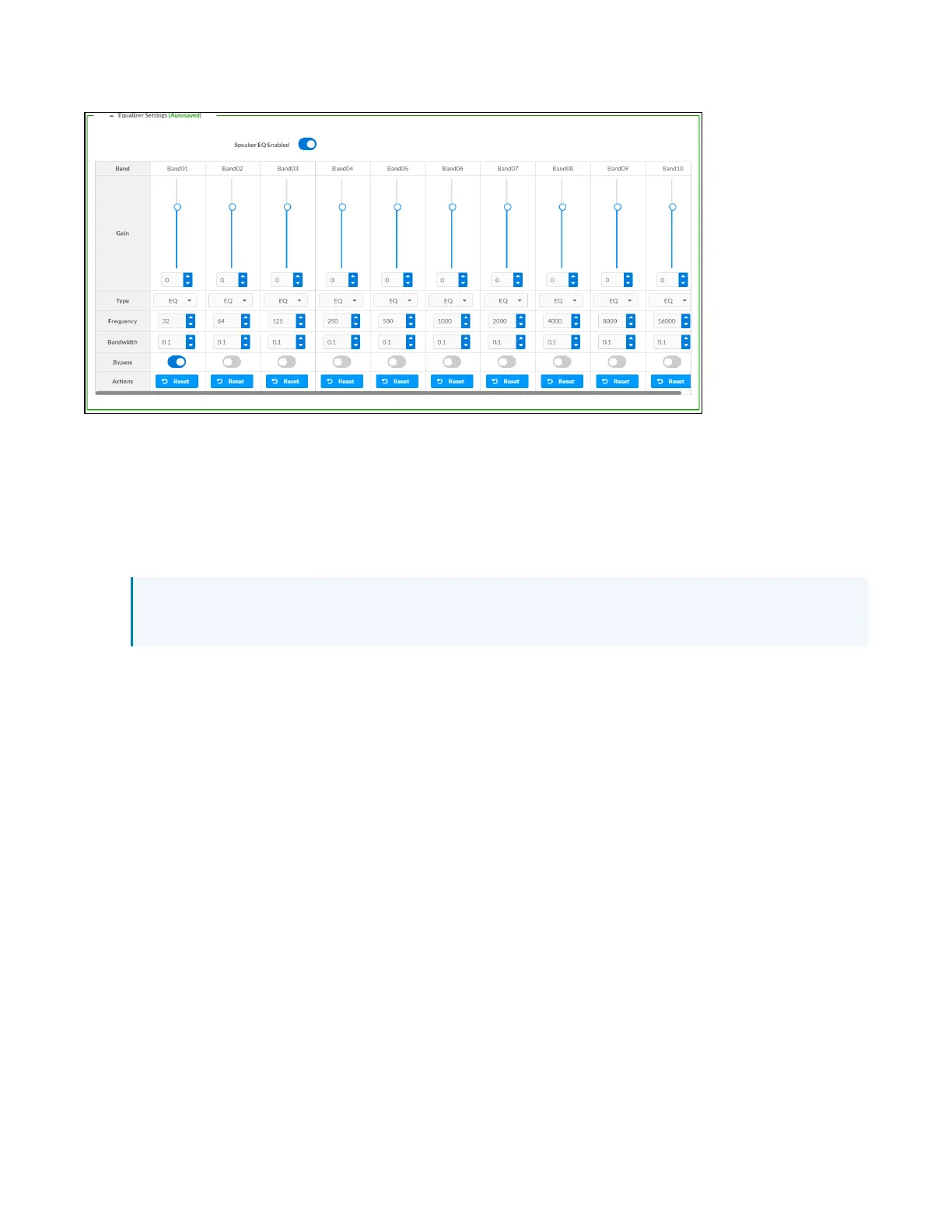

Each zone output of the DM-NAX-8ZSA has a dedicated ten-band equalizer that can be fully
customized to tune the zone output signal to the needs of an install. Each band can have a discrete gain,
filter type, center frequency, and bandwidth set, and can also be bypassed. The equalizer itself can also
be bypassed using the Speaker EQ Enabled toggle.
1. Set the Speaker EQ Enabled toggle to the right position to enable the equalizer. Set the toggle to
the left position to bypass the equalizer.
NOTE: When Speaker EQ Enabled is disabled, all equalizer bands are bypassed. This is a quick
way to perform A/B testing of the entire EQ curve.
2. With the Speaker EQ Enabled toggle in the right position, do the following to configure a given
equalizer band:
a. To set a band's gain, do one of the following:
l
Move the Gain slider up to increase or down to decrease the gain.
l
Click the arrows to increase or decrease the gain. Values range from -40dB to 20dB,
adjustable in increments of 0.1dB.
l
Manually enter a value in the Gain field.
To Next Page
