Connect the Device

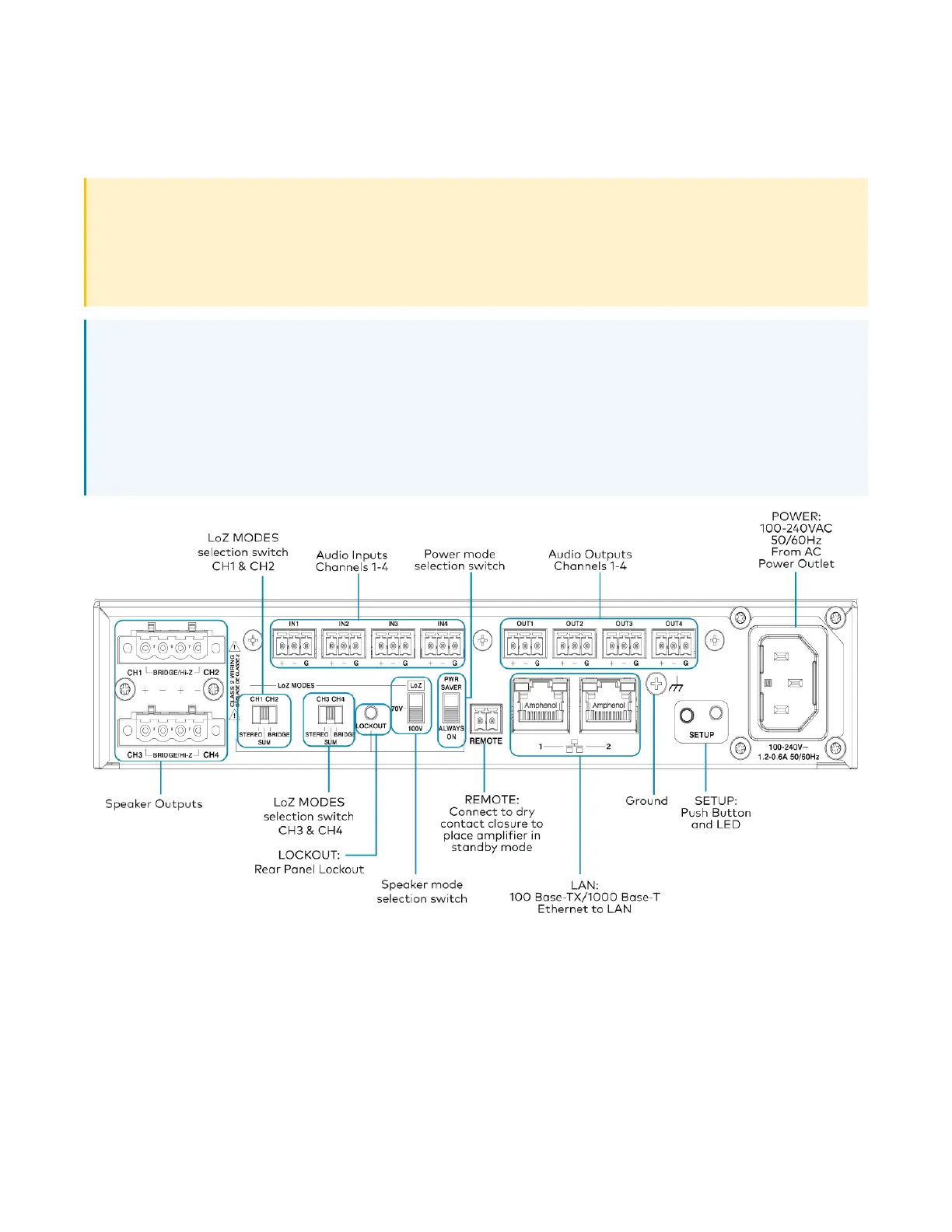

Make the necessary connections as called out in the following illustration. For details on wiring, refer to
Output Wiring Options on page 114.
CAUTION:
l
Keep the device unplugged until all of the input, network, output, and speaker wiring is
complete.
l
Check the speaker cables for shorts and frayed wiring around the speaker output connectors.
NOTES:
l
Ensure that the unit is properly grounded by connecting the chassis ground lug to an earth
ground (building steel).
l
To prevent overheating, do not operate this product in an area that exceeds the
environmental temperature range listed in the table of specifications.
l
Ensure that both the Ethernet ports are not connected to the same network or switch.
Speaker Mode Selection Switch
The DM-NAX-AMP-X300 can be configured to work with 4 Ω and 8 Ω (low impedance or Lo-Z) loads or
a distributed audio (high impedance or Hi-Z) 70/100V system.
