30 DM NAX® Product Manual Doc. 9045M

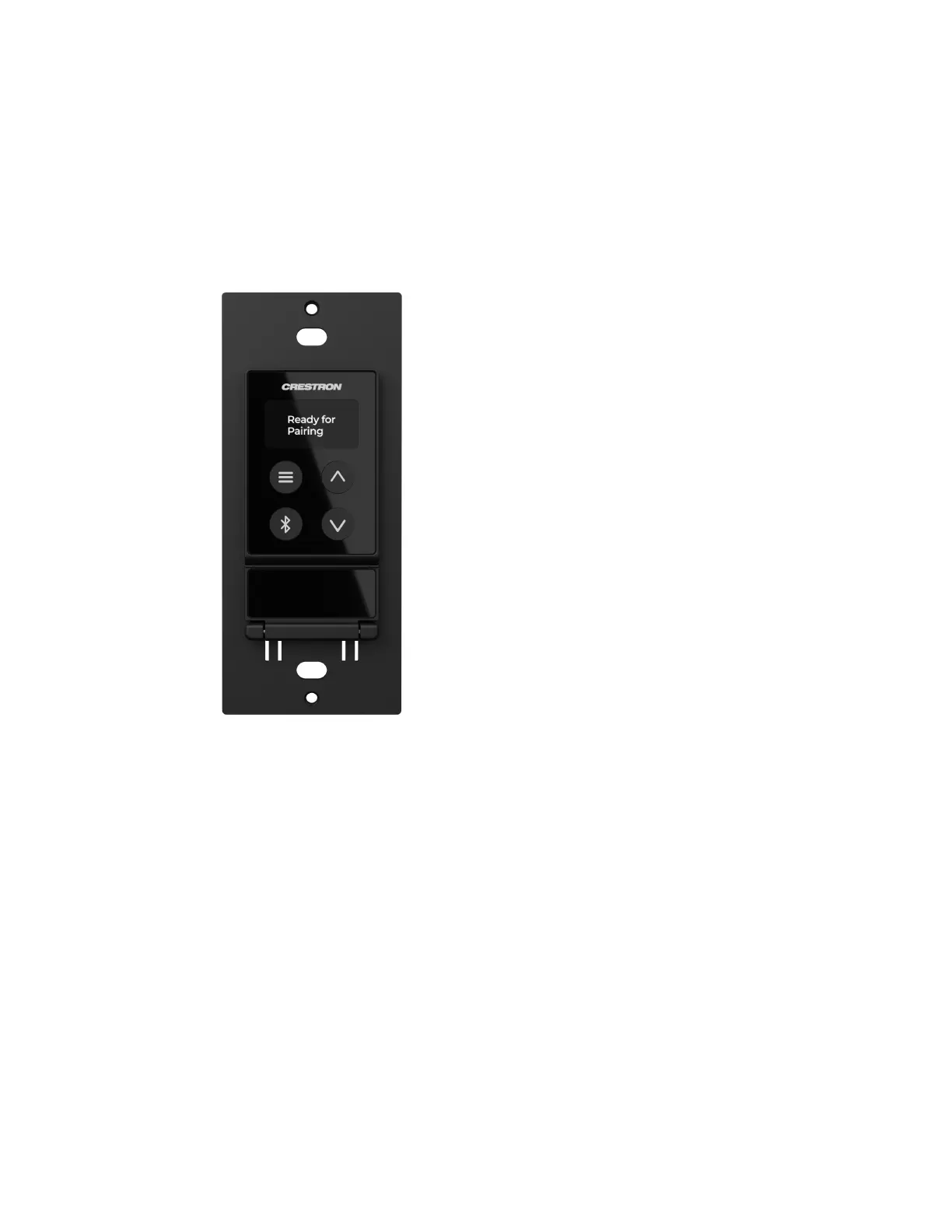

DM-NAX-BTIO-1G
The DM-NAX-BTIO-1G is a DM NAX® encoder and decoder with support for Bluetooth® wireless and
analog line-level wired audio input and output, housed in a single-gang wall plate form factor. The front
panel features an OLED display and four buttons for device pairing and menu navigation. Two 1/8 in.
(3.5 mm) TRS connectors for stereo unbalanced analog line-level audio input and output are concealed
under a front panel door. The rear panel of the wall plate features an Ethernet connection for PoE,
Audio over IP (AoIP), and control.
l
Built-in Bluetooth® wireless audio input support
l
Front panel OLED display provides metadata readout and device setup menus
l
Single-gang U.S. wall box installation
l
Power over Ethernet (PoE) network powered
l
Stereo unbalanced analog line-level audio input and output via 3.5mm TRS connectors
l
Mountable in a standard US electrical box or on a rack rail via included hardware
l
Connects directly to a managed network to route to or from other DM NAX® and DM NVX®
devices
l
Interoperable with Dante® audio networking devices via AES67 compatibility
l
Streamlined configuration through front panel push buttons and a web interface
l
Seamless Crestron system integration with SIMPL Windows programming
