233 • DM NAX® Product Manual — Doc. 9045M

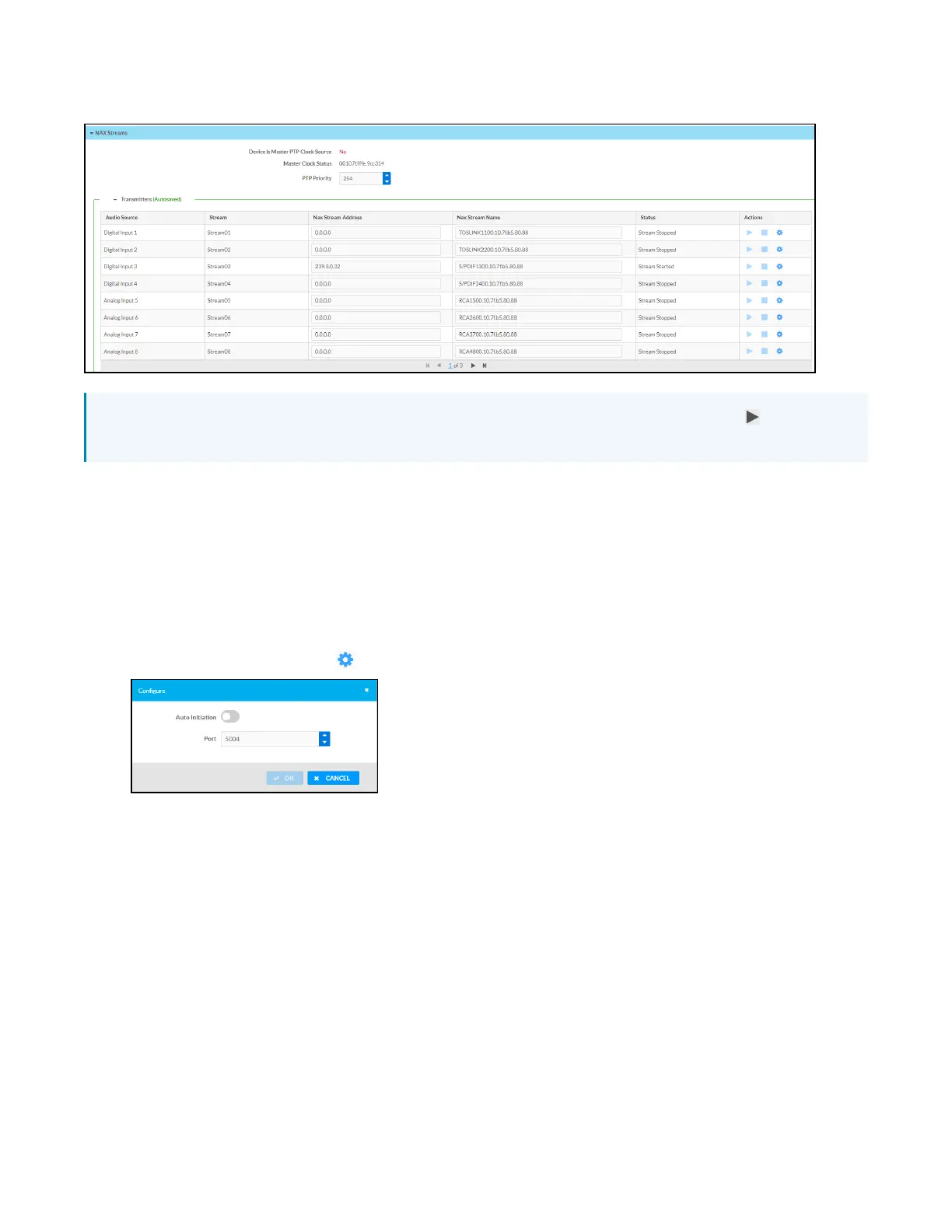

Configure Transmitters
NOTE: To configure transmitters not shown on the current page of the table, click the icon to
display the next page of eight transmitters.
To configure a DM NAX transmit stream, do the following.
1. Enter a valid multicast address in the NAX Stream Address field.
2. Enter a name in the NAX Stream Name field by which the stream can be identified. This stream
name is associated with the DMNAX stream's multicast address by other DMNAX or AES67
devices, like a device hostname that resolves to a given IPaddress.
3. Status indicates whether a stream is transmitting or not. When the stream has started or
stopped, the Status column will update accordingly.
4.
Click the configure button ( ) in the Actions column. The Configure dialog appears:
5. Set the Auto Initiation toggle to the right position to enable auto initiation. Set the toggle to the
left position to disable auto initiation.
l
If Auto Initiation is enabled for a given stream, the stream will begin transmitting
automatically and will be available as a multicast stream on your network at the specified
multicast address.
l
If Auto Initiation is disabled for the input, the stream will not begin transmitting until it is
manually initiated.
6. To set the port number, do one of the following:
l
Click the arrows to increase or decrease the port number by increments of 1.
l
Manually enter a port number in the Port field. The default port number for DMNAX
streams is 5004.
7. Click OK to save or click Cancel to cancel the changes.
