Inputs
The Inputs section is used to configure the Name, Compensation, and Mute attributes of the available
analog and digital inputs on the DM-NAX-4ZSA-50.
A total of 9 inputs are available on the DM-NAX-4ZSA-50, including the 4 physical input connectors on
the device's rear panel and the 5 internal media players used for media streaming services. Only the
attributes of the 4 physical inputs can be adjusted in the Inputs section.

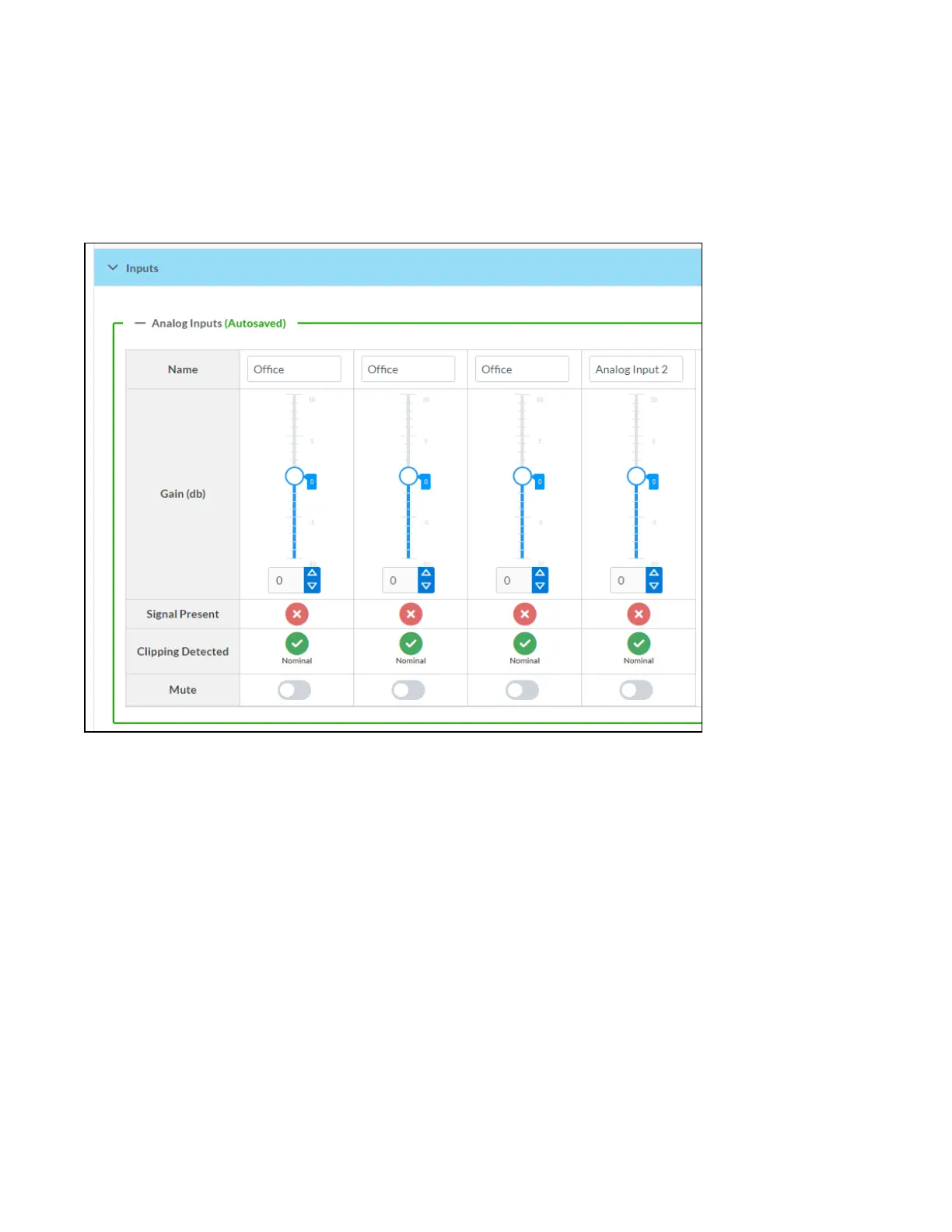

Configure Inputs
1. If needed, enter a friendly name for each input in its Name field.
2. To set a level compensation adjustment for a given input, do one of the following:
l
Move the Gain slider up to increase or down to decrease the level compensation.
Compensation increases or decreases the level of the incoming audio signal on any of the
physical inputs on the device's rear panel.
l
Click the db arrows to increase or decrease the compensation. Values range from -10dB to
10dB, adjustable in increments of 1dB.
l
Manually enter a value in the Gain field.
3. To mute the signal from the corresponding input, click the Mute button. To disable the mute, click
the Muted button. By default, Mute is disabled.
Monitor the device's input signals using the text indicators in the Signal Present and Clipping Detected
columns:
To Next Page
