Product Manual Doc. 9045M DM NAX® 23
Rear Panel

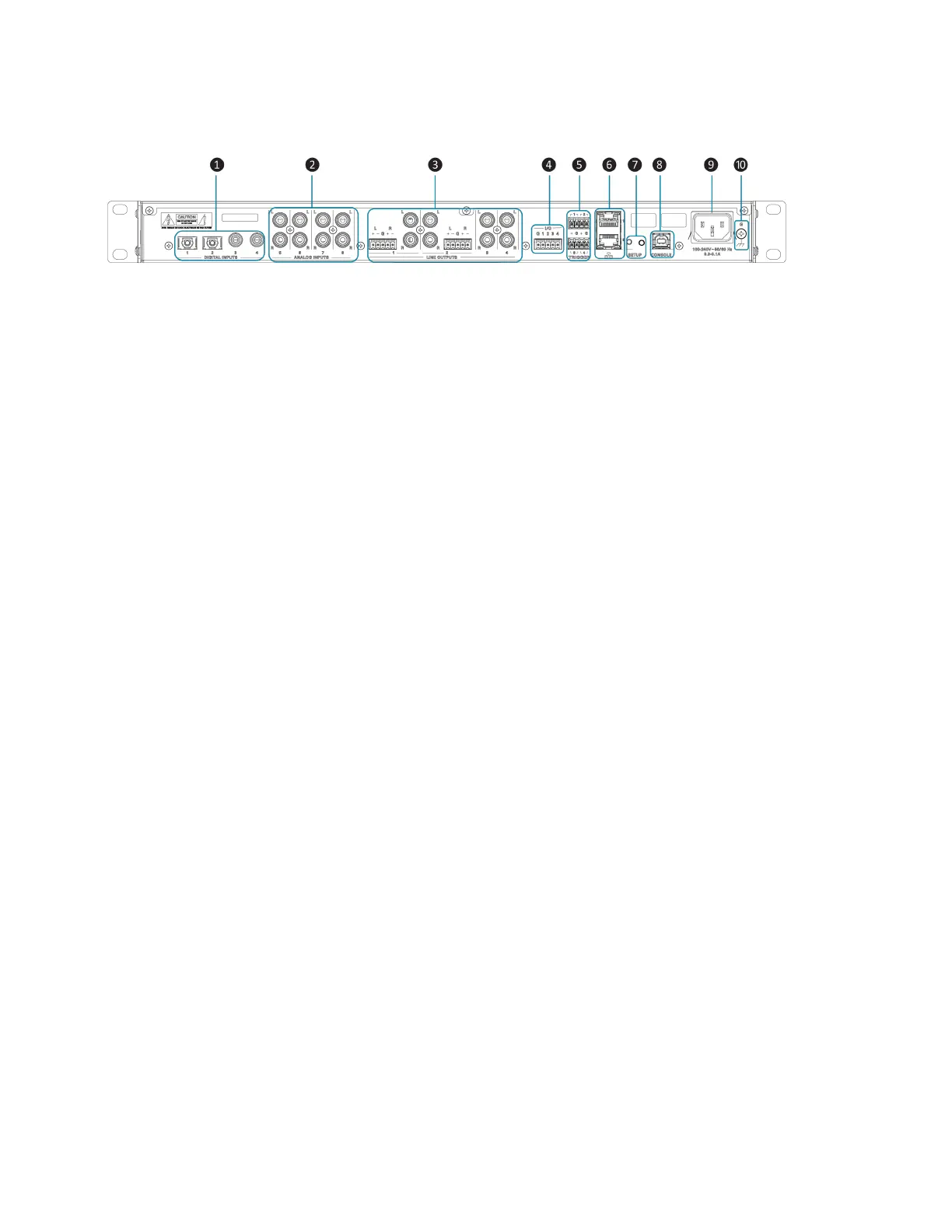

The following illustration shows the rear panel of the DM-NAX-4ZSP.
DIGITAL INPUTS: (2) JIS F05 female TOSLINK® optical fiber connectors, S/PDIF
optical digital audio inputs;
(2) RCA female; S/PDIF coaxial digital audio inputs; Input Impedance: 75 Ω
ANALOG INPUTS: (8) RCA female comprising (4) unbalanced stereo line-level audio
inputs; Input Impedance: 10000 Ω;
Maximum Input Level: 2 Vrms
LINE OUTPUTS: (4) RCA connectors, female; Comprise (4) unbalanced line-level
stereo audio outputs;
Output Impedance: 100 Ω; Maximum Output Level: 2 Vrms;
(2) 5-pin 3.5mm detachable terminal blocks; Balanced stereo line-level audio
outputs (mirror corresponding unbalanced RCA output pairs 1 2);
Output Impedance: 150 Ω; Maximum Output Level: 4 Vrms
I/O Port: (1) single 5-pin Phoenix block that comprises four I/O ports, and a shared
ground
TRIGGER: (2) 4-pin Phoenix connectors for all outputs;
The triggers correspond to the respective LINE OUTPUTS 1-4 and will send a +10V
signal to an external amplifier whenever a signal is routed to the respective line
output.
Ethernet 1: (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Green LED indicates Ethernet link status;
Flashing amber LED indicates Ethernet activity
Ethernet 2: (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Green LED indicates Ethernet link status;
Flashing amber LED indicates Ethernet activity
