291 DM NAX® Product Manual Doc. 9045M
l
Signal Presence indicates whether or not a signal is detected in that zone.
l
Clipping Detected indicates if the signal is Clipping or Nominal (non-clipping).
DM NAX Streams
Each local input of the DM-NAX-4ZSA-50 can be made available as a DMNAX audio-over-IP stream.
This includes the four physical inputs on the rear panel of the device and the five internal media players.

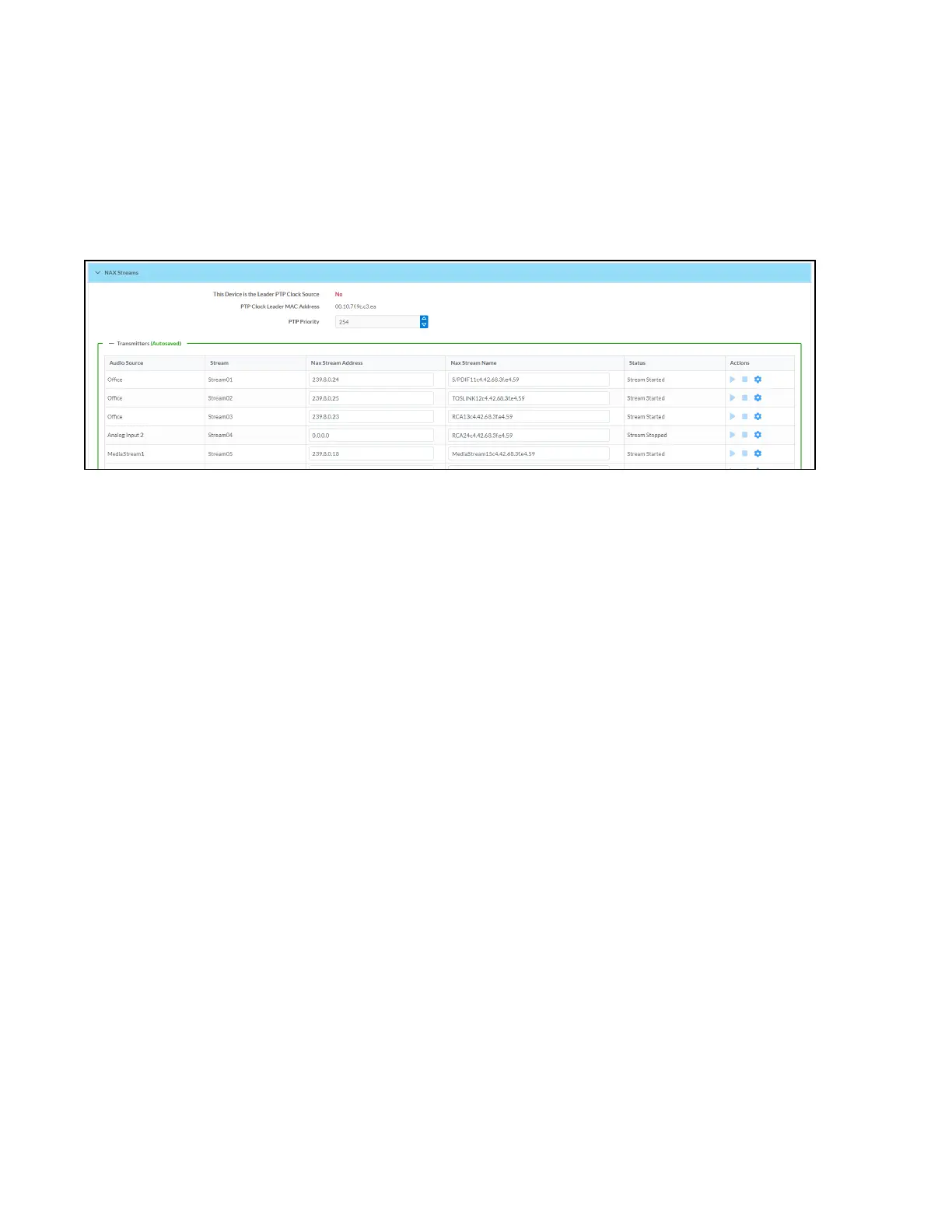

Click NAXStreams to expand the tab and display the following information.
l
Device is Master PTP Clock Source indicates whether the DMNAX device's PTP clock is the master
clock on the network. Yes will be displayed in green when the local DM-NAX-4ZSA-50's clock is the
PTP master clock and No will be displayed in red when another PTP clock on the network is
operating as the master clock.
l
Master Clock Status displays the Master Clock ID of the device on the network that is currently
acting as the master clock.
l
PTP Priority: This sets the priority of the local DMNAX device's PTP clock relative to other clocks
on the network. The default setting is 254 (one increment higher than the lowest possible value)
so that the DM-NAX-4ZSA-50 will only operate as clock master if no other PTP master is present
on the network. Valid values range from 1 to 255.
