Configure Inputs

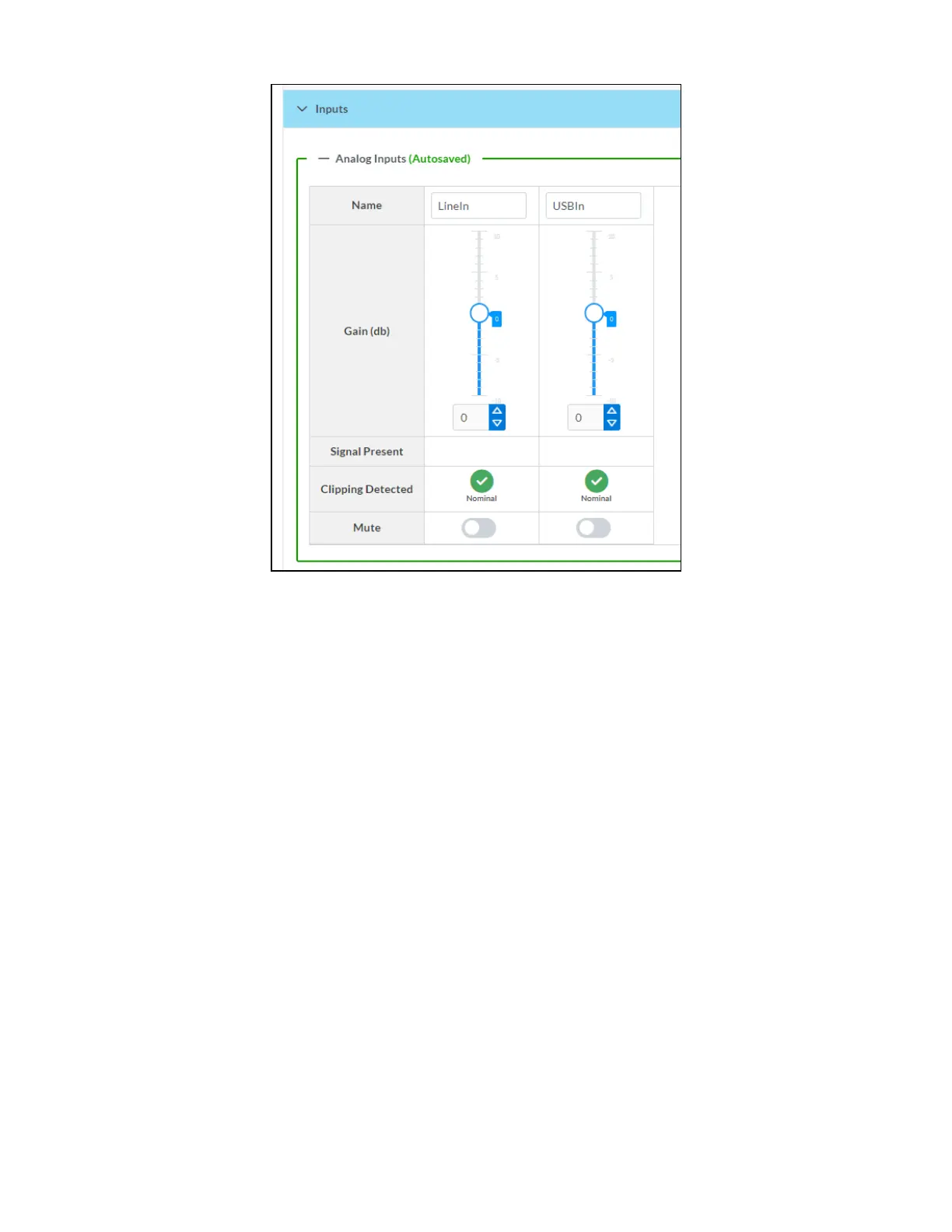

1. If needed, enter a friendly name for each input in its Name field.
2. To set a level compensation adjustment for a given input, do one of the following:
l
Move the Compensation slider up to increase or down to decrease the level compensation.
Compensation increases or decreases the level of the incoming audio signal on any of the
physical inputs on the device's rear panel.
l
Click the db arrows to increase or decrease the compensation. Values range from -10dB to
10dB, adjustable in increments of 1dB.
l
Manually enter a value in the Compensation field.
3. To mute the signal from the corresponding input, set the Mute toggle to the right. To disable the
mute, set the Mute toggle to the left. By default, Mute is disabled.
Monitor the device's input signals using the text indicators in the Signal Present and Clipping Detected
columns:
l
Signal Presence indicates whether or not a signal is detected in that zone.
l
Clipping Detected indicates if the signal is Clipping or Nominal (non-clipping).
NAXStreams
The two local inputs of the DM-NAX-AUD-USB can be made available as DMNAX audio-over-IP
streams.
Click NAXStreams to expand the tab and display the following information.
