82 • DM NAX® Product Manual — Doc. 9045M
Install the Device
Refer to the Safety Instructions (Doc. 6607) prior to installation.
The device can be placed on a table or installed in a rack.
Place on a Table
Attach the four adhesive feet to the bottom of the device. Place the device on a table or stack on top of
another device.
Rack Installation
This device occupies 1/2 RU of rack space.

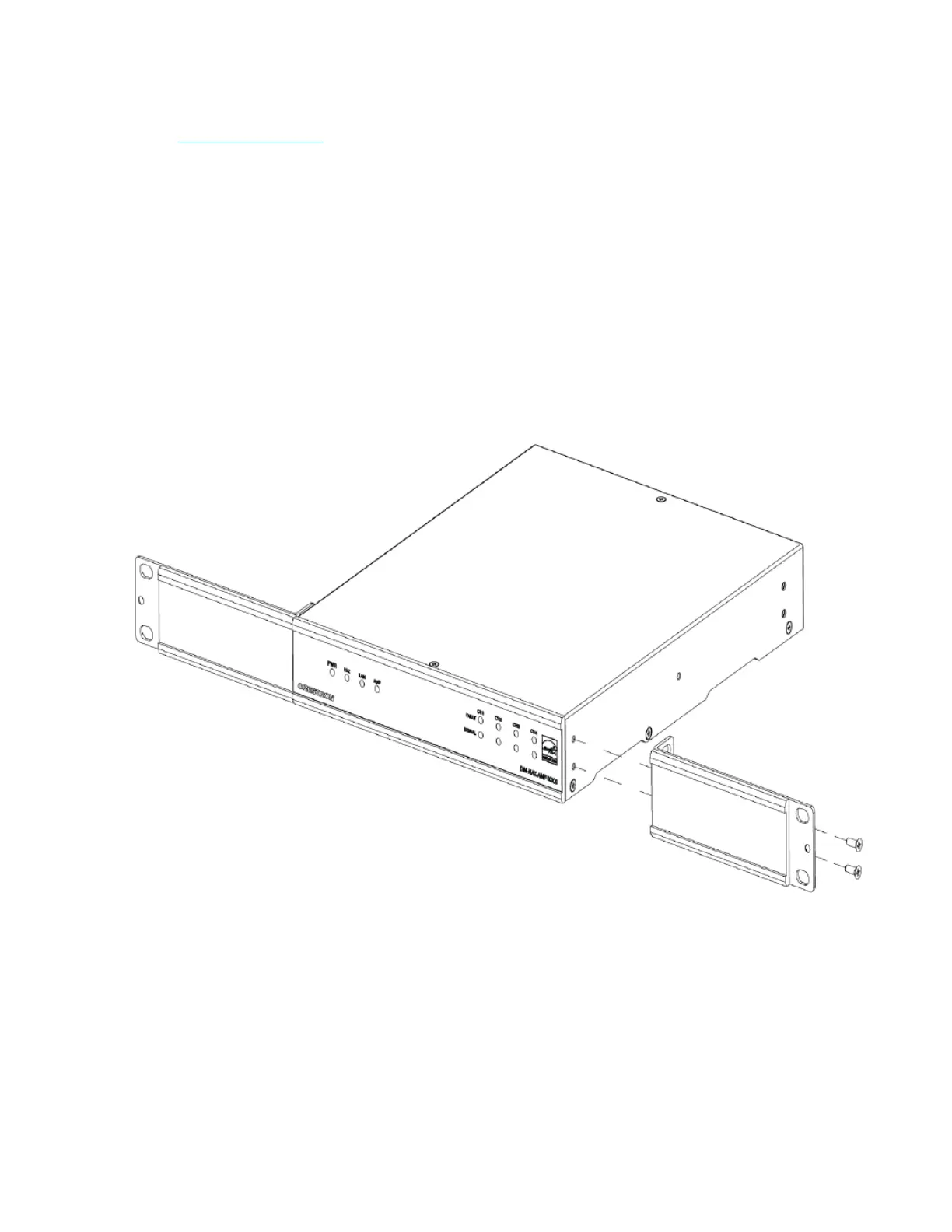

To install the included rack ears:
1. Use a #1 Phillips screwdriver and the included 6-32 5/16in. Phillips screws to attach the included
rack ears to the device.
2. Mount the device into the rack using four rack mounting screws (not included).
Double Mount
To rack-mount two Crestron 1/2 RU units together:
To Next Page
