Product Manual — Doc. 9045M DM NAX® • 616
NOTE: By default, the host name of the DM-NAX-BTIO-1G consists of the model name followed by
the MAC address of the device. For example, DM-NAX-BTIO-1G-00107FB58088.

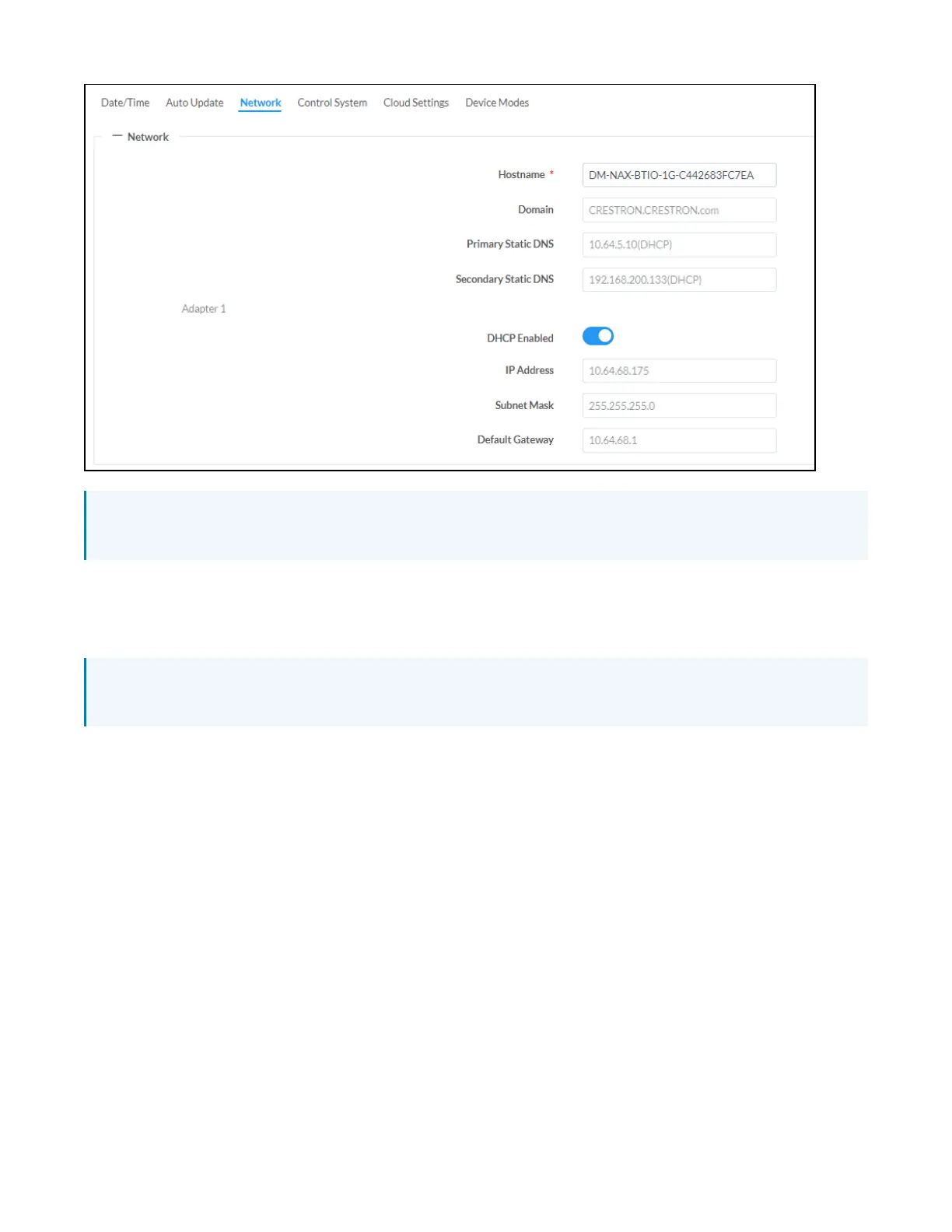

Adapter 1
The Adapter 1 subheading contains settings for DHCP, IP Address, Subnet Mask, and Default Gateway
of Ethernet adapter 1 on the rear panel of the device.
NOTE: DMNAX devices' internal processes use IP addresses in the 10.10.10.
xxx
range. This IP range
should be avoided when addressing DMNAX devices to prevent conflicts.
Set the DHCP toggle to enabled (right) or disabled (left) to specify whether the IP address of the
DM-NAX-BTIO-1G is to be assigned by a DHCP (Dynamic Host Configuration Protocol) server.
l
Enabled: When DHCP is enabled (default setting), the IP address of the DM-NAX-BTIO-1G is
automatically assigned by a DHCP server on the local area network (LAN).
l
Disabled:When DHCP is disabled, manually enter information in the following fields:
o
Primary Static DNS: Enter a primary DNS IP address.
o
Secondary Static DNS: Enter a secondary DNS IP address.
o
IP Address: Enter a unique IP address for the DM-NAX-BTIO-1G.
o
Subnet Mask: Enter the subnet mask that is set on the network.
o
Default Gateway: Enter the IP address that is to be used as the network’s gateway.
To save any new network entries, click Save Changes.
