134 • DM NAX® Product Manual — Doc. 9045M

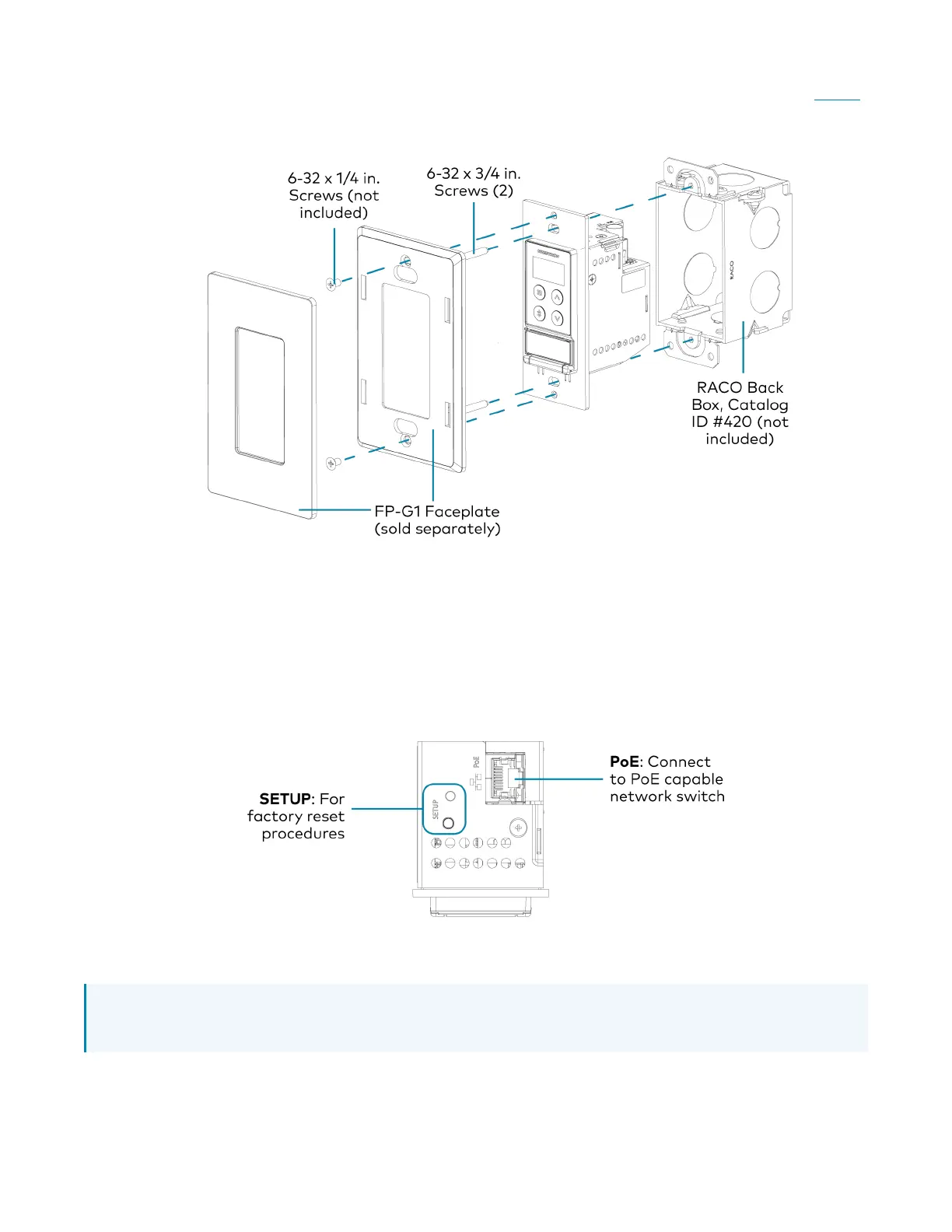

2. Using a Phillips screwdriver and two 6-32 x 1/4 in., flat head screws (not included), attach a FP-G1
decorator style faceplate (sold separately) to the wall plate.
Connect the Device
Make connections to the front and top panels of the DM-NAX-BTIO-1G as described below.
Top Panel
NOTE: PoE is a PoE powered device (PD) port. In order for the port to receive PoE, it must be
connected to a PoE compliant Ethernet switch.
Connect a PoE capable network switch to the PoE port.
